A quick learner from New Jersey says:
November 23, 2021

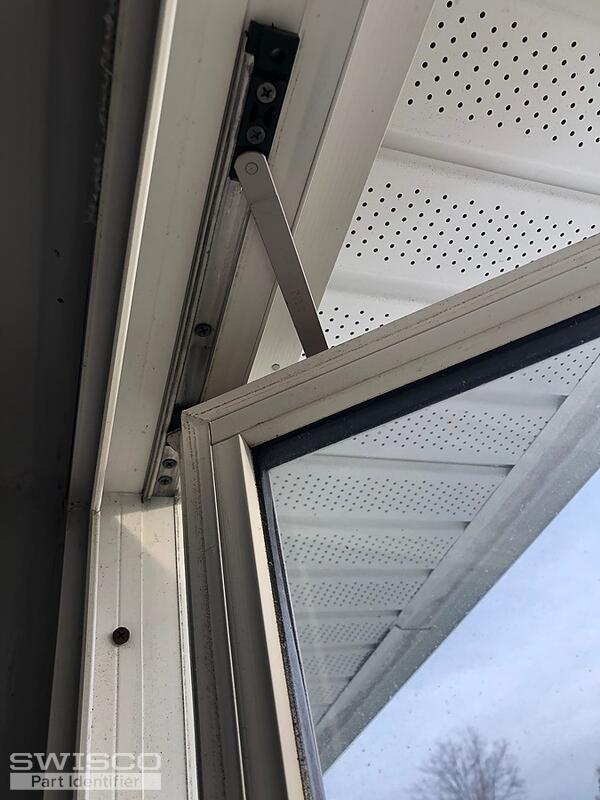

I need to replace hardware a right hand casement window (as viewed from inside). I have attach a photo of the old but functional left hand window operator, which is stamped "Thuth 31272". I need a complete operator for the right side window. I also need a sash lock, which appears to be # 38-091 from your parts menu, and a 34.9" 3-cone tie bar, (3) adjustable keepers " 38-130 ?? and(3) adjustable keepers " 38-131 ?? for the left window (photo attached). I believe this parts listing will work and will place my order if you think I am on the right track.
Thumbnail of the uploaded file named IMG_0560.jpeg
Thumbnail of the uploaded file named IMG_0628.jpeg
Thumbnail of the uploaded file named IMG_0629.jpeg
Thumbnail of the uploaded file named IMG_0630.jpeg
Thumbnail of the uploaded file named IMG_0631.jpeg
Profile picture of Casey
Casey from SWISCO responded:
November 30, 2021

Hello,

I agree with the parts that you were able to identify so far. As for your operator, take a look and compare the 39-089 to your assembly, as well as the 36-048 hinge set if needed. As for the tie bar, it sounds like you're referring to the 38-916 . Just make sure that the specifications match yours exactly. Thank you!

%alt%
Multi-Point Sash Lock LH, 24 Series
38-091
$27.37
%alt%
Multi-Point Sash Lock RH, 24 Series
38-092
$27.37
%alt%
Truth Maxim Adjustable Keeper
38-130
$4.70
%alt%
Truth Maxim Adjustable Keeper
38-131
$4.70
%alt%
Window Dyad Crank, 5"
39-089
$36.85
%alt%
Window Dyad Crank, 5"
39-090
$36.85
%alt%
34.9" Tie Bar, 3 Cone Roller
38-916
$15.80
%alt%
2-Bar Hinge Set, 10"
36-048
$17.47
