casement window parts needed

Quick Learner from Nevada City CA
Apr 21, 2023 10:40 am
i believe these are the original windows and the house was built in the early 80s near sacramento california. the interiors are wood and the exterior seems to be clad with vinyl.

i will be so appreciative if you can help me find the handle and other parts! thanks.
A45C0EEA-6E14-4CD0-AAFD-477E03A4BB95_1_105_c 3DACC777-45A9-4FB2-A45A-CFF89026872B_1_105_c
2 user uploaded images
3 Replies
Casey
Casey from SWISCO
Apr 24, 2023 12:58 pm
SWISCO
EXPERT

Hello,

Your casement lock resembles the Andersen 38-145 and 38-146, which use the 39-290 lock bezel, 39-291 handle, and 39-418 keeper. Take a look and compare the specifications shown on our product pages to your hardware.

There's a good chance that we can supply the operator parts that you need as well but we would need to see the entire assembly, including the rest of the arm that attaches to the window sash, to compare to our inventory. Thank you!

Quick Learner from Nevada City CA
May 5, 2023 9:39 am

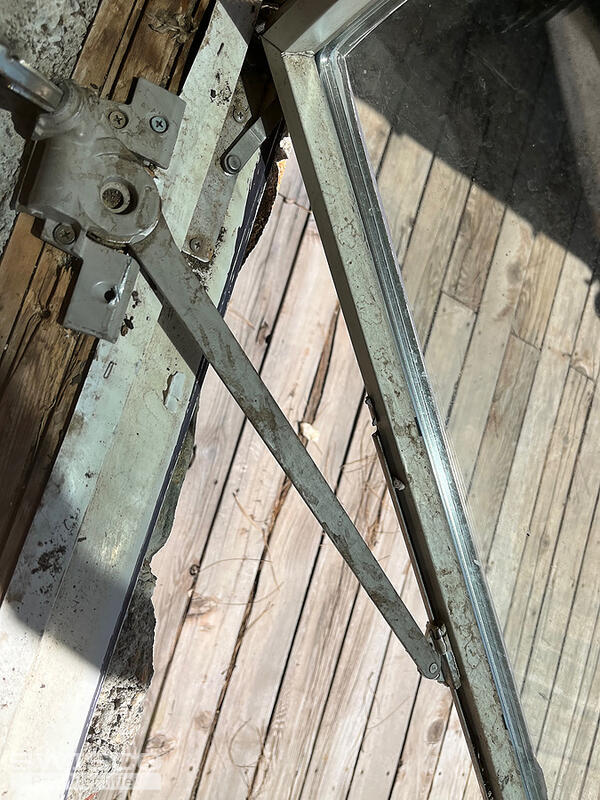

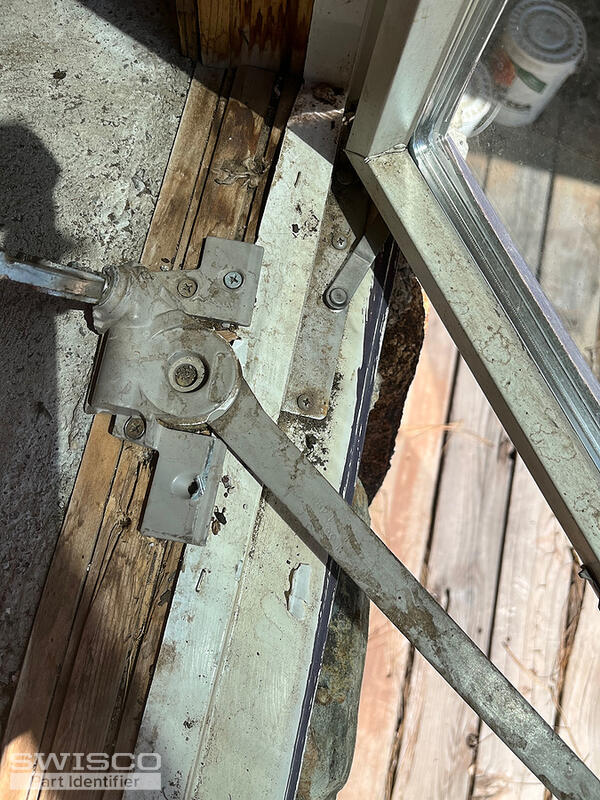

hi - thanks for the reply! i'll attach more photos. ideally i'd like to be able to get all the missing parts including wood trim and screens.
5CAF38C9-41A1-4BA2-A010-090D5A01E741_1_102_o IMG_2667 IMG_2666 (1)
3 user uploaded images
Dave Sr.
Dave Sr. from SWISCO
May 8, 2023 9:29 am
SWISCO
EXPERT

Take a look and compare your operator with the 39-332, along with the 39-267 handle and 39-152 cover. Also, see the 39-362 adapter plate. Being that your window is from the early 1980'S you might need this adapter plate to attach the new operator to the window sill. Review the information shown on the product pages of the related parts shown on this page to see how they compare to yours.
