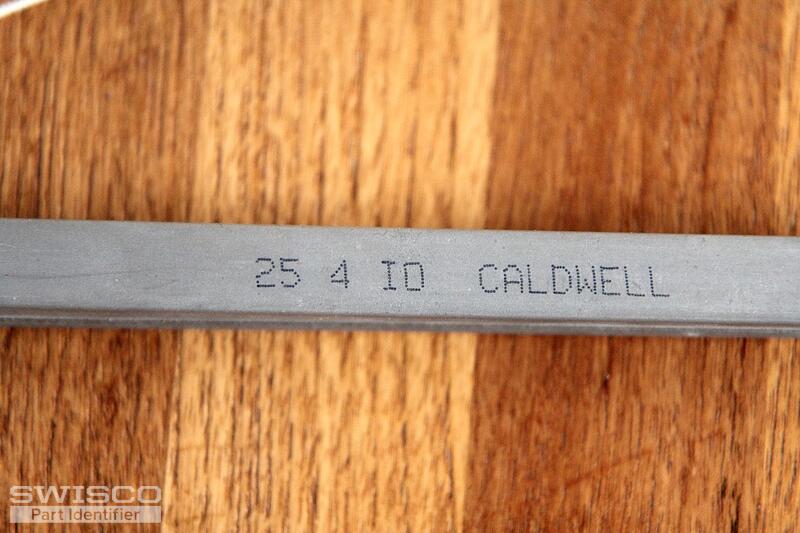

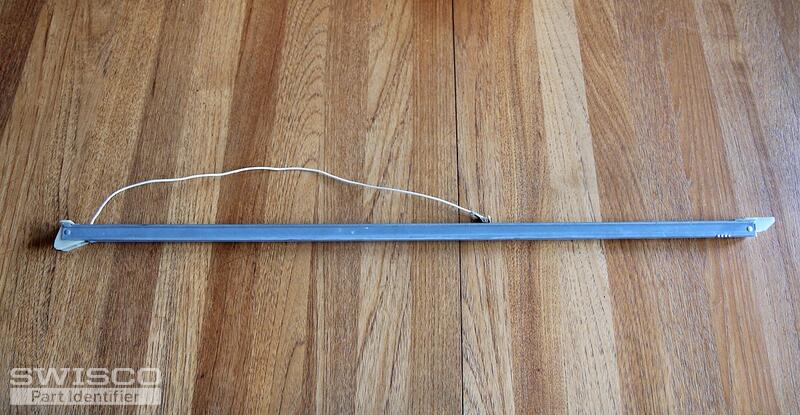

Window balance has 25 4 IO CALDWELL. I'm thinking that part S385-26 with a sash weight
of 2540 would work. Window is non-tilt and measures about 38" x 28". Does this sound
right? Thanking you in advance, Bob Elliott .. Phone 503-646-1125 (if needed)
channel balance
Home Owner from Beaverton Oregon
May 9, 2018 2:33 pm
2 user uploaded images
2 Replies
Casey from SWISCO
May 9, 2018 3:45 pm
With this combination of attachments, you could have either a S380-26 or S385-26 channel balance. You need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You're 2540 sash weight option sounds like it should work for the correct balance.
Thank you and let us know if you have any other questions or concerns.
