channel balance

A quick learner from California says:

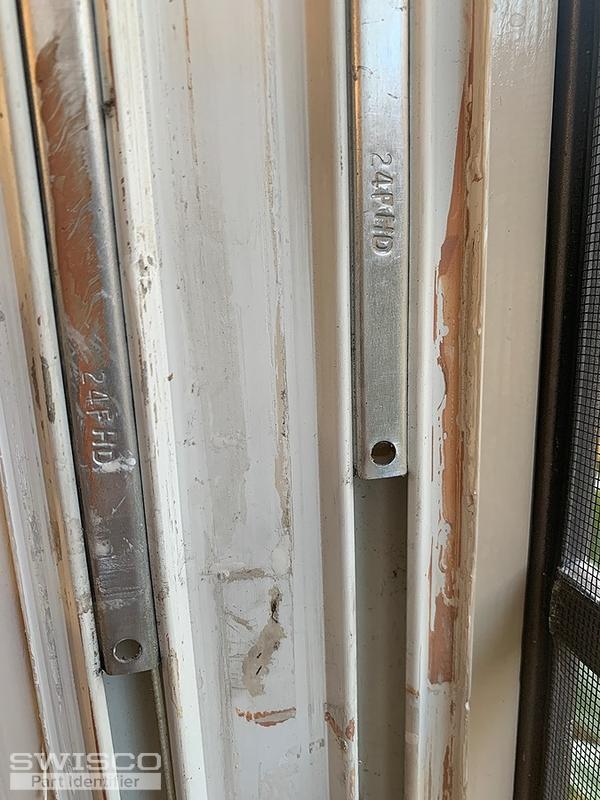

NEED 4 RIBBED CHANNEL BALANCES,TILT, 2 FOR TOP, 2 FOR BOTTOM, METAL MEASURES 25 INCHES, TOP SASH WEIGHS 7.5 POUNDS, BOTTOM SASH WEIGHS 8 POUNDS, 24FHD STAMPED
Thumbnail of the uploaded file named IMG_1767.jpg
Thumbnail of the uploaded file named IMG_1766.jpg
Thumbnail of the uploaded file named IMG_1765.jpg
Thumbnail of the uploaded file named 626138102.jpg
Thumbnail of the uploaded file named 626138536.jpg
Profile picture of Bob
Bob from SWISCO responded:

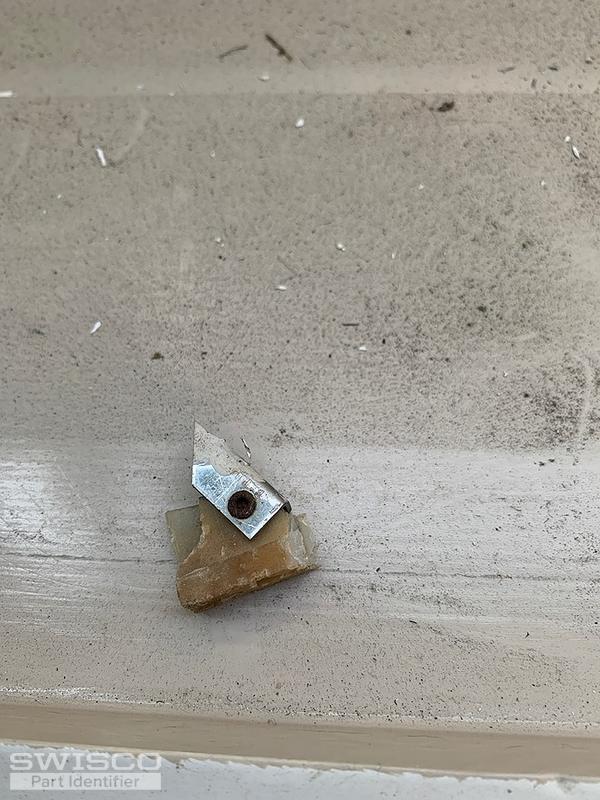

Thanks for posting. This does indeed look like our S751-25 Ribbed Channel Balance. However, those window sash weights are pretty light compared to the weight ranges that these length balances normally cover. Can you double-check the sash weight to be safe? A bathroom scale should suffice. Make sure that your old balance's knife shoes resemble our 15-014, rather than the 15-197 or 15-233. The 15-014 is the shoe that comes attached by default to these balances, but some use those latter two shoes indeed. A picture of an undamaged shoe would be best to confirm. Finally, for the pivot bars, see if our 26-150 match up.

A quick learner from California says:
YES ON 15-014
YES, THE PIVOT BARS ARE THE SAME.
DOUBLE CHECKED THE WEIGHT OF THE WINDOWS AND FOUND ANOTHER.
2 OPENINGS ARE 22" X 54" TOP & BOTTOM WEIGHT 8# EACH AND METAL IS 25"LONG.
1 OPENING IS 26" X 66" THE TOP WEIGHTS 21# & METAL IS 37"LONG, THE BOTTOM WEIGHTS 15# AND METAL IS 25"
Profile picture of Bob
Bob from SWISCO responded:

Thanks for bearing with us. For the S751-25 balances that support sashes that weigh 8 pounds, you will need balances that use a stamp option of 24L, which will support a sash in the weight range of 6 through 10 pounds. This is not a stock option we carry, but we'd be happy to bring it in for you via a custom order. Similarly, for the S751-37 balances that support a sash that weighs 15 pounds, you'll need a stamp option of 36R (15 through 24 pounds). This also is not a stock item, but we can supply it for you via a custom order. I am sending you an email with two custom links enclosed for those balances mentioned above. Let me know if you have any questions prior to placing placing your order.

For the S751-25 balances that support a sash that weighs 21 pounds, use balances stamped 24R. These are stock items can be put into your cart via our website.
