channel balance

Question

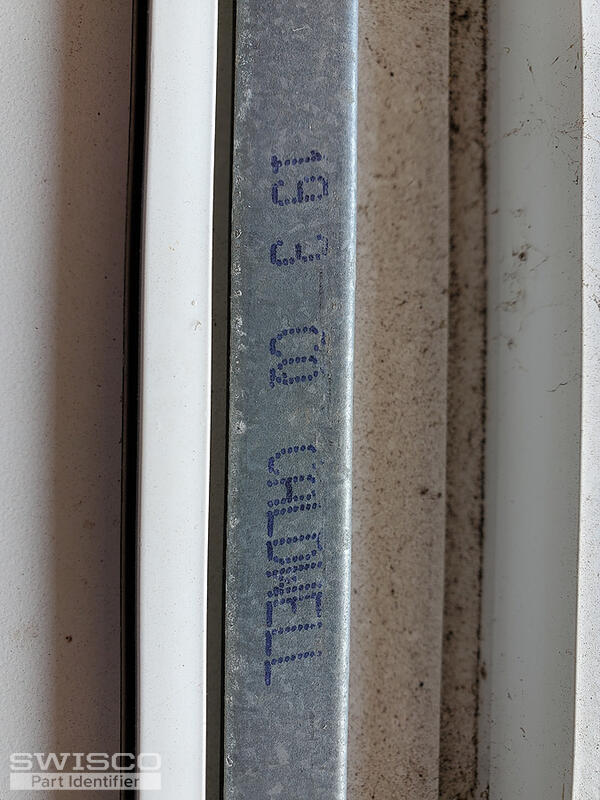

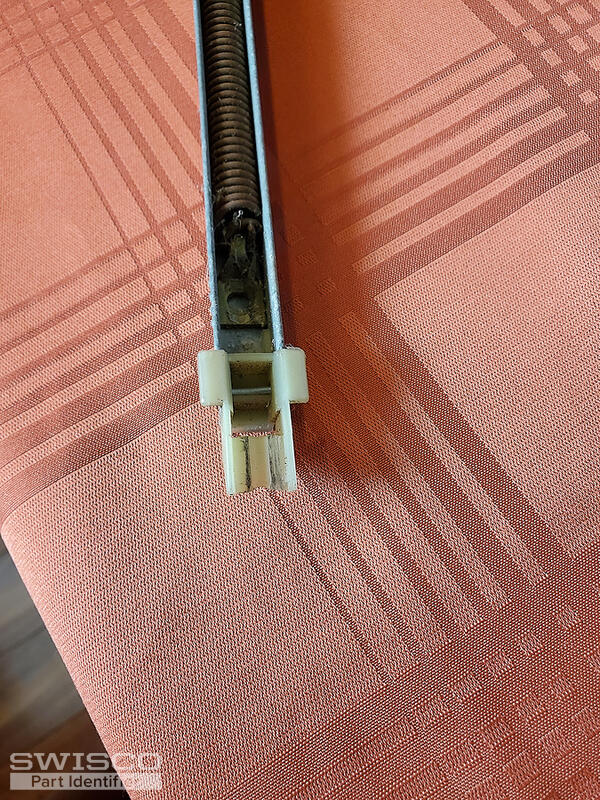

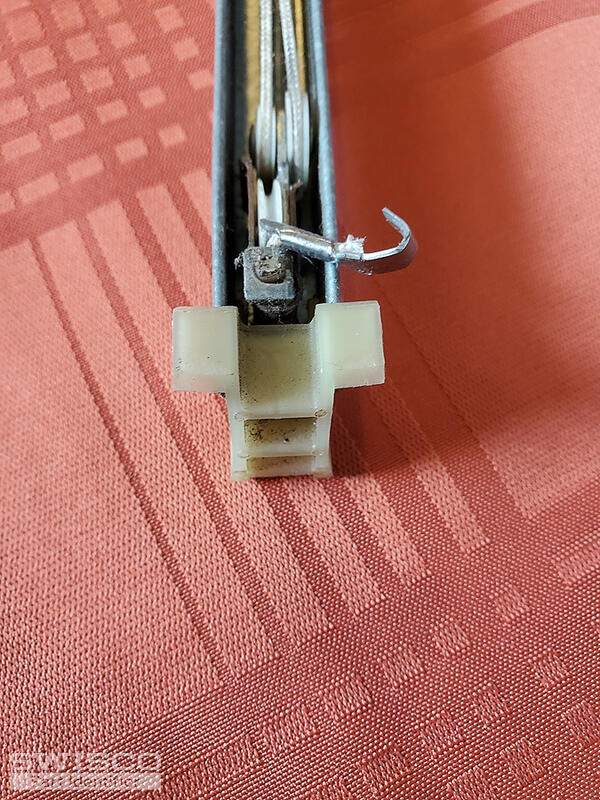

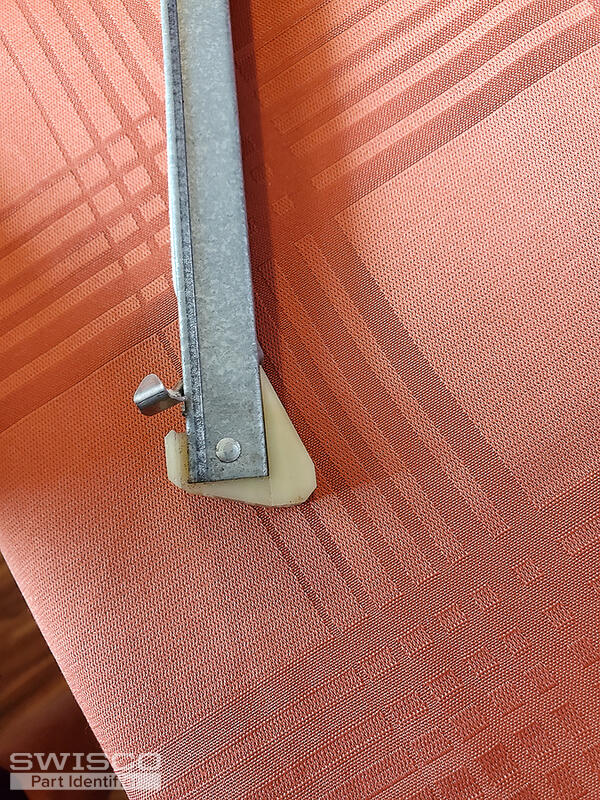

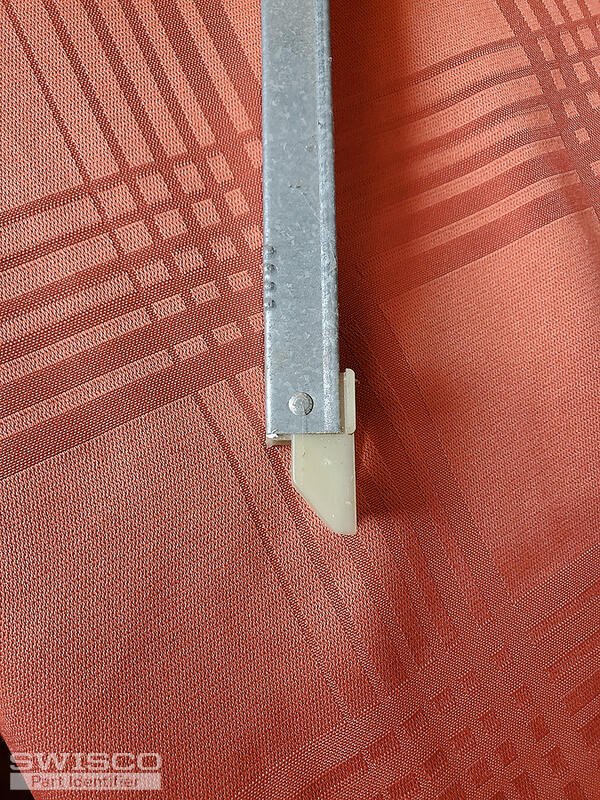

here are the pictures of my channel balance .
the balance is 20" long
i will need 2 channel balance. one for each side of the window

Emily · Accepted Answer

Hi there!

With this combination of attachments, you could have either an S380-20 or S385-20 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a 1930 spring strength option.

If you have any questions just let us know!

Comparison of the S378, S380 and S385 balance shoes.
