channel balance for Milgard window

Question

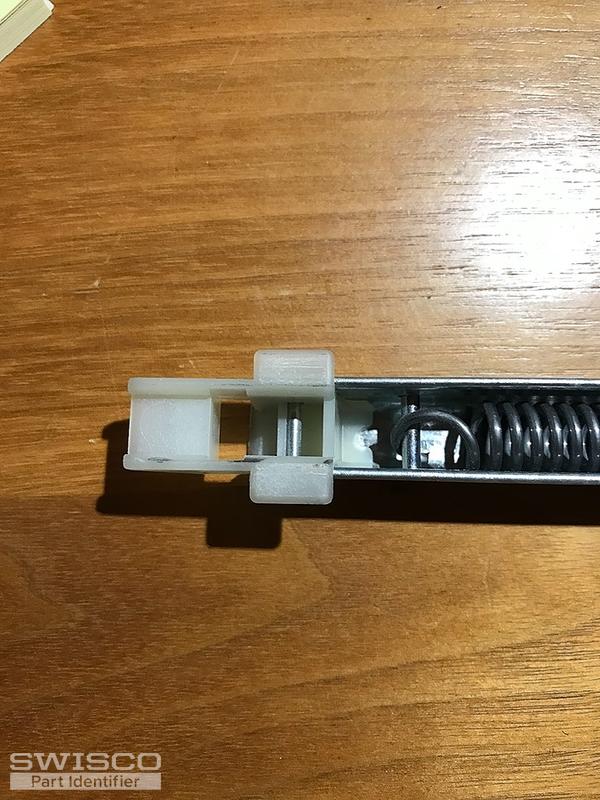

Piece is 23" long. I am also missing the metal piece at the top of the window which tilts out with flat head screwdriver

Casey · Accepted Answer

Hello,

With this combination of attachments, you could have either an S380-23 or S385-23 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2250 spring strength options for your replacement balances.

It also sounds like you might be looking for a take our clip like our 16-002. Take a look and see if it's a match to the part you're looking for.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
