channel balance id

Question

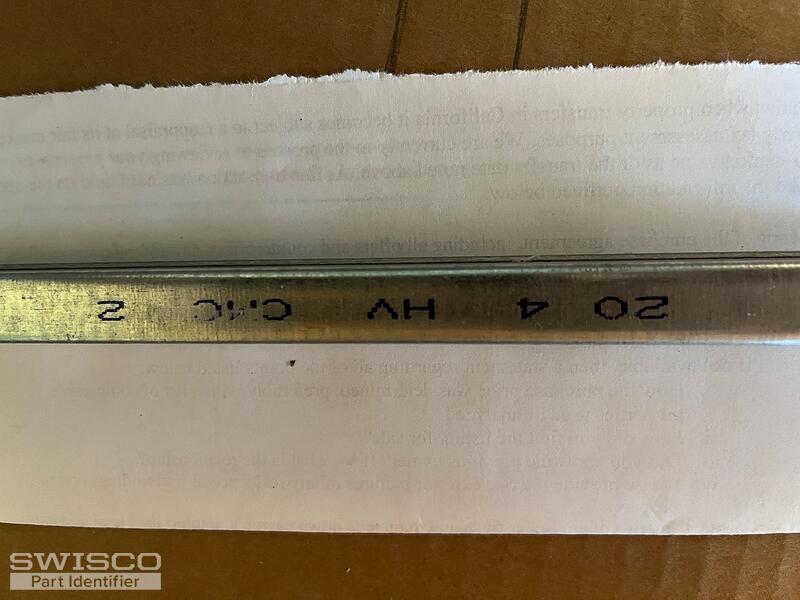

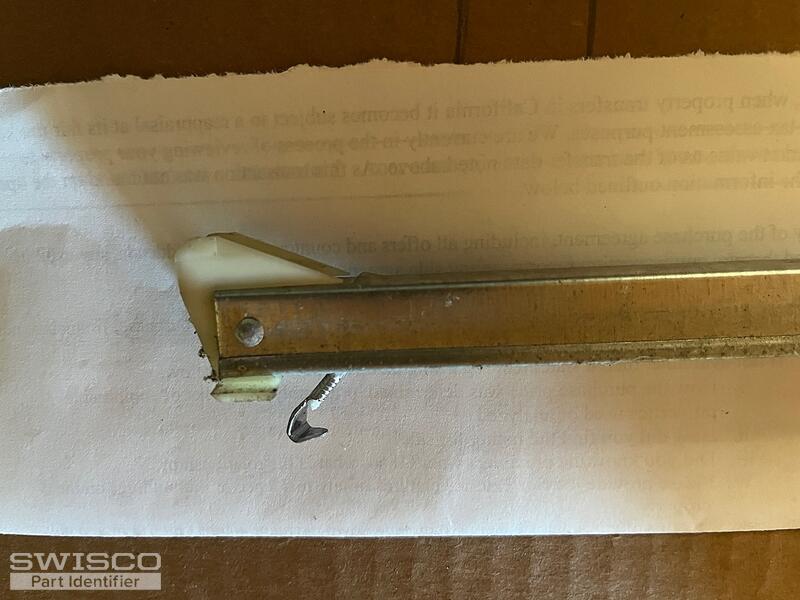

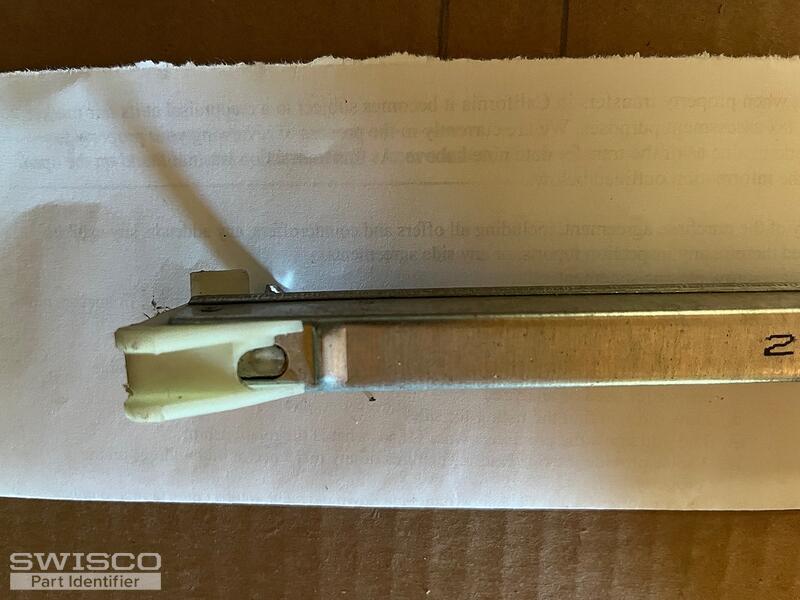

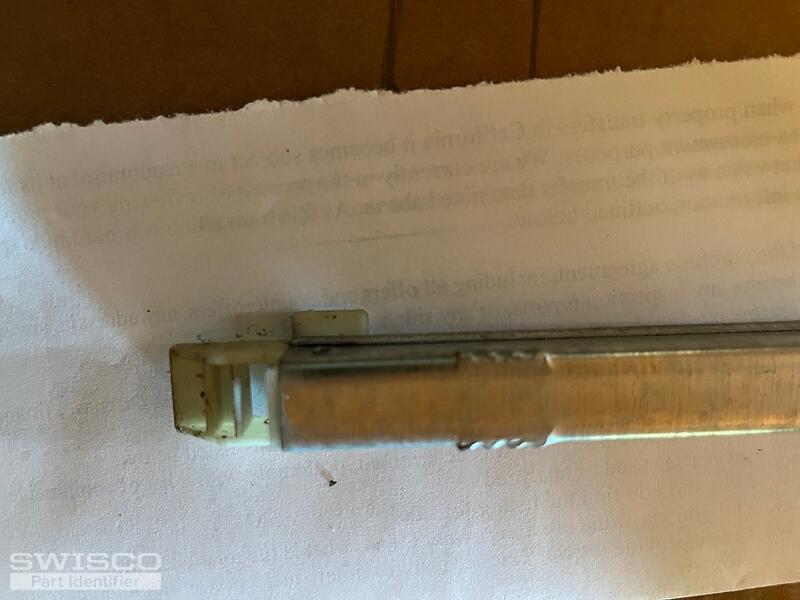

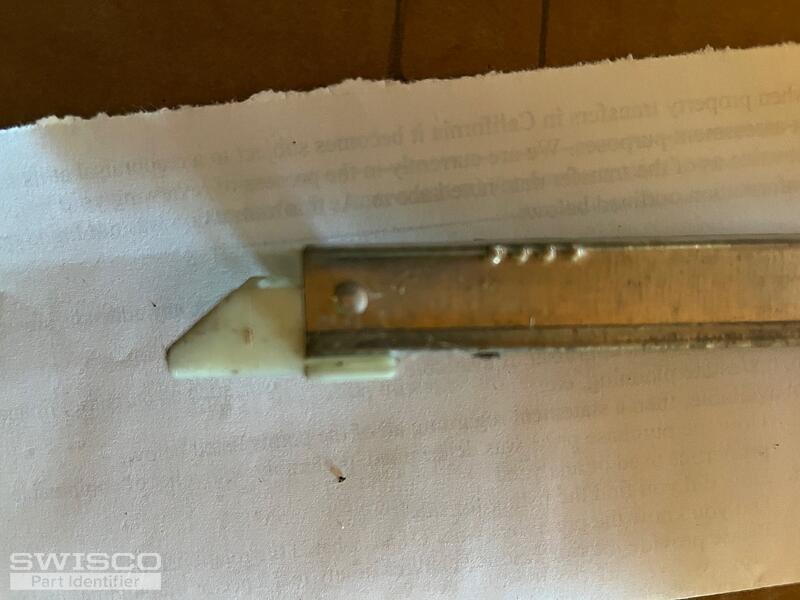

hi, I need to replace these channel balances. They're from a Milgard brand window.  they're 21" long. thanks!

Bob · Accepted Answer

Thanks for posting. See our S380-21 or S385-21. The only difference between these two channel balances is the depth of the bottom nylon shoe, or the 'heel-to-toe' measurement. See the diagram below as a reference. Compare both with your old hardware to see what matches best. In either case choose 2040 as a stamp option.

Comparison of the S378, S380 and S385 balance shoes.
