channel balance non tilt

Home Owner from 84123

Sep 14, 2018 12:06 am

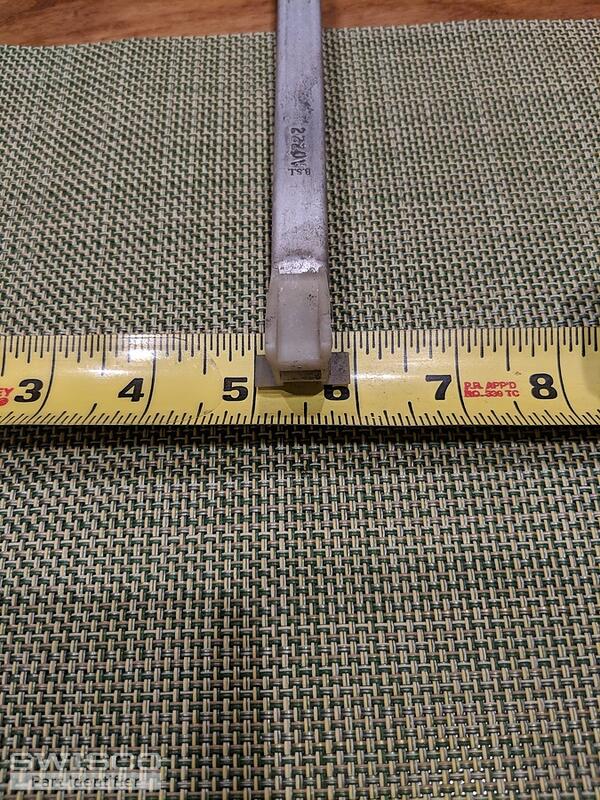

I've been looking at the window channel balances and can't seem to fine the combination I think I need. From looking at the dimensions I think I need a 1/2 channel that's 23" long with a 19-002 top and a 15-005 shoe. The stamp on my balance reads 2220V. Do you have this combo? I've attached pictures for your reference.

4 user uploaded images

4 Replies

Tom from SWISCO

Sep 14, 2018 1:04 pm

You're gonna want S350-23 with a 2220 stamp option.

Home Owner from 84123

Sep 14, 2018 3:26 pm

Is the 15-004 shoe going to be too large, mine is just under an 1" from front to back?

Tom from SWISCO

Sep 20, 2018 10:42 am

If that's the case, you may want to consider our S351-23 channel balance. The shoe is 1" deep, which I think was the original size of your existing shoe. It probably just wore down a little over time.

The top nylon attachment also has wings, but there's a very good chance that won't matter. If they do end up getting in the way, you can always snip them off.
