channel balance part number

Quick Learner from Hercules, CA

Jun 11, 2024 1:27 pm

Hi, there.

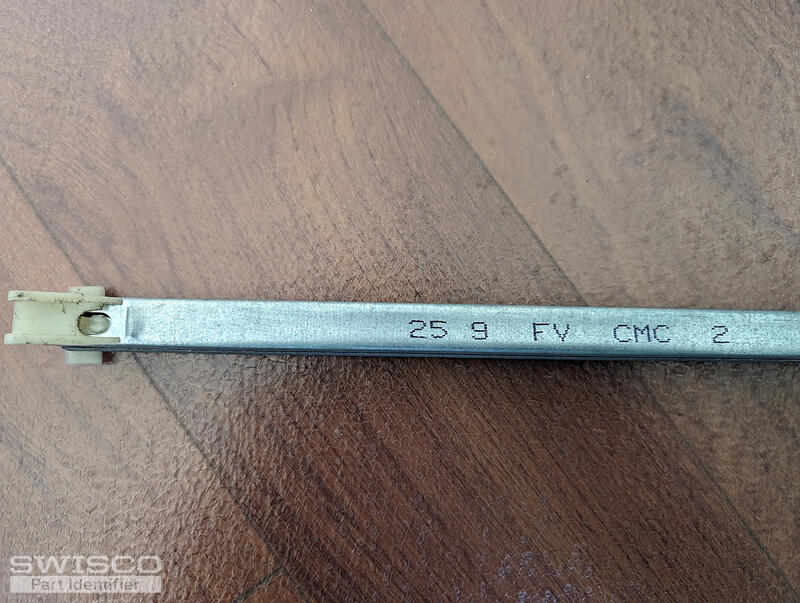

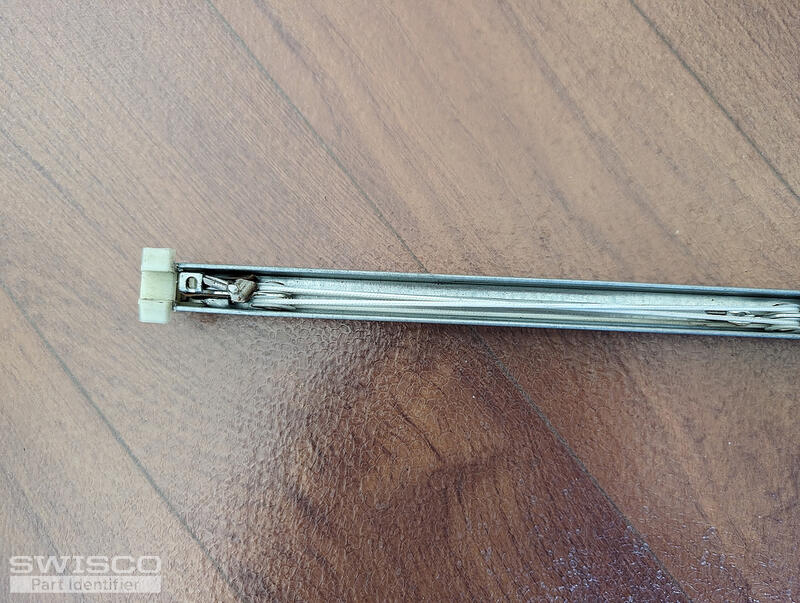

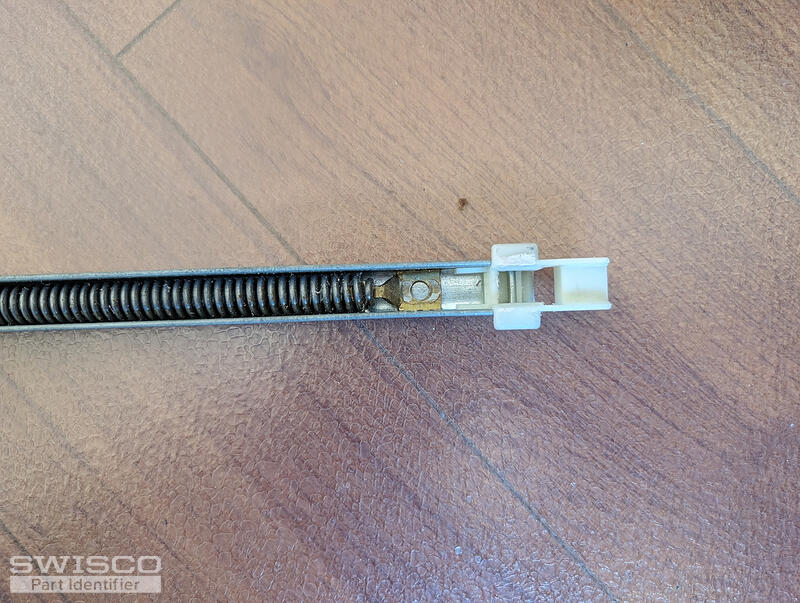

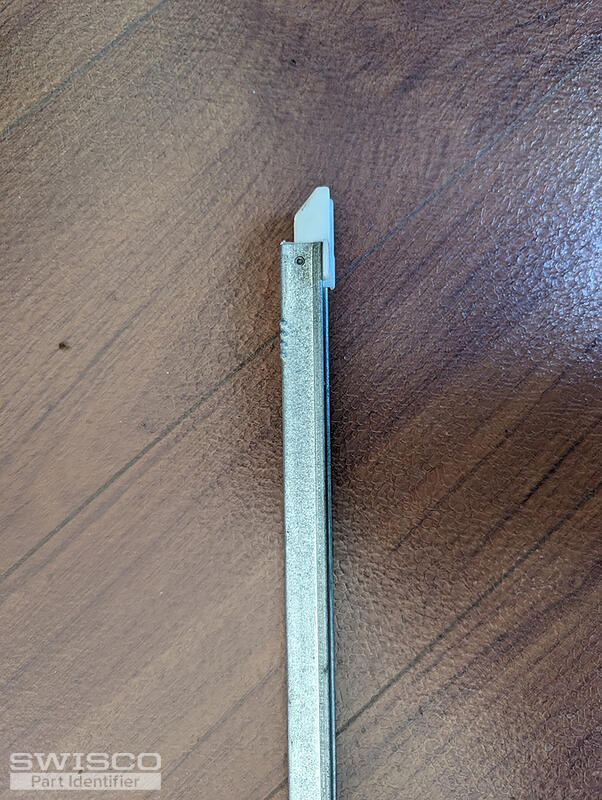

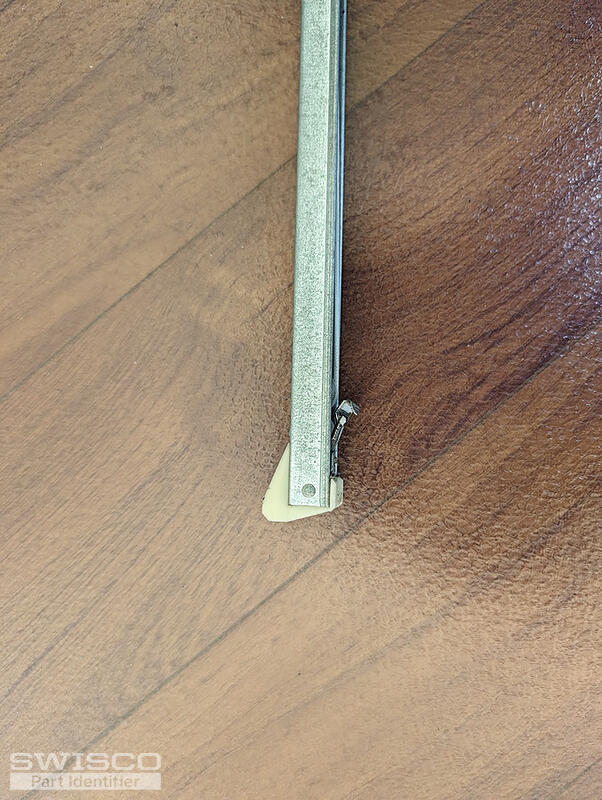

I am looking for channel balances for my windows. Attached are a few photos. The channel balance width is 1/2 inch, length is 26 inches and stamp codes: 25 9 FV CMC 2.

Let me know the part number so I can order them from you.

Thanks.

S. Shu

5 user uploaded images

3 Replies

+ Add a Comment

Jasmine from SWISCO

Jun 11, 2024 4:13 pm

EXPERT

Thanks for reaching out to us! I am confident we can supply you with a replacement for the channel balances you have here but I'll just a few more details to confirm the correct replacement. To start, may I please see a clearer photo of the pulley system in the center of the balance where the string and spring meet?

Please feel free to reach out with any questions you might have.

Quick Learner from Hercules, CA

Jun 11, 2024 7:45 pm

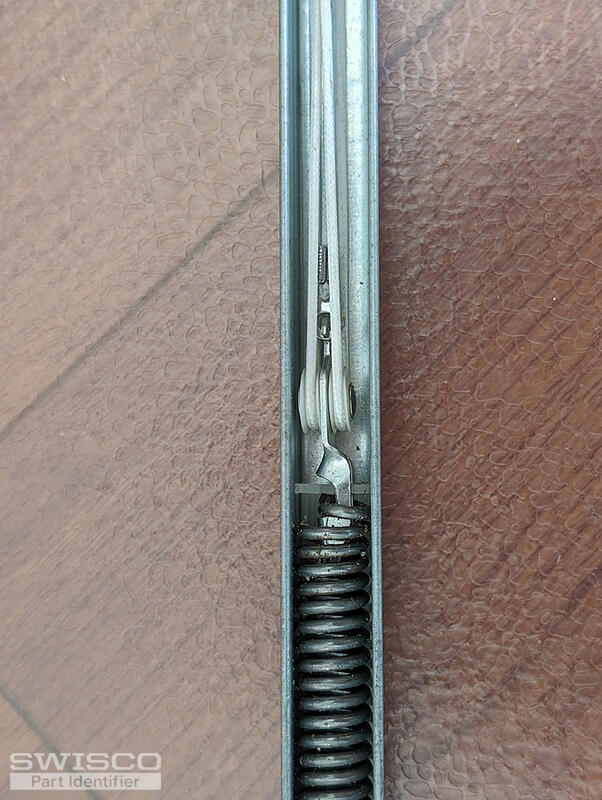

Thank you for the quick reply. Attached please find the photo you requested.

PXL_20240611_233335234_exported_497_1718148872626.

1 user uploaded images

Jasmine from SWISCO

Jun 12, 2024 9:13 am

EXPERT

Thanks for the photo! Your balance can be replaced with either our S380-26 with a 1" shoe or our S385-26 with a 1-1/2" shoe. To determine which of these is the correct replacement, confirm the dimension for the depth of your shoe.

Comparison of the S380 and S385 balance shoes.

I'm not able to cross-reference the stamp on your balance, unfortunately. That said, you'll need to obtain the exact weight of your sash to confirm the correct stamp option. There is a chart below the product description of the balances that lists the weight range each stamp option can hold.

+ Add a Comment
