Coil cover is
1/2 inch thick
1-3/4 long
1-1/4 wide
Break shoe is 1-3/8 long, 1-1/4 wide

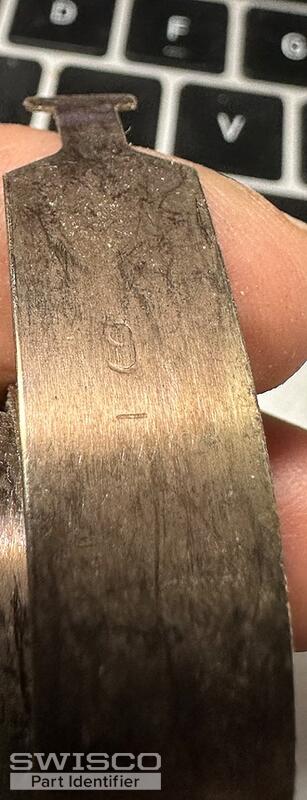

1/2 inch coil 9 lbs

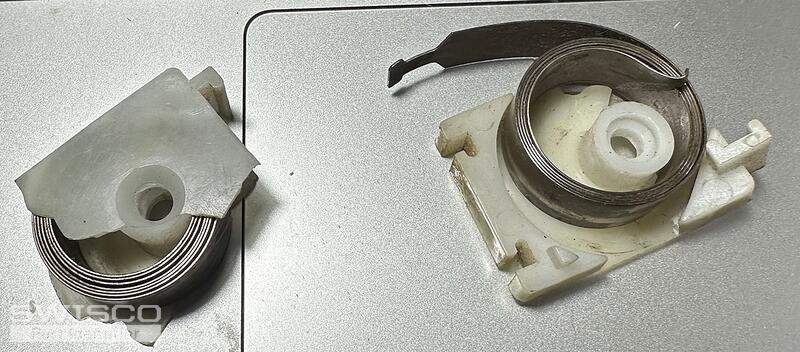

coil assembly with ear attach support
Quick Learner from Illinois
Sep 24, 2024 3:51 pm
5 user uploaded images
2 Replies
Casey from SWISCO
Sep 27, 2024 11:38 am
Hello,
We do not carry an exact match for your pivot shoe but take a look at the the 15-228 pivot shoe, which uses the Series 160 coil springs and 15-150S single or 15-150D double nylon support for the springs. We've related a few videos on this page to help you through the replacement process and provide some insight on how these parts function. Take a look and let us know if you need anything else. Thank you!
Dimensions for 15-228
