coil balance replacements

Contractor from Poughkeepsie, NY

Mar 1, 2021 12:33 pm

the markings are difficult to see, there appears to be 2 lines
first line 5 0 35" p
second line 2208
spring width 3/8" coil width 2 1/4" unit height 4 1/2"

thank you

3 user uploaded images

4 Replies

Tom from SWISCO

Mar 2, 2021 1:16 pm

We may have a good match for this coil balance. Before I recommend anything, can you first show me a picture of the pivot shoe to which these springs attach?

Contractor from Poughkeepsie, NY

Mar 9, 2021 3:59 pm

Thank You

I appreciate the good service!

Ken Tooker

1 user uploaded image

Tom from SWISCO

Mar 10, 2021 9:10 am

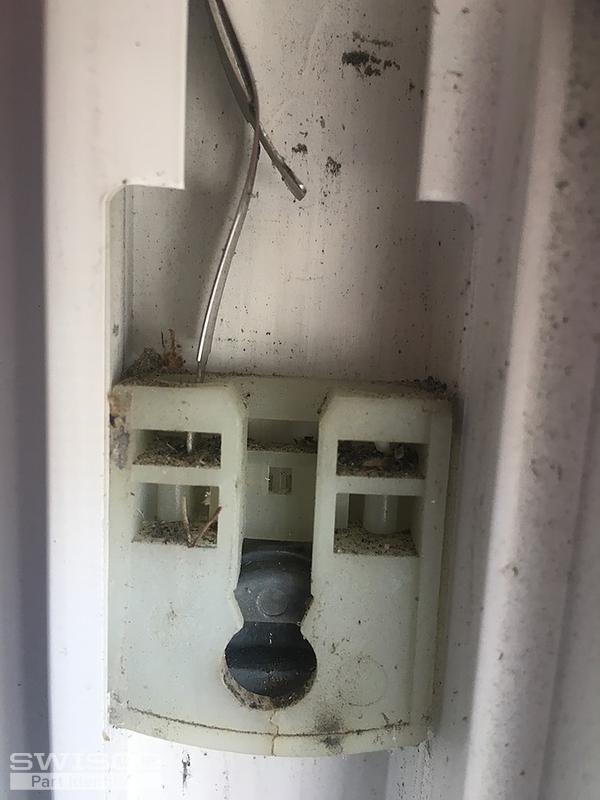

Thank you! That's the 15-199 shoe, clear as day. Since your spring is 3/8" thick, my recommendation to you would be our Series 165. I am very confident this will work for you, you just need to get the stamp printed on the band of the original to pick out the best Series 165 option.
