coil balances for Bryn Mawr 2 windows

A quick learner from Jersey City NJ says:
May 3, 2012
I have certainteed double hung replacement windows. The were manufactured in 1999. I think they are Bryn Mawr 2 windows. I am not absolutely positive of that. Anyway I am looking for the coil balances and the necessary plastic parts that go with the coils.

The coils have the number 406 on them. The plastic part that connects to the coil has the number A1-87698. The barrel has no number on it.

Can you guide me to the correct parts to order on you web site??

I need to order the complete assemblies for both side of a double hung window.

You assistance is greatly appreciated

Jim

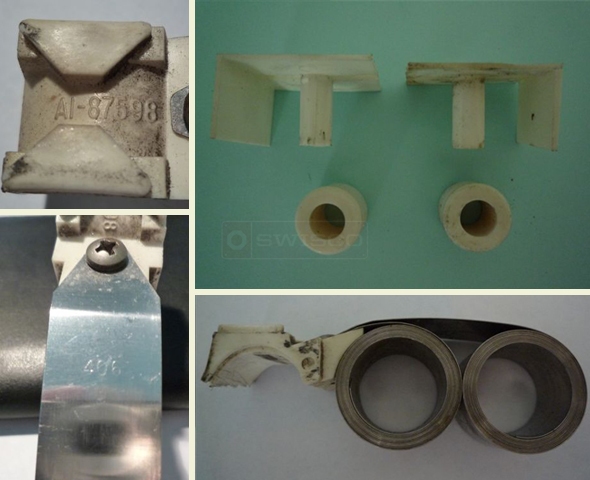

User submitted picture of coil balance for Bryn Mawr windows.
Profile picture of Paul
Paul from SWISCO responded:
May 4, 2012
Thanks for posting! For your coil balance and shoe, please take a look at our S170-406 coil and 15-192 Certainteed pivot shoe and compare them to your hardware. If you aren't sure about the shoe, please upload a picture of one that has not broken for us to look at.

As for the barrel and covers, please look at our 15-157 and either our 15-156 or 15-185. Which would better match your hardware. Do you think any of these may work? Please let me know what you decide to do!
406 Series 170 Coiled Balance Spring
406 Series 170 Coiled Balance Spring
S170-406
$6.52
CertainTeed Balance Drum
CertainTeed Balance Drum
15-157
$1.70
CertainTeed Lance Spring Cover, Wide
CertainTeed Lance Spring Cover, Wide
15-156
$1.97
CertainTeed Lance Spring Cover, Narrow
CertainTeed Lance Spring Cover, Narrow
15-185
$2.20
CertainTeed Pivot Shoe
CertainTeed Pivot Shoe
15-192
$6.39
