coil spring uncoiled and twisted : SWISCO.com

Home Owner from Wilmington, NC

Aug 15, 2023 8:53 pm

I need some advice on part number to order. need a new coil balance. thanks

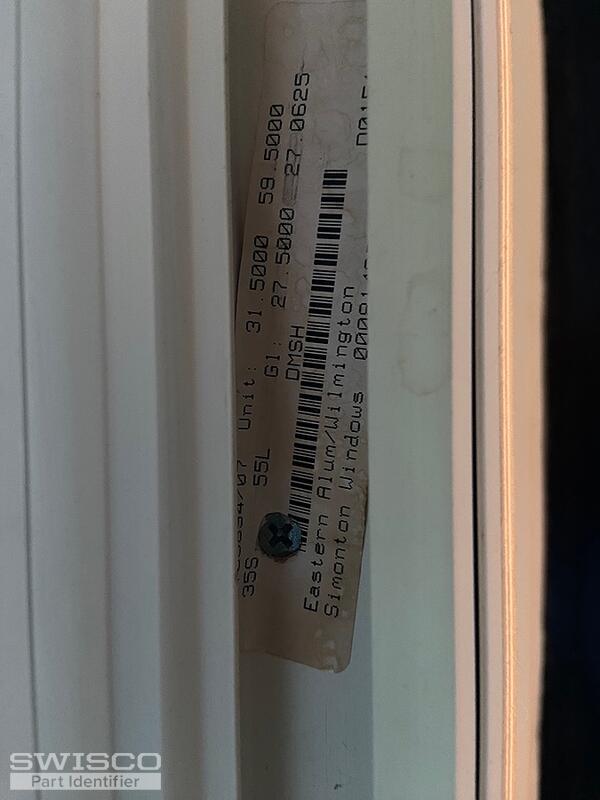

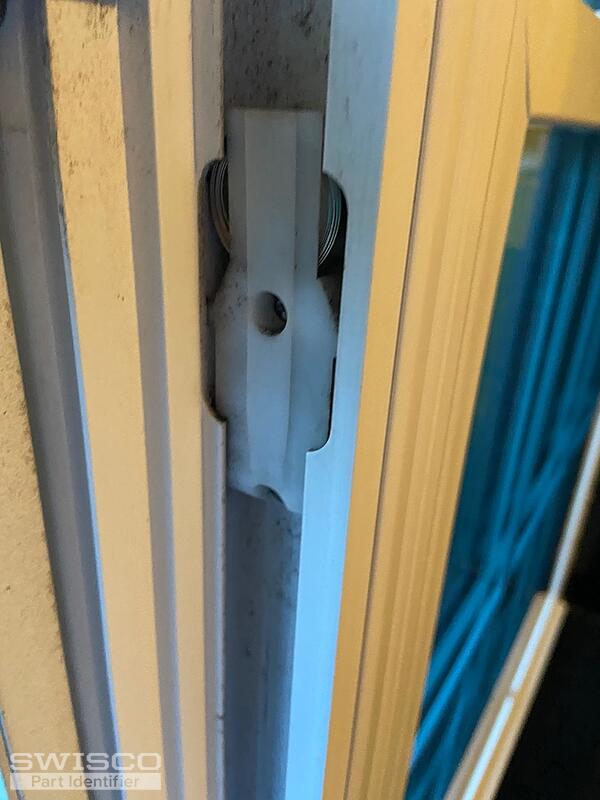

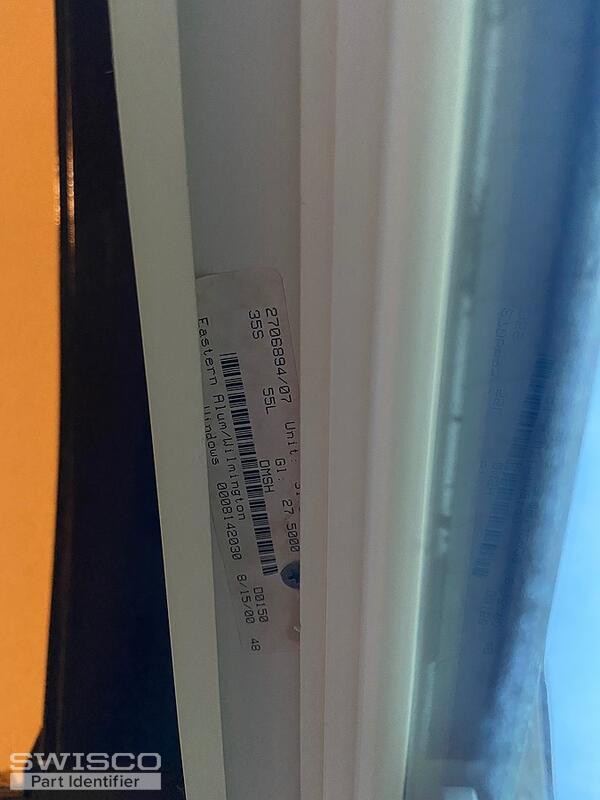

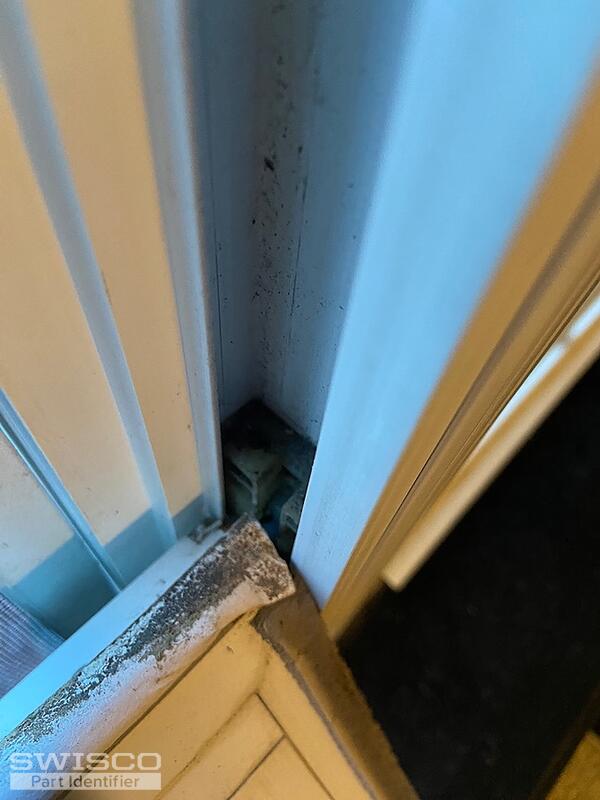

5 user uploaded images

6 Replies

Casey from SWISCO

Aug 16, 2023 10:32 am

Hello,

We'd be happy to help but we would need to see your pivot shoe and coils springs removed from the window to compare to our inventory. We've related a few videos on this page to help you through the process. Thank you!

Home Owner from Wilmington, NC

Aug 16, 2023 8:06 pm

thanks for the fast reply. I hope these pictures are helpful

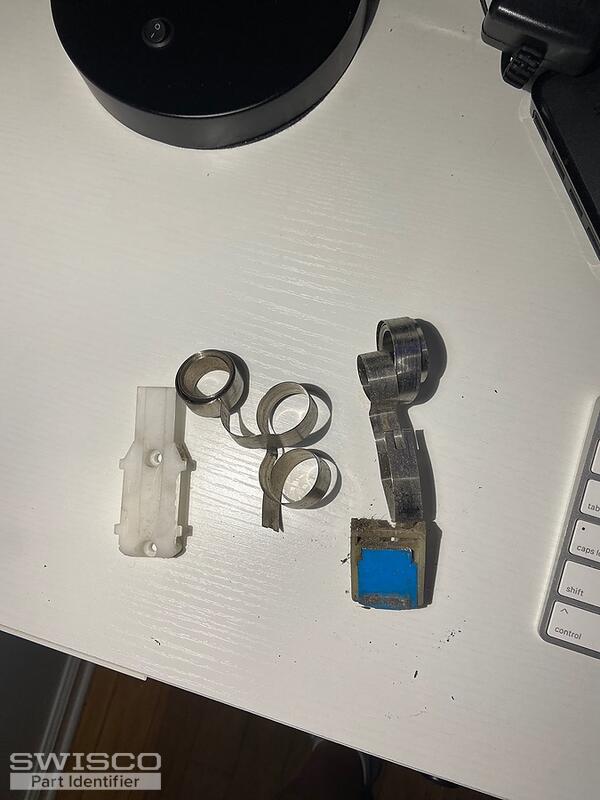

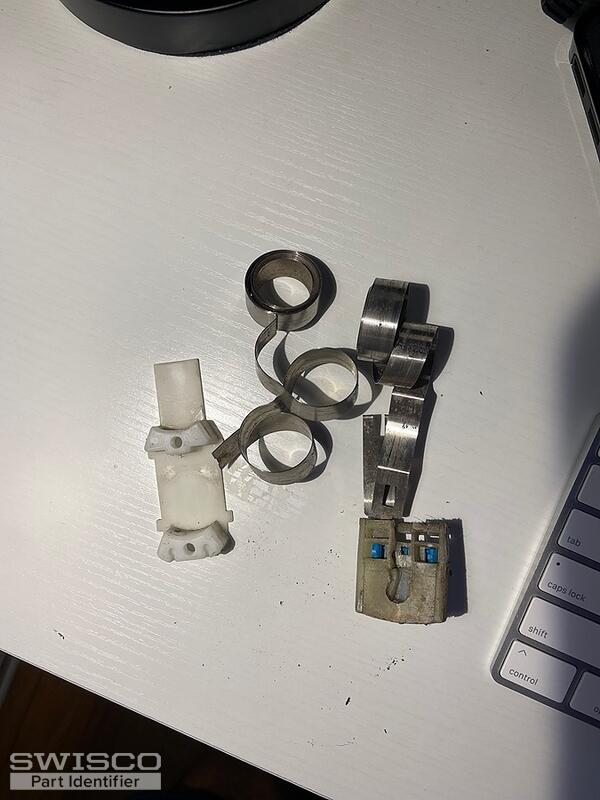

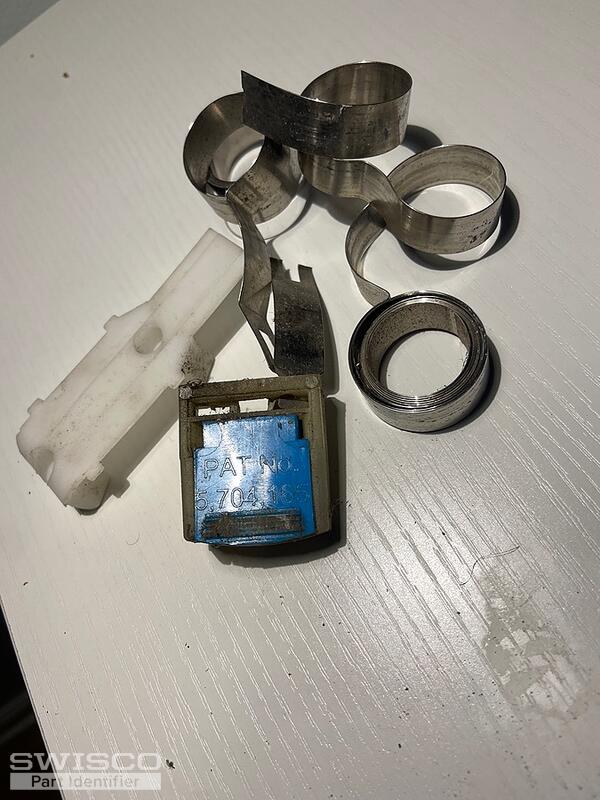

3 user uploaded images

Casey from SWISCO

Aug 17, 2023 8:31 am

Thanks for getting back to us. Your pivot shoe resembles the 17/32" thick 15-199 shown below. If the dimensions match up to yours, you would need either the 1/2" wide Series 160 or 3/8" wide Series 165 depending on the size of the original coil springs. There should be numbers stamped on the base of the coils that you'll use to choose the corresponding strength options.

Alternate view of 15-199

Home Owner from Wilmington, NC

Aug 28, 2023 8:27 pm

thank you the new parts fit and worked perfectly! thanks fore the service !!!!!

Casey from SWISCO

Aug 29, 2023 8:58 am

That's great to hear! Just let us know if you have any other questions.
