counter balance

A contractor from edgewater fl says:
need one set for this window
2830 they are 30 in long
Thumbnail of the uploaded file named 20210325_112026.jpg
Thumbnail of the uploaded file named 20210325_123229.jpg
Thumbnail of the uploaded file named 20210325_123235 (3).jpg

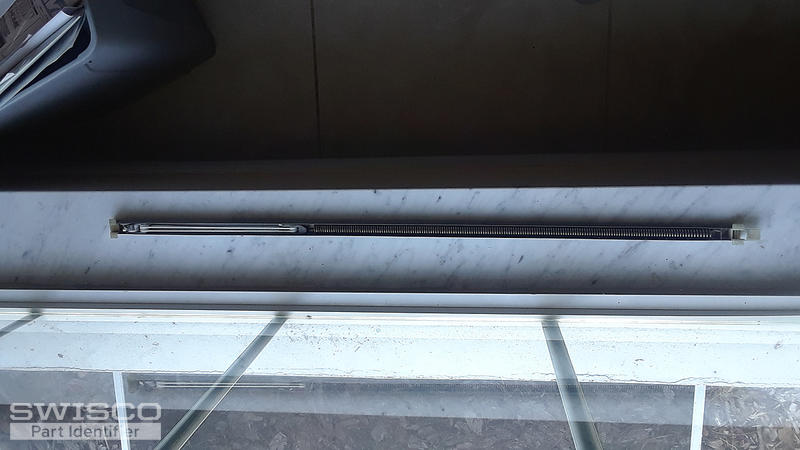

Thumbnail of the uploaded file named 20210325_123246.jpg
Profile picture of Tom
Tom from SWISCO responded:

Thanks for your photos. Based on what I see here, you have either our S380-29 or S385-29, depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match.

I note that you said the length is 30", but I suspect you're measuring the whole thing, nylon fittings included. You don't want to do that. If you just measure the metal channel then I think you'll find it's 29".

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
A contractor from edgewater fl says:
7/8 in depth not either one that you show
Profile picture of Tom
Tom from SWISCO responded:

Thank you. If yours is only 7/8" deep, then that would be our 15-029. This doesn't come stock with any balance Series we sell so it will have to be a custom order.

When you say "set," do you just mean two balances? It seems every customer defines that word differently.

Assuming you only need two balances then I will then email you a purchase link and price quote for that quantity right now. You can use to place an order on our site.
