I sent pic of Right inside crank mechanism. The crank mechanism that the inside lever/handle attaches to will screw itself out to the inside as it appears to be broken where it attaches to the mechanism under the wood that hte screen sets in
crank broken
Contractor from Iowa
Feb 13, 2017 5:02 pm

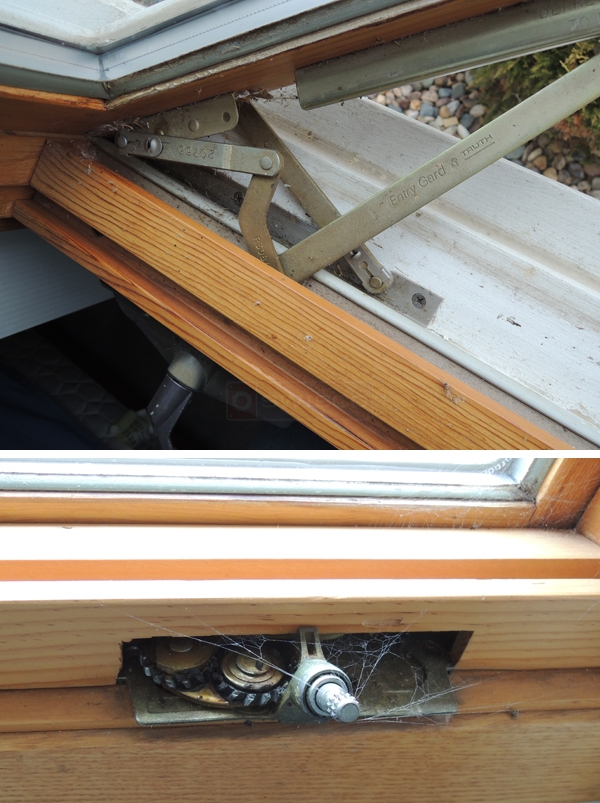

Caradco window. I sent pic of left inside operating.
I sent pic of Right inside crank mechanism. The crank mechanism that the inside lever/handle attaches to will screw itself out to the inside as it appears to be broken where it attaches to the mechanism under the wood that hte screen sets in
I sent pic of Right inside crank mechanism. The crank mechanism that the inside lever/handle attaches to will screw itself out to the inside as it appears to be broken where it attaches to the mechanism under the wood that hte screen sets in
3 Replies
Contractor from Iowa
Feb 13, 2017 5:55 pm
short arm is 3-3/4"
number on short arm is 20755
number off of left inside window mechanism which works is R30842
I don't have the cover off but it appears the long arm to the pivot is 9" plus. so 9 1/2"
number on short arm is 20755
number off of left inside window mechanism which works is R30842
I don't have the cover off but it appears the long arm to the pivot is 9" plus. so 9 1/2"
Paul from SWISCO
Feb 20, 2017 10:31 am
Please see our 39-155 right hand operator. This may be the hardware you need.
