crank mechanisim, bottom slide

Question

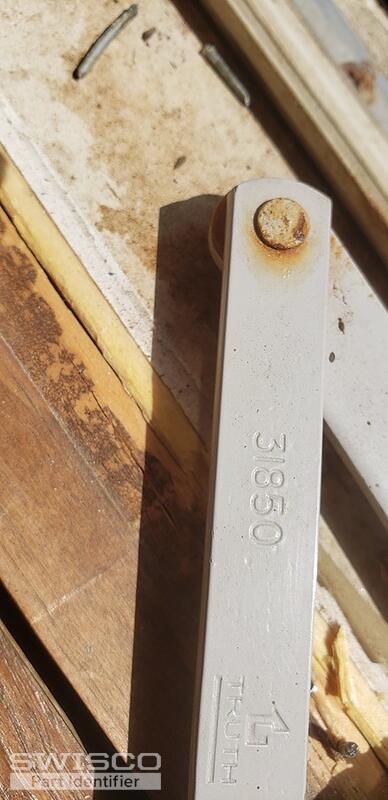

I need the parts to replace the crank mechanisim that say's Truth 31850
and the bottom piviot arm assembly with the plastic slide on it that is bent as shown in the picture

Bob · Accepted Answer

Thanks for writing in. For the operator, start by considering our 39-316. This has a similar design, but review the diagram below, compare to your old assembly, and let me know if anything differs, and if so, how. For a handle that works with this operator, see the 39-114L sold separately.

Alternate image for 39-316

For the hinge, see if our 36-048 10" Hinge Set could work. Review the dimensions below.

Detail of 36-048
