double hook lock

Home Owner from 91733
Hi i need to replace this lock with a keyed one. i need to lock from outside , thank you

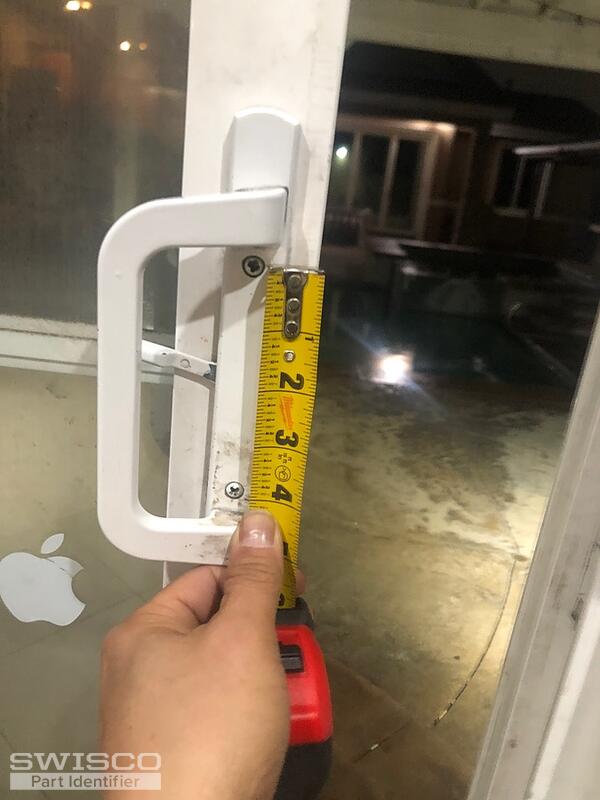

1 user uploaded image
4 Replies
Lauren
Lauren from SWISCO
SWISCO
Expert

Hello, thank you for posting,

Your mortise lock resembles the 82-239 or 82-259 stainless steel version. Please review the dimensions to confirm a good fit!

If the lock is in working order and you are only looking for keyed access, that will most likely require a new handle set. To further review, can we see additional pictures of the interior and exterior handles along with providing the distance between the installation holes from center to center? Thank you!

Home Owner from 91733
Yes , i need everything new including handles.

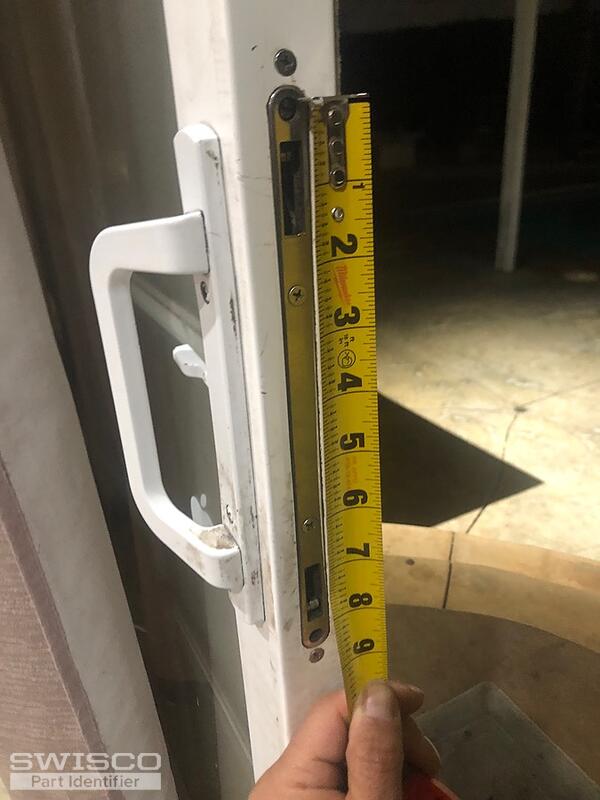

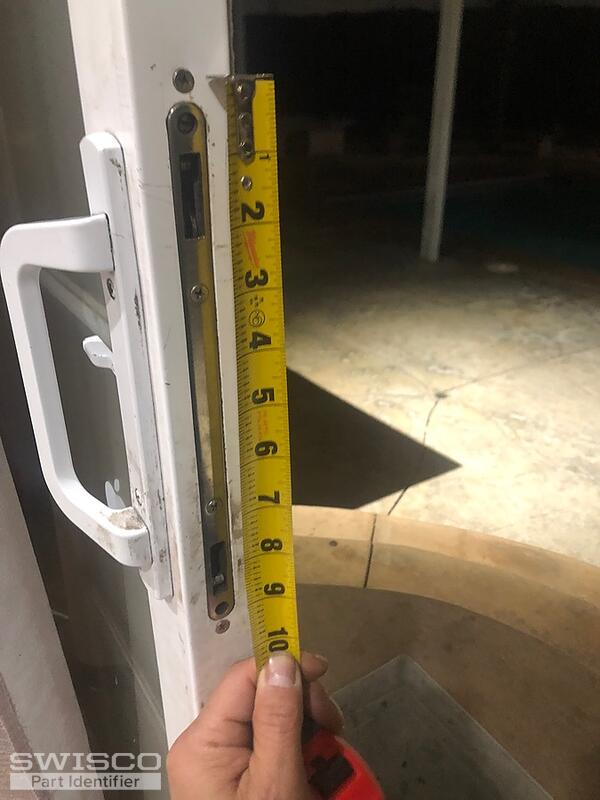

5 user uploaded images
Lauren
Lauren from SWISCO
SWISCO
Expert

Thank you,

Along with the mortise locks mentioned above, please review the 82-030A handle set that has a 3-15/16" installation hole spacing from center to center. This handle set has a keyed exterior lock. Compare to your original and let us know if you have any additional questions!

Dimensions for 82-030A
Dimensions for 82-030A
