dual spring balance

A quick learner from Buffalo ny says:
March 13, 2021

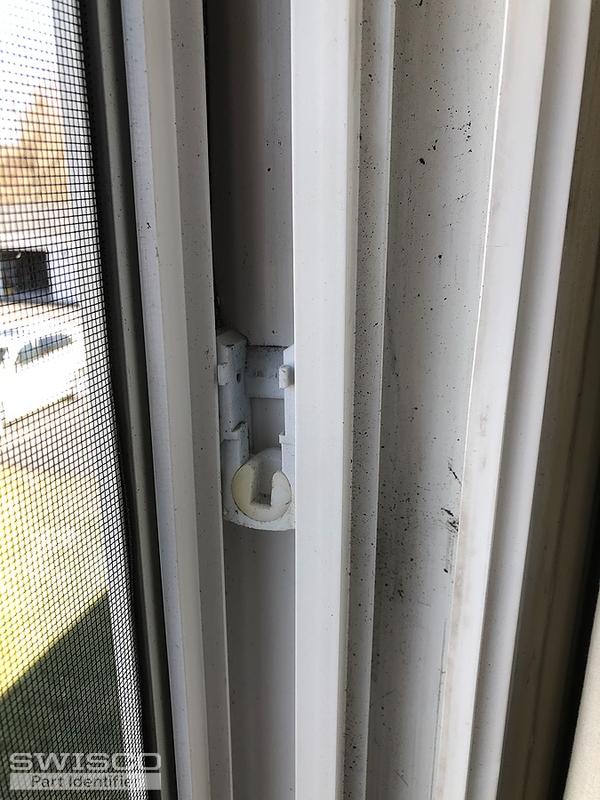

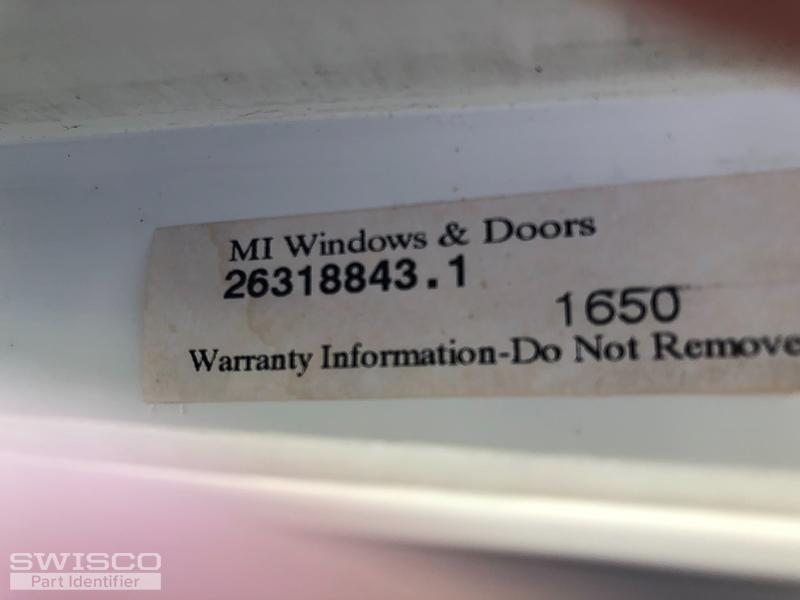

My window is a mi window dual spring balance. I can't find a number on either the clip or the springs. The window is 30 by 30
Thumbnail of the uploaded file named 67BF9DDC-6CB8-4201-9E86-278FE94064B5.jpeg
Thumbnail of the uploaded file named B567B091-55A0-4544-AC1D-C0B60B66EAC2.jpeg
Thumbnail of the uploaded file named 411E53D1-7754-4CB8-AFC2-FD9FBA1C56DB.jpeg
Thumbnail of the uploaded file named CCAAFBA2-1E79-4FB5-A322-347AF9F21449.jpeg
Thumbnail of the uploaded file named 6FA457B8-AA23-478E-8A0A-6FE702DA59B3.jpeg
Profile picture of Paul
Paul from SWISCO responded:
March 15, 2021

We estimate your sash weight to be 24 lbs., but you can veryify that by weighing it on a bathroom scale.

If I'm right, you will need four S190-640 coil springs to go with the 15-180 pivot shoe, 15-181 double dent coil spring housing and 15-182 coil springs bushings.
Coil Balance Shoe
Coil Balance Shoe
15-180
$3.97
Coil Balance Clip
Coil Balance Clip
15-186
$5.05
Balance Bushing
Balance Bushing
15-182
$1.80
