entry Gard window arms

Question

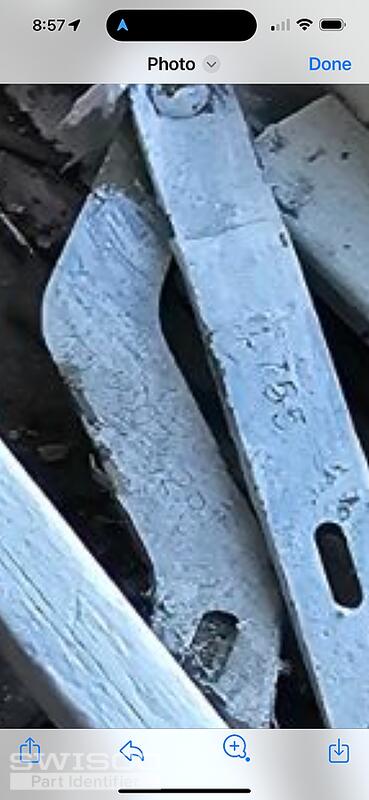

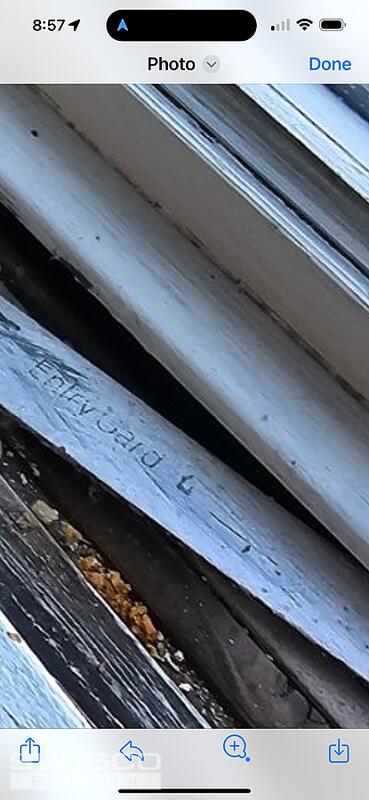

I need new arms. I can see on the current arms. Entry Gard. top looks like 755. bottom of arm look like. 30242R???

I think I need part numbers: 39-031 and 032, 39-107 and 39-205

Can you confirm please before I order.
Thank you

Bob · Accepted Answer

Thanks for writing in. That stamp on the link arm (probably '20755') has been associated with the 39-155 and 39-156 Dual-Arm Operators. These look a lot like the 39-031 and 39-032, but the arm dimensions are different. Please compare and let me know if the dimensions you know match what you have, or if anything differs. For the cover and handle, yes, the 39-107 and 39-205 should work for you. Let me know if you have further questions.

Dimensions for 39-155
