exterior patio door handle needed

A handy person from Cleveland OH says:
July 11, 2021

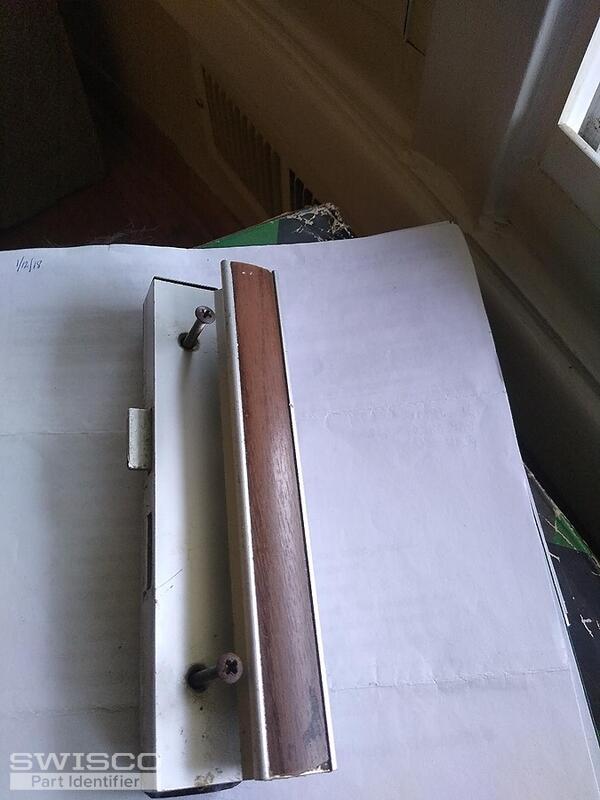

Hello and good day, I hope - I have a patio door handle but the other half of it came off in pieces. This is a 2-sided handle - the interior side is shown and the other side had a plastic exterior handle which cracked into pieces. The markings on the back of this piece are:

Canadian patent #919213 patent date 1973.

Measurements - from top to bottom 7 7/16" black piece shown in photo on back is 1" wide. Smaller screw holes are 1 1/8" from each edge - screw holes are 1/4" wide with 1 3/4" long screws, 3/16" between the smaller screw hole and the next 3/8" larger screw hole. So the outer handle has to hit the interior side at 4 points.

I hope that you can find this thing for me or find something somewhat compatible. It looks similar to the 82-042 if that helps.

Appreciate anything that you can do -

Thank you,

A.

Thumbnail of the uploaded file named handle 1.jpg
Thumbnail of the uploaded file named handle 2.jpg
Thumbnail of the uploaded file named handle 3.jpg
Thumbnail of the uploaded file named handle.jpg
Profile picture of Bob
Bob from SWISCO responded:
July 15, 2021

Thanks for posting. Yes, this handle set looks like either our 82-005 or 82-082, which have that specific surface lock. The 82-042 is compatible with these handle sets. Let me know if you have any further questions.
Outside Pull
Outside Pull
82-042
$13.70
Surface Mount Sliding Door Handle Assembly, 4-15/16"
Surface Mount Sliding Door Handle Assembly, 4-15/16"
82-005
$27.90
Patio Door Handle Set, 4-15/16"
Patio Door Handle Set, 4-15/16"
82-082
$29.75
