Spiral balance holder face guide

Start a new Discussion

Quick Learner

Jun 26, 2017 5:14 pm

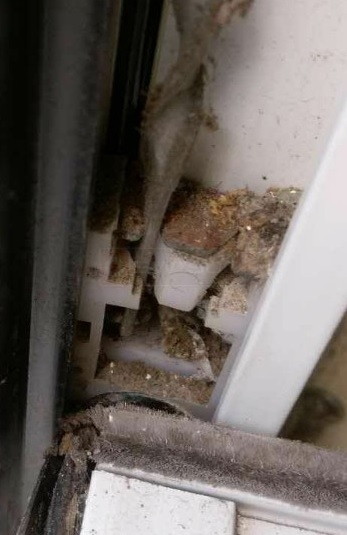

Do you have the face guide as the picture to hold the spiral? Thanks!

6 Replies

Tom from SWISCO

Jun 28, 2017 3:04 pm

This part is known as a pivot shoe. Before we recommend a match, can you show me a picture of it out of the window? Can you also tell me its width and thickness?

Quick Learner from Window

Jun 29, 2017 11:54 am

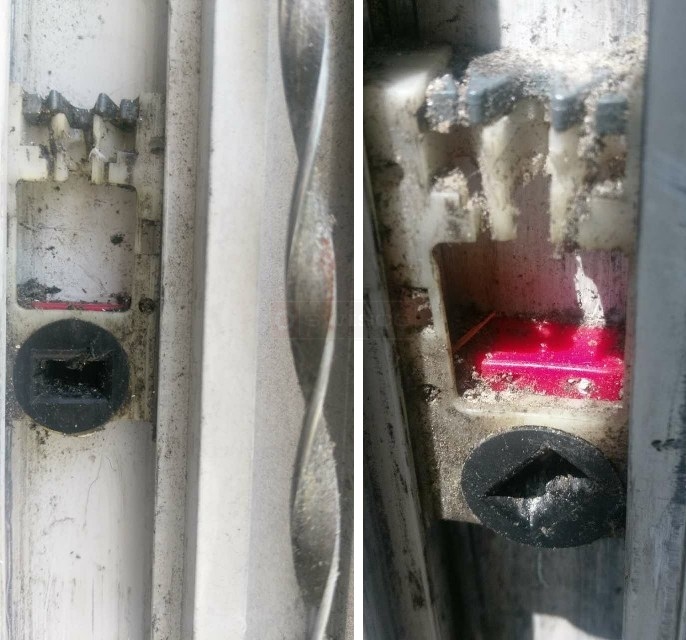

I am not able to pull the pivot shoe out. I took another two pictures. Hope is help. The width is about 1" and length is about 2". Thanks!

Tom from SWISCO

Jun 30, 2017 1:19 pm

It's still hard to say. I think your width may be more like 1-1/4". That's more common for this style. The length isn't all that important. Can you tell me the thickness?

Quick Learner from Window

Jun 30, 2017 1:41 pm

Thick is 1/2".

Tom from SWISCO

Jul 6, 2017 9:24 am

We have the 1-1/4" wide by 1/2" thick pivot shoe, our 15-046. I think that could work for your window.
