help replacement handle

Start a new Discussion

Contractor from woodland hills calif

Jan 31, 2016 5:08 pm

looking for a replacement assembly inside and out with the mech.Dont have any written info on door,jamb or hardware

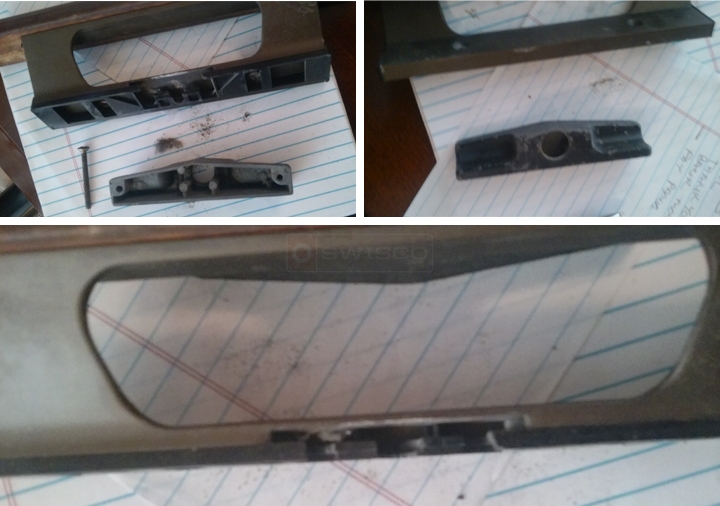

User submitted photos of a patio door handle set.

4 Replies

Dave Sr. from SWISCO

Feb 2, 2016 10:41 am

Look at our 82-033 and see if the hole center spacing is 3-15/16". If so, this may be a good match.

Contractor from woodland hills

Feb 2, 2016 8:00 pm

dave,
If you look at the third picture closely it shows a cut out in the handle to allow for a catch lock instead of the mortised in style. I'm not sure if your 82-033 will work. What do you think

Jeff
Previous pics sent 1/31/2016

Dave Sr. from SWISCO

Feb 3, 2016 10:04 am

Thanks for clearing up that detail. So this is a surface-mount handle set? We have a few that may work, though they are of different types. Is there any way we can see what kind of latch hook you had? Can you also confirm your installation hole spacing? We have the 82-005 and 82-009A, but I'm not sure if they have the same locking hook style, or if the hole spacing is the same. Let me know!
