home repair - tilt window, slide door,

Home Owner from clifton NJ
Apr 12, 2024 10:58 am
Hello Swisco, I'd like to get your help and ID the parts I need to repair a few windows, and one slide door top part.

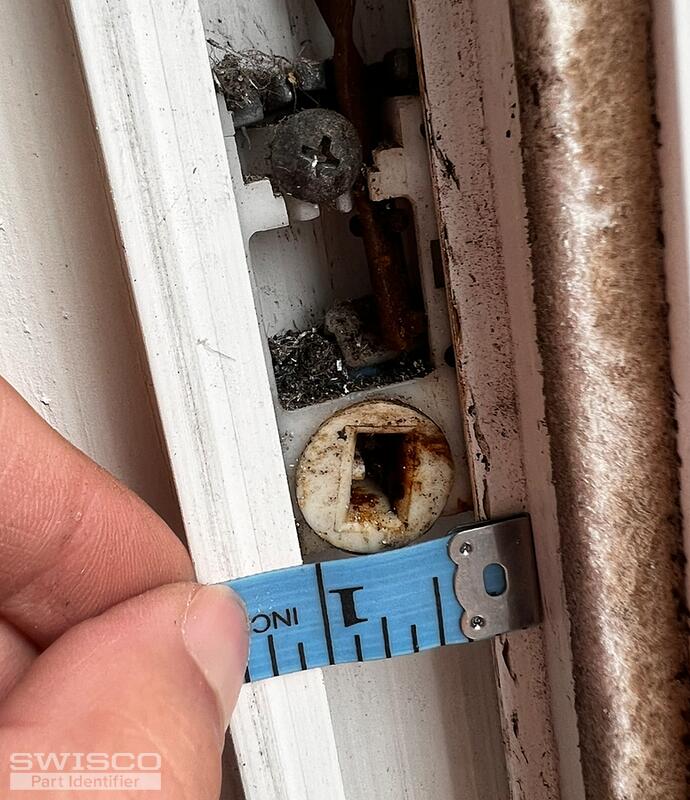

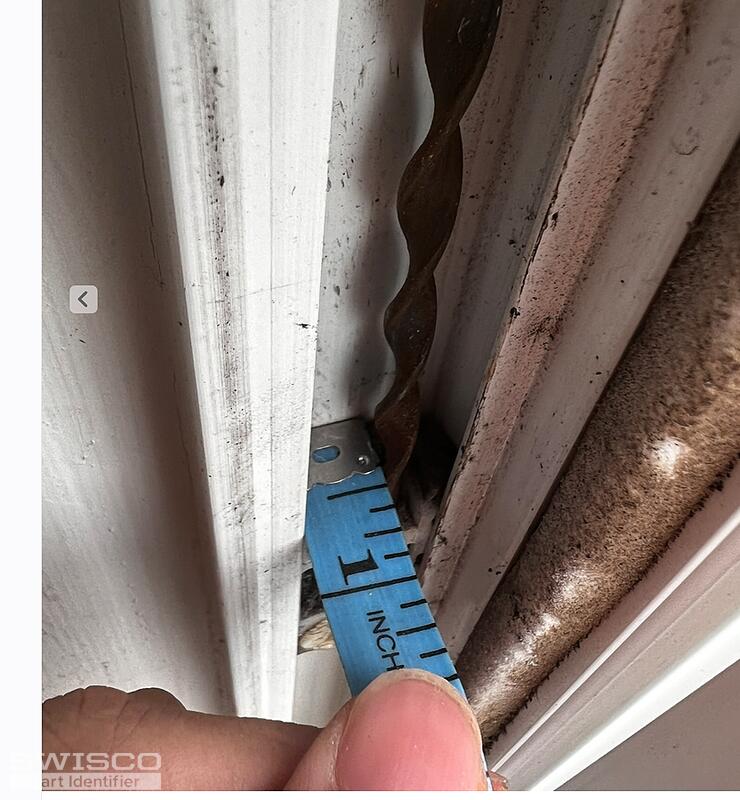

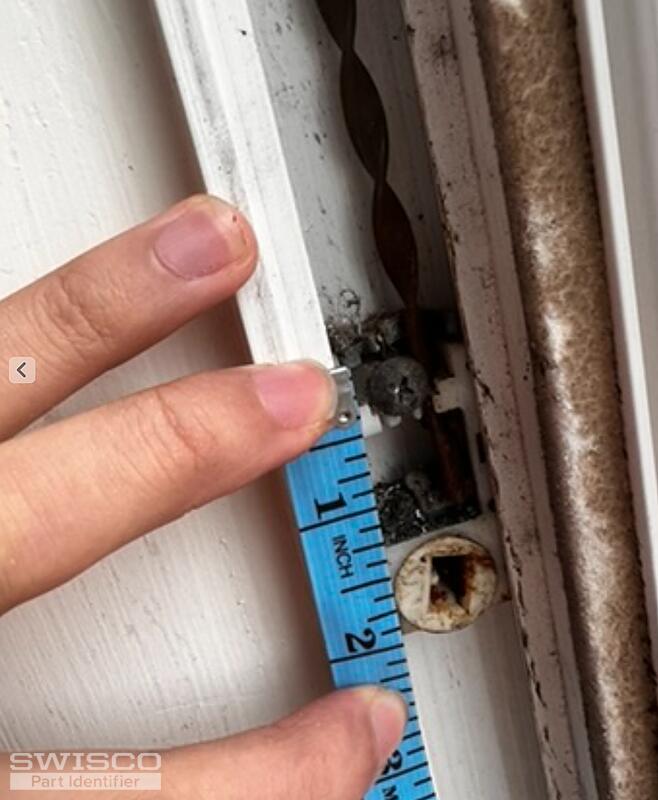

-I have the orange/red tip spiral balance and the pivot shoe is broken. kindly refer pictures

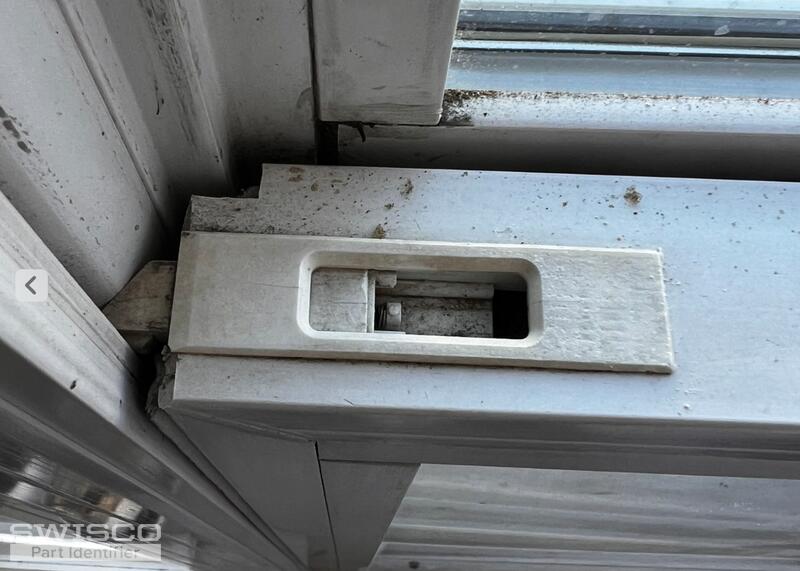

- window latch

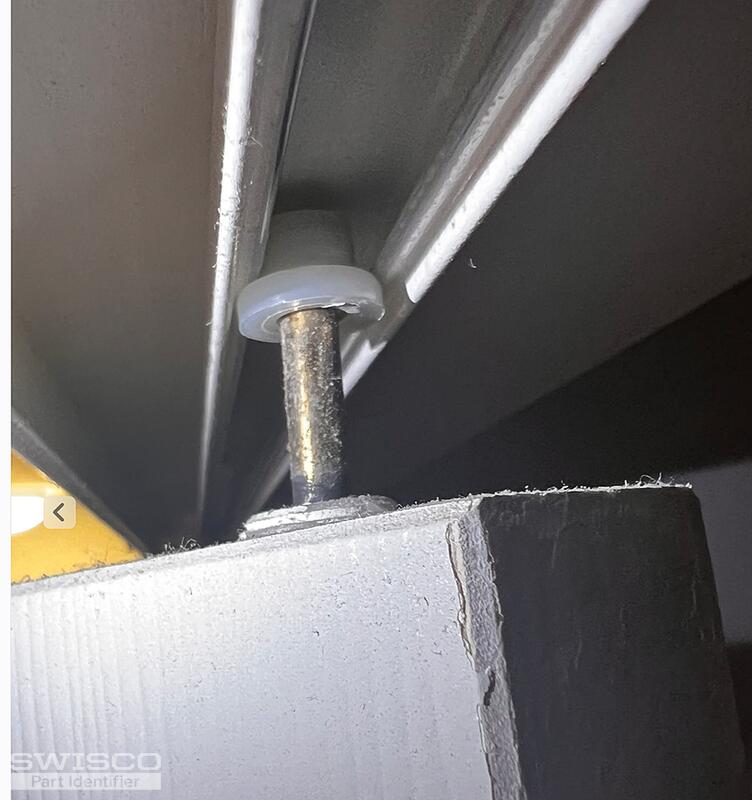

- slide door top roller (not sure if it's the right name though)
pivot shoe white cam pivot shoe spiral balance closet door pivot window tilt latch
5 user uploaded images
3 Replies
Emily
Emily from SWISCO
Apr 15, 2024 2:03 pm
SWISCO
EXPERT

Thanks for reaching out to us! Since this is a tilt window, you may have the 3/8" Series 900 or 5/8" Series 600 depending on the depth of the outer tube. To identify the pivot shoe, we will need to see a photo of it removed from the window along with the written-out thickness and width.

We can't be sure of the tilt latch since it's damaged but you can start by comparing an undamaged latch with our 26-243 and 26-244 to see if they match up.

As for the closet door pivot, could we see this part removed from the door along with written-out dimensions?

Home Owner from clifton NJ
Apr 16, 2024 4:10 pm

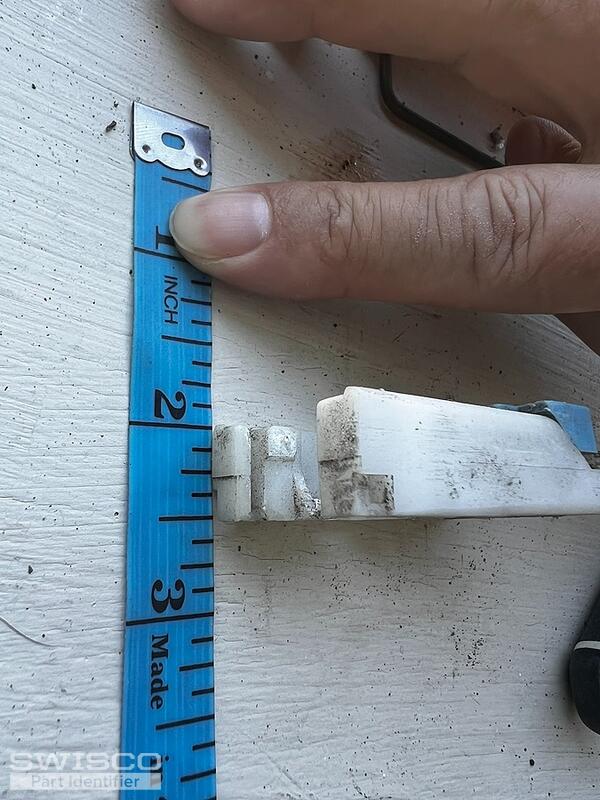

Hello Emily, I just remove one pivot shoe and latch (left) and add a few pictures here. Would you mind helping identify the parts further. Thank you.

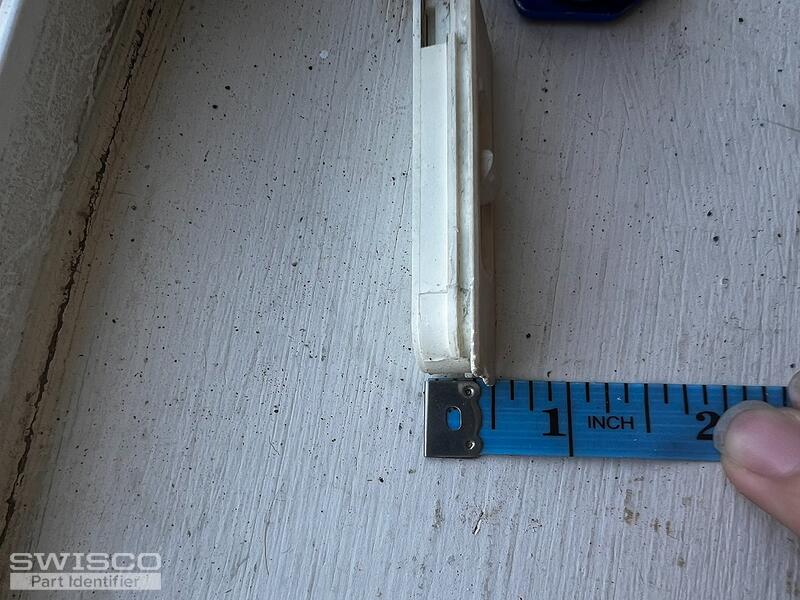

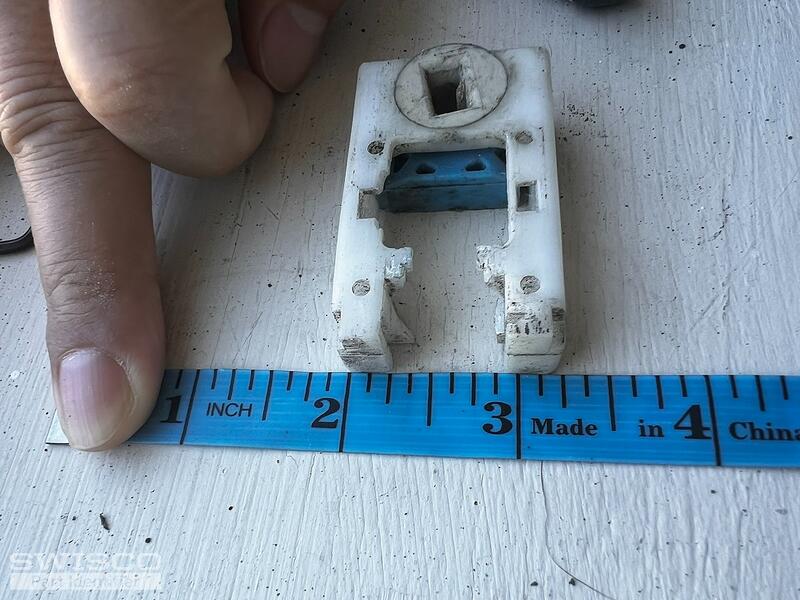

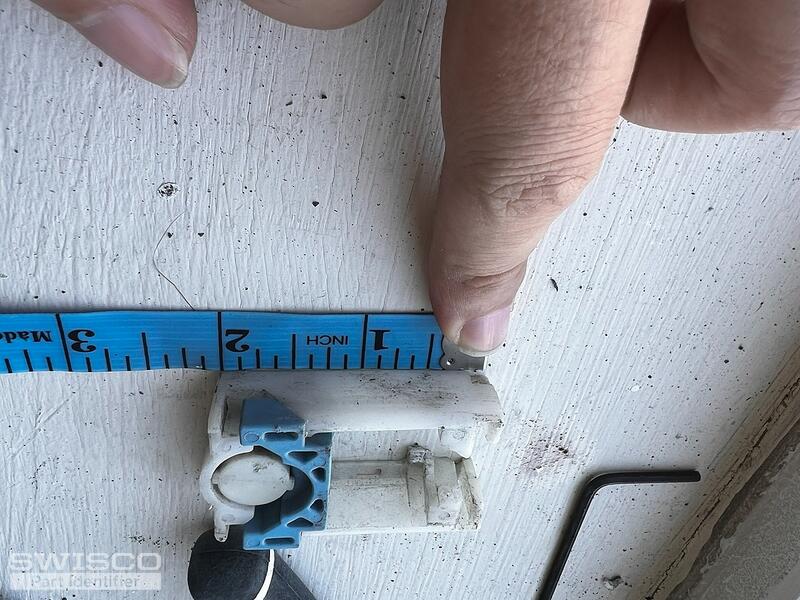

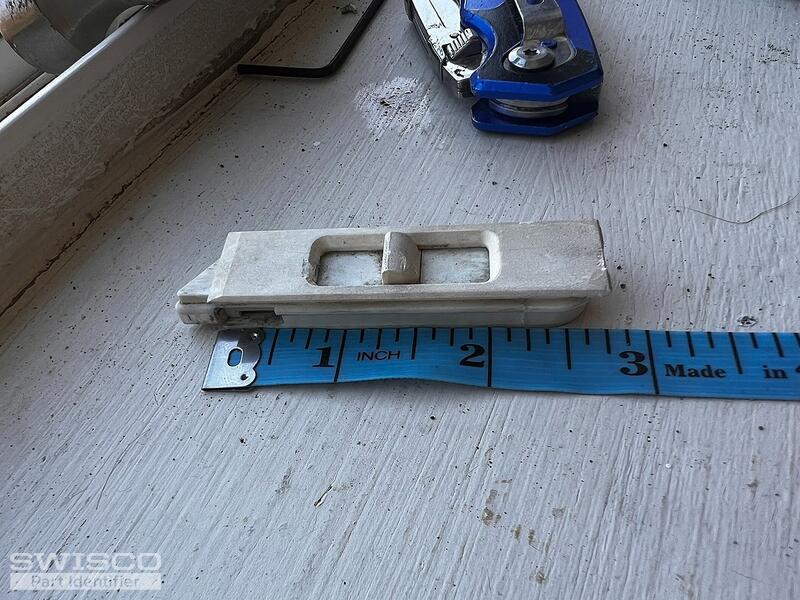

pivot shoe blue brake pivot shoe blue brake pivot shoe tilt latch whole tilt latch side
5 user uploaded images
Emily
Emily from SWISCO
Apr 17, 2024 8:34 am
SWISCO
EXPERT

I'm afraid it's hard to read accurate dimensions from photos of a tape measure. The 26-243 and 26-244 do appear to be our best options though. As for the shoe, check out the 15-046, 15-047, 15-118, and 15-121. Review the specifications for each and see which one matches up with your old shoe.
