identify tilt window latch and pivot lock shoe

Home Owner from Littleton, CO

Jun 19, 2014 8:46 am

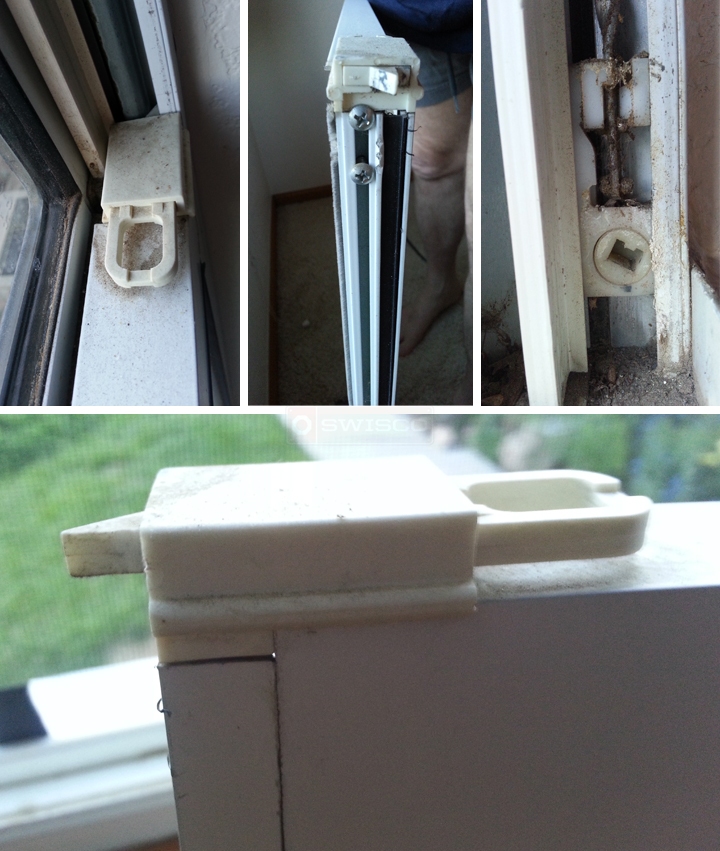

Please look at pics and help me select the parts I need for the Tilt window latch and pivot lock shoe.

Pivot Shoe is 1 7/8

User submitted photos of window hardware.

6 Replies

Paul from SWISCO

Jun 19, 2014 3:47 pm

The top tilt latch appears similar to our 26-295 and the pivot shoe looks like our 15-046. Carefully compare the dimensions we show for these parts to your own and let me know what you think.

Handy Person from Littleton, CO

Jun 19, 2014 4:14 pm

Do you have the 26-295 latch in White?

Casey from SWISCO

Jun 20, 2014 9:28 am

Actually, I think the top tilt latch looks more like our 26-333, personally. You will have to remove it from your window to match it, though.

I'm afraid both latches are only available in black.

Handy Person from Littleton, CO

Jun 20, 2014 11:12 am

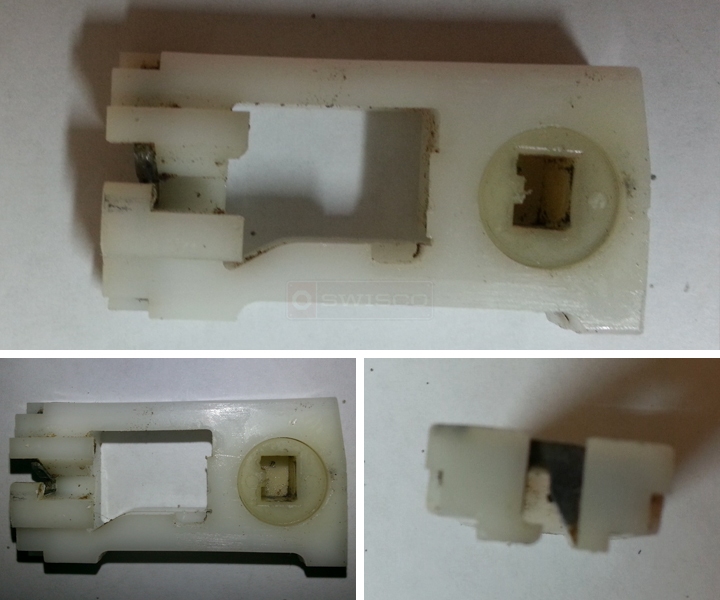

O.K. - need some refinement on the pivot shoe.

It is 3/8" deep (thickness), not 1/2", it is 1-7/8" long by 1" wide.

Your suggestion of using 1/2" model will not fit!

Do you have another choice? see additional pics

Paul from SWISCO

Jun 20, 2014 2:55 pm

Ah, perfect. Those dimensions are exactly what we need. Look at our 15-045, I think this looks closer.
