lock and crank handel and window rod if needed for new crank handle

A contractor from 46069 says:

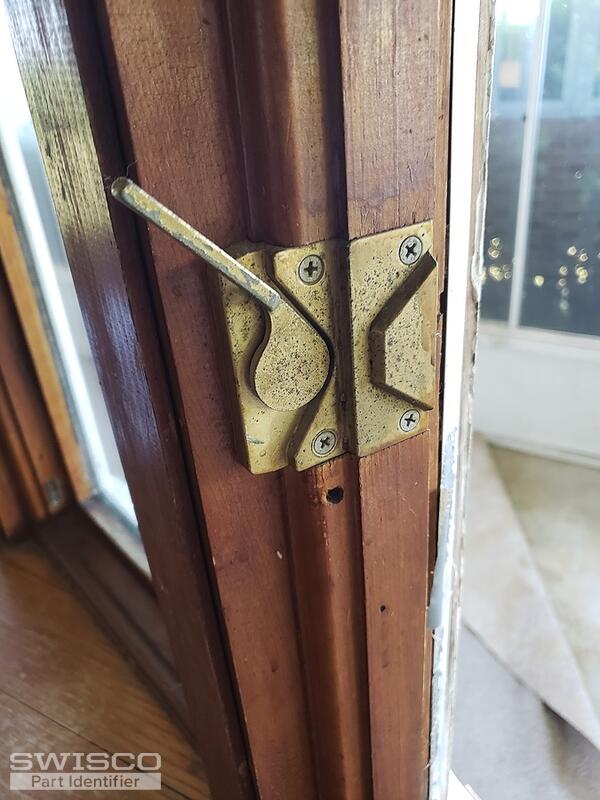

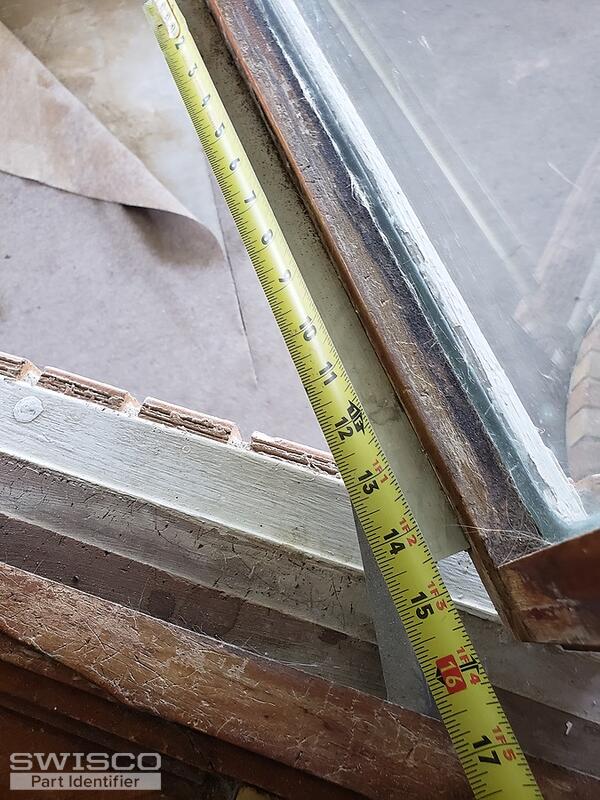

lock and crank handel and window rod if needed for new crank handle

Need 2 sets what if any finishes available
Thumbnail of the uploaded file named 20210614_172014.jpg
Thumbnail of the uploaded file named 20210614_172126.jpg
Thumbnail of the uploaded file named 20210614_172228.jpg
Thumbnail of the uploaded file named 20210614_172341.jpg
Thumbnail of the uploaded file named 20210614_172357.jpg
Profile picture of Tom
Tom from SWISCO responded:

Your operator is a very old style that isn't made anymore. We don't have a direct substitute, but the only thing that may work is our 39-028E and 39-027E. Keep in mind, however, that the design of the base is different for these two parts and you may need to trim your wood sill to match.

It's the same story for the lock, but we have a more confident substitute for that: our 38-097 and 38-098. However these aren't compatible with your existing keeper so you will also need a new 38-079.

Please let me know if you had any questions.

38-079 : Casement Sash Lock Keeper
Casement Sash Lock Keeper
38-079
$2.10
VIEW >
38-097 : LH EntryGard Sash Lock
LH EntryGard Sash Lock
38-097
$11.59
VIEW >
38-098 : RH EntryGard Sash Lock
RH EntryGard Sash Lock
38-098
$11.59
VIEW >
39-027E : Ellipse Style Single Arm Operator, 9-1/2
Ellipse Style Single Arm Operator, 9-1/2"
39-027E
$20.04
VIEW >
39-028E : Ellipse Style Single Arm Operator, 9-1/2
Ellipse Style Single Arm Operator, 9-1/2"
39-028E
$20.04
VIEW >
