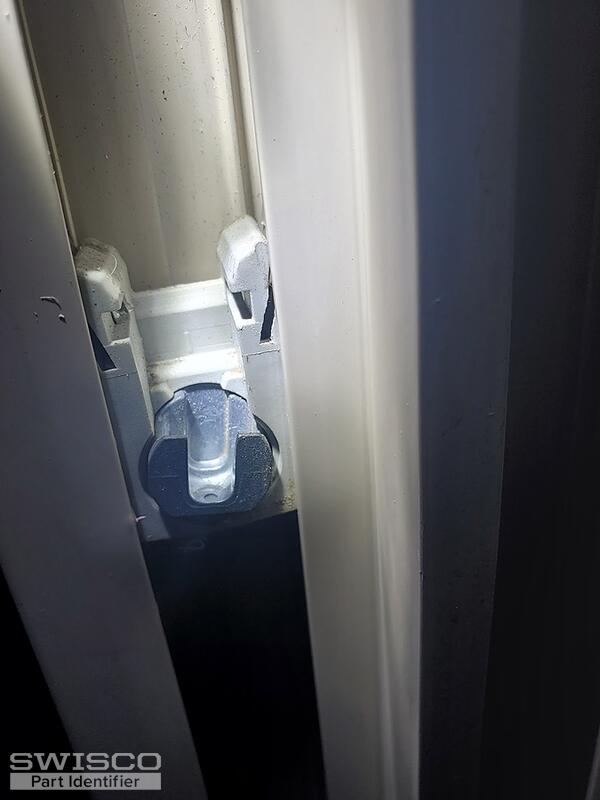

green label is from older windows. the older looking pivot shoes are from these windows. there are 8 windows. lhe wound up spring thingy to help the windows open and close also need repair / replace.
thanks
richard
looking for parts for 2 window brands
Home Owner from Lakewood colorado 80215
Oct 21, 2025 4:22 pm
5 user uploaded images
4 Replies
Jasmine from SWISCO
Oct 23, 2025 9:41 am
Hi Richard,
Thanks for your post! The older pivot shoe has been discontinued and is no longer available. We suggest replacing it with the newer shoe, which is the 15-177 Coil Balance Shoe.
Alternate image for 15-177
This shoe is compatible with the Series 152 Coil Balance which is attached using the 33-072 screw. You'll need the 15-143 Coil Bushing, 15-144 Coil Bushing Cap, and 15-145 Coil Support Barrel to replace the coil balance cover, if you cannot reuse the existing cover.
Take a look at the video tutorial below for instructions on selecting the correct coil balances for the windows.
Quick Learner from lakewood colorado
Nov 6, 2025 2:18 pm

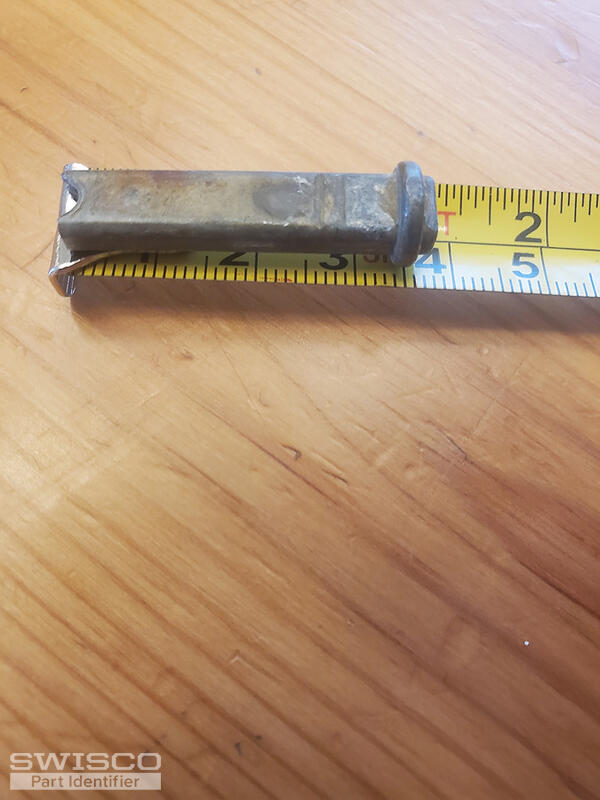

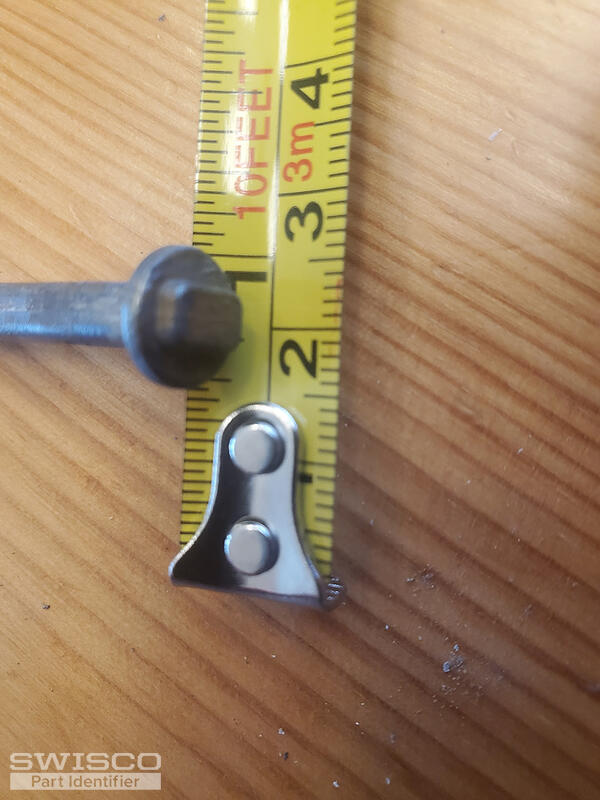

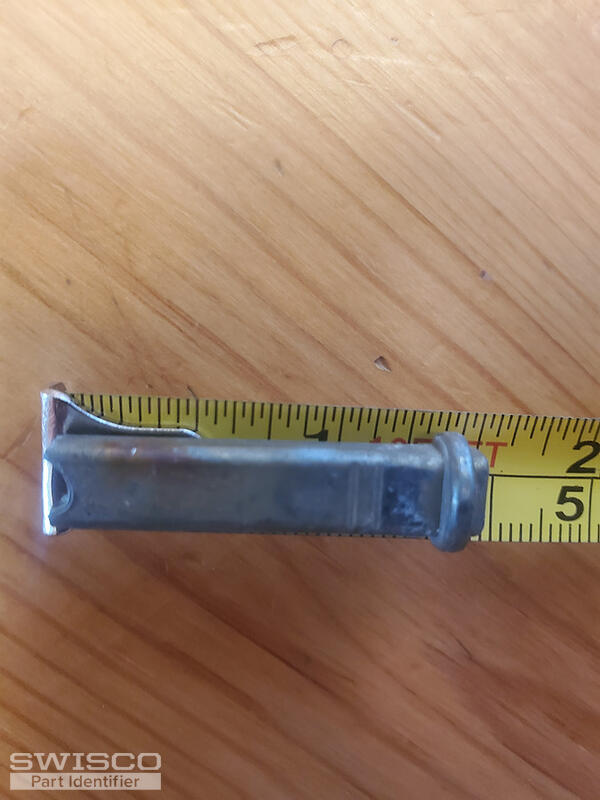

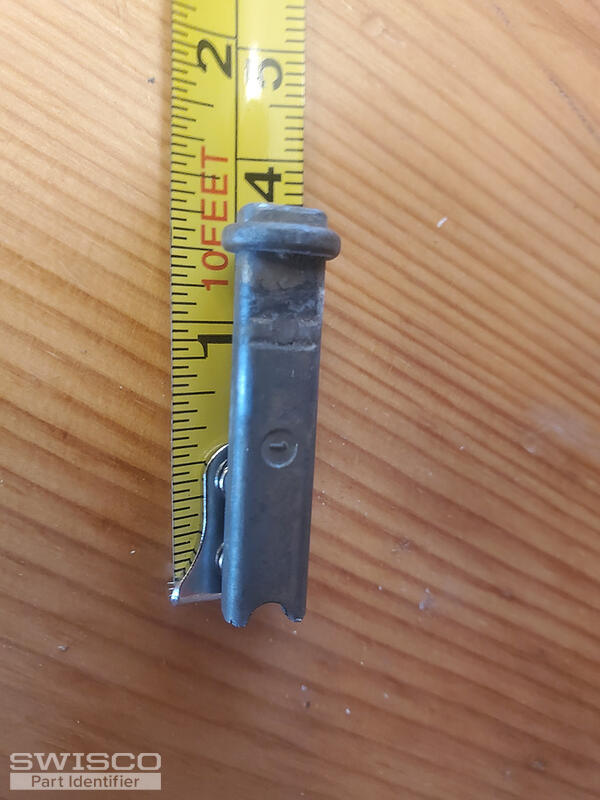

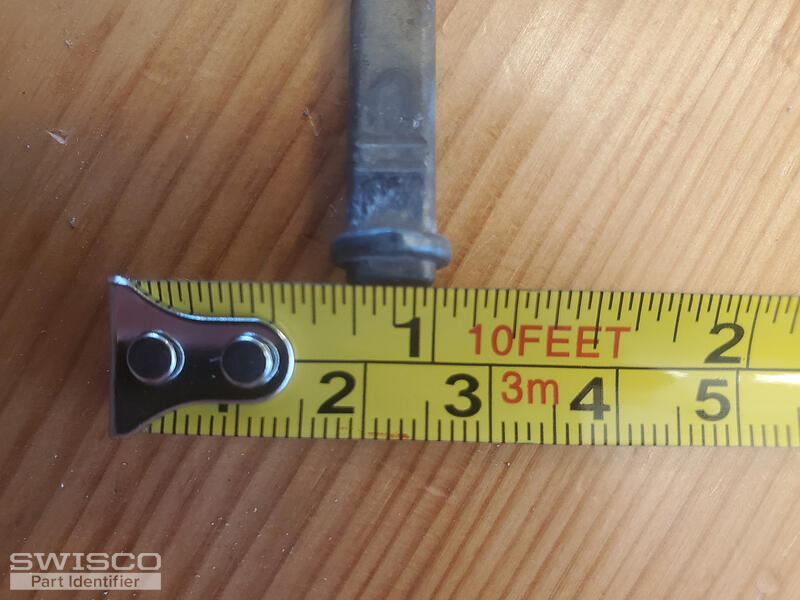

found another part i need to replace. the piece that fits into the pivot shoe. some of those are broken and need replacement
5 user uploaded images
Jasmine from SWISCO
Nov 6, 2025 3:04 pm
This pivot bar end is similar to the 26-226 Pivot Bar. Although, to determine if this is the correct replacement, you'll need to find an undamaged part. Carefully compare the specifications shown below.
End view of the 26-226 pivot bar
