looking for replacement for Truth window casement operator

Home Owner from California

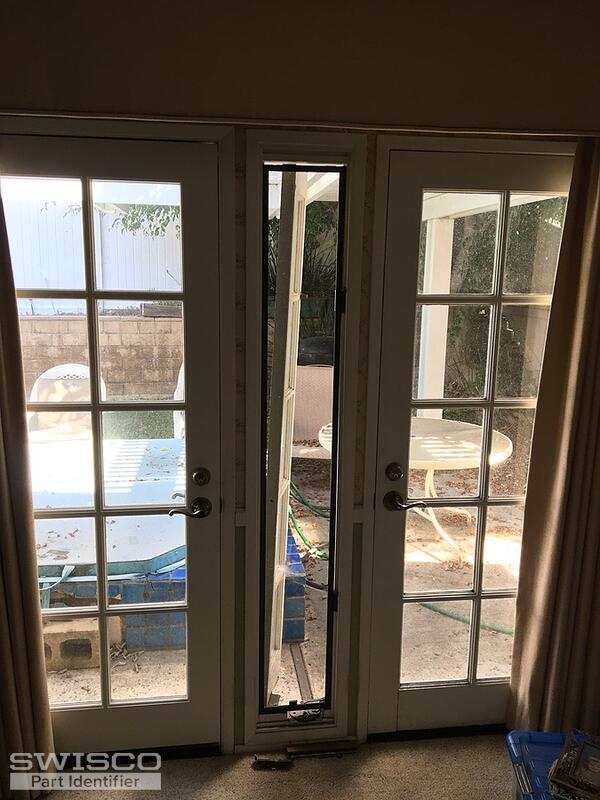

The casement operator I need to replace was made by Truth. It is being used on a long, narrow window (10 5/8" x 75 1/2") between two french doors. The operator is about 5" wide and about 2 1/2" deep.
I see the following numbers on the operator:
30471 -- on the rounded hood above the worm drive
306 36 -- on the curved arm attached to the larger gear
30639 R -- on the larger gear
8 3 -- on the gear side of the bottom plate
4 5 -- on the other side of the bottom plate
20544 -- on the straight arm

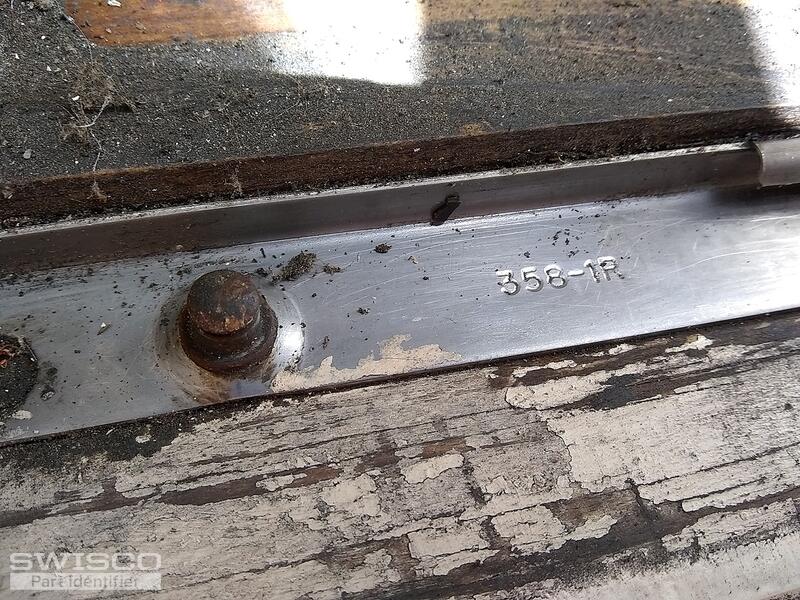

358-1R -- on the metal plate at the bottom of the door jamb
The U.S. patent number is 4,241,541, Canadian patent number is 350,432. Patents issued 1982.
5 user uploaded images
2 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hello!

The operator shown in your photos looks like an older version of the 39-036. We also sell the 39-107 cover and 39-114 handle. As for the hinge, start by seeing if the specifications of our 36-048 match up with yours. We just always recommend replacing the top and bottom hinges at the same time.

Dimensions for 39-036
Dimensions for 39-036

Detail of 36-048
Detail of 36-048

Additional dimensions for 36-048
Additional dimensions for 36-048
