looking for replacements for this part. part of a coil balance system from window

Start a new Discussion

Quick Learner from schaumburg, il

Jun 6, 2023 9:59 pm

looking to see what you would have to replace this in a coil balance window. it is about 1 7/8" long and 9/16" wide.

3 user uploaded images

4 Replies

Jasmine from SWISCO

Jun 8, 2023 12:38 pm

Thanks for reaching out! We do not carry an exact match for the coil balance cover you are searching for, unfortunately. There is a chance that we may carry a replacement however, I'll need a bit more information to determine if there is a compatible cover.

To start, may I please see a photo of the shoe and the coil spring used with this cover?

Quick Learner from schaumburg, il

Jul 12, 2023 6:39 pm

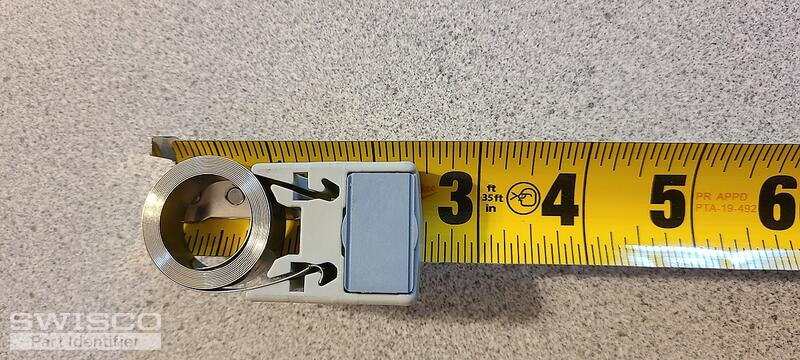

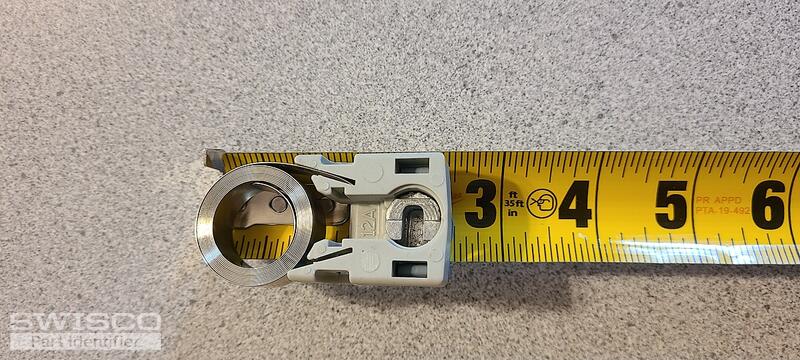

Here are a couple pictures of the assembly.

2 user uploaded images

Jasmine from SWISCO

Jul 13, 2023 9:21 am

Thanks for the photos. I am sorry to say that we do not have an exact replacement for the coil support you have. However, your 15-177 coil balance pivot shoe can use the 15-143 coil bushing, 15-144 coil bushing cap, and the 15-145 coil support. I am confident these parts will work as a replacement for your coil assembly.
