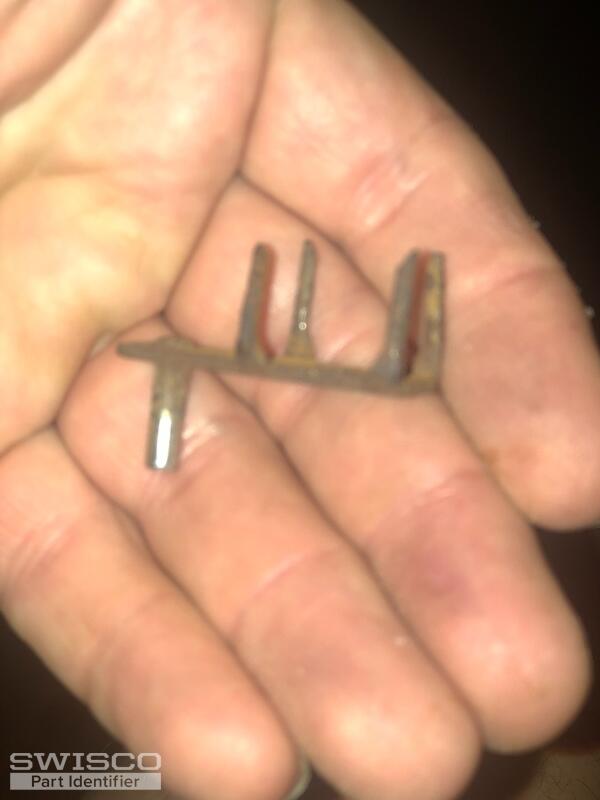

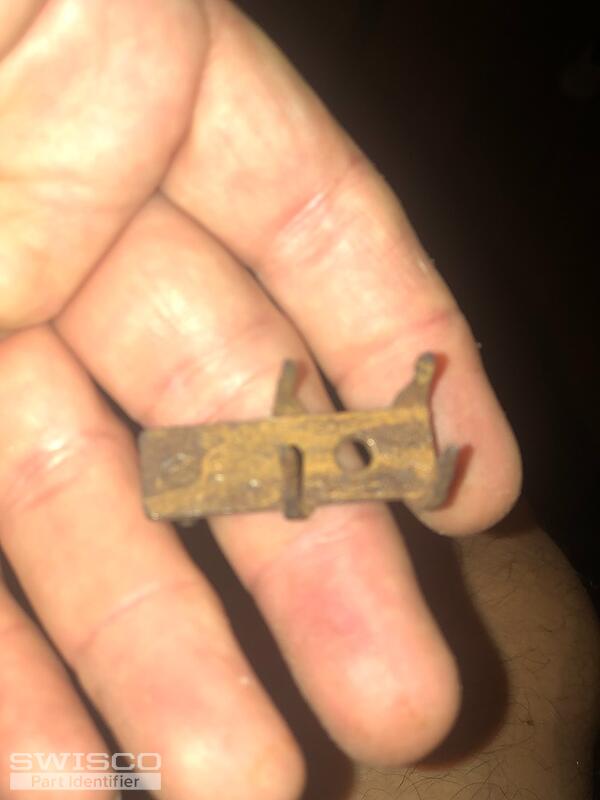

metal piece that goes into the sash and allows for the sash to connect onto the pivot shoe

Question

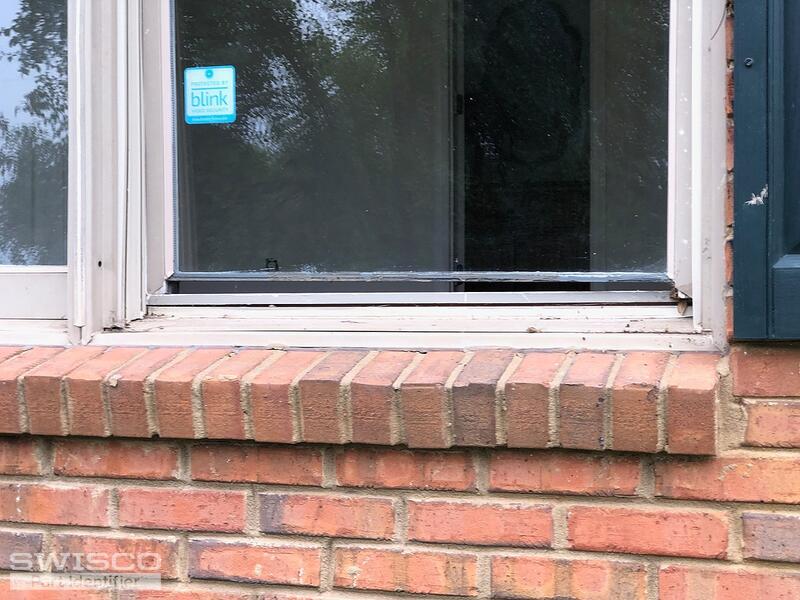

this is on an older wood sash, circa 1992 and is to be "nailed" or pushed so that the barbs go into the sash.  The other end then sticks out and is what connects into the pivot shoe in the track

Jasmine · Accepted Answer

Thanks for writing in to us! The metal piece you are searching for with the prongs is a wood window pivot bracket. Yours very closely resembles the 26-355 Pivot Bracket but you'll need to carefully look over the dimensions to determine if this is the right fit for your repairs.

Dimensions for 26-355

Alternated view of 26-355.

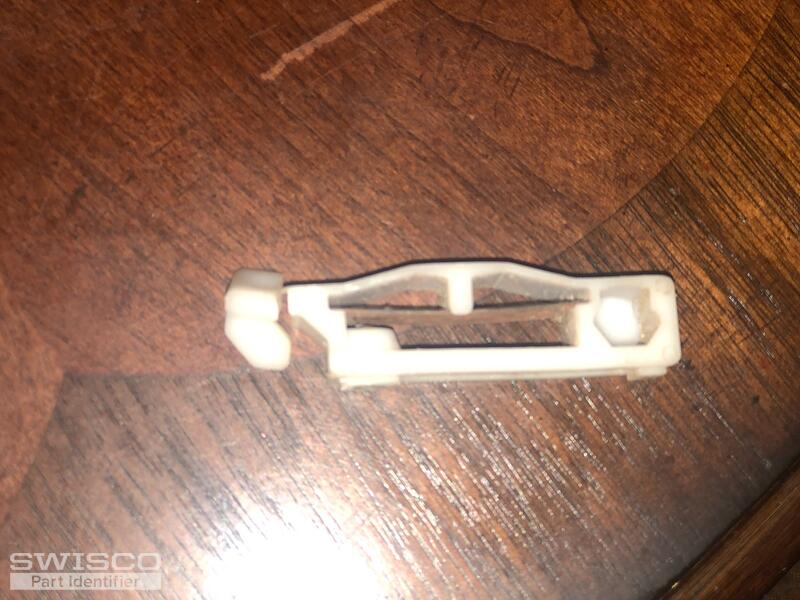

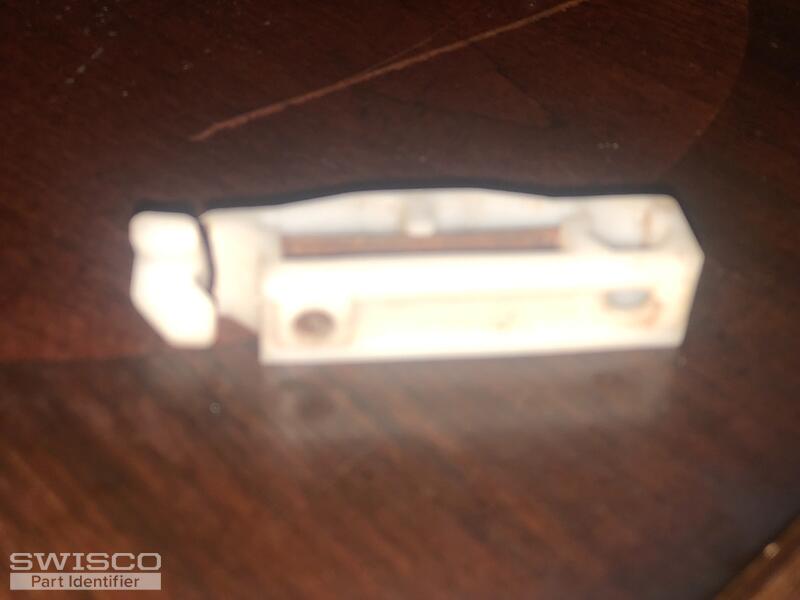

The shoe you have here is the 15-104 Caradco Friction shoe. Look over the dimension and compare them to confirm that this is the replacement you need. If you find you need to replace the jambliner balance springs in your window, you'll need to contact a local millwork in your area to see if they might be able to get you set up with the replacements.

Profile view of 15-104

Face view of 15-104
