milgard vinyl tilt windows

A quick learner from Hawaii says:
July 20, 2019
im replacing some parts-are these going to work yours are a little different.

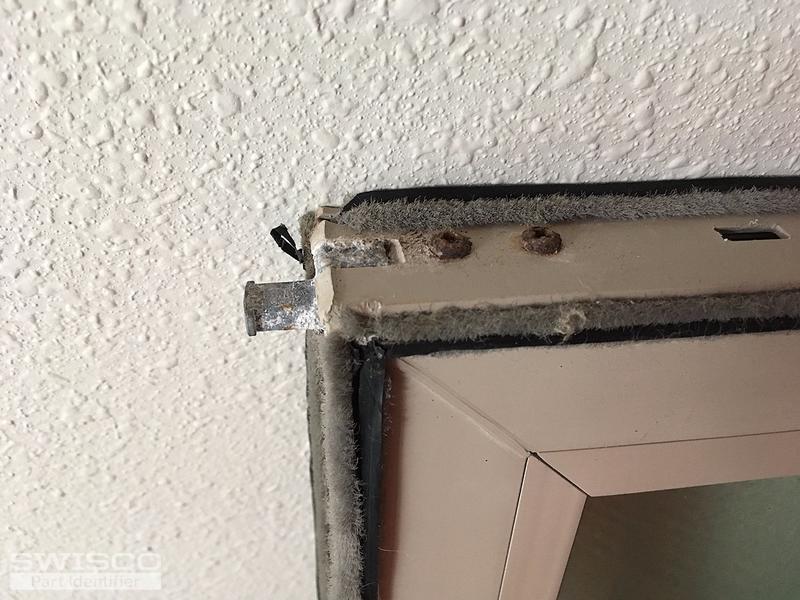

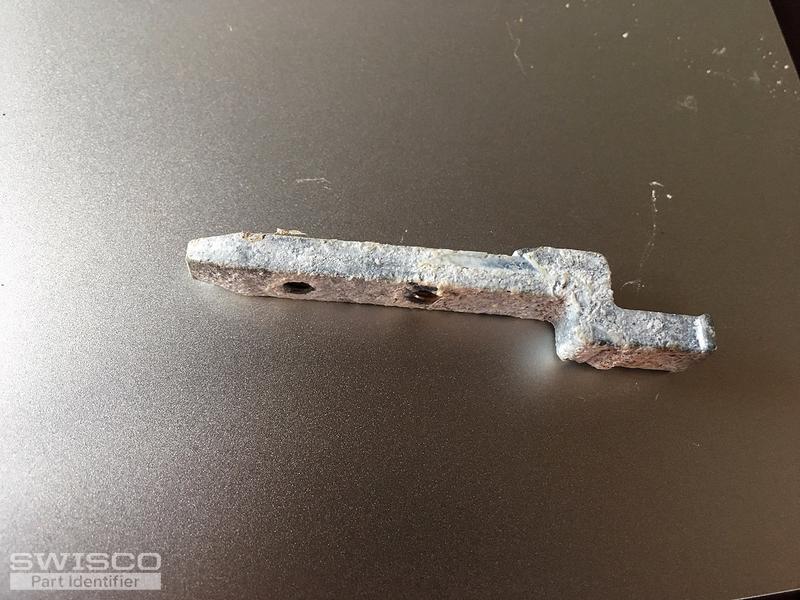

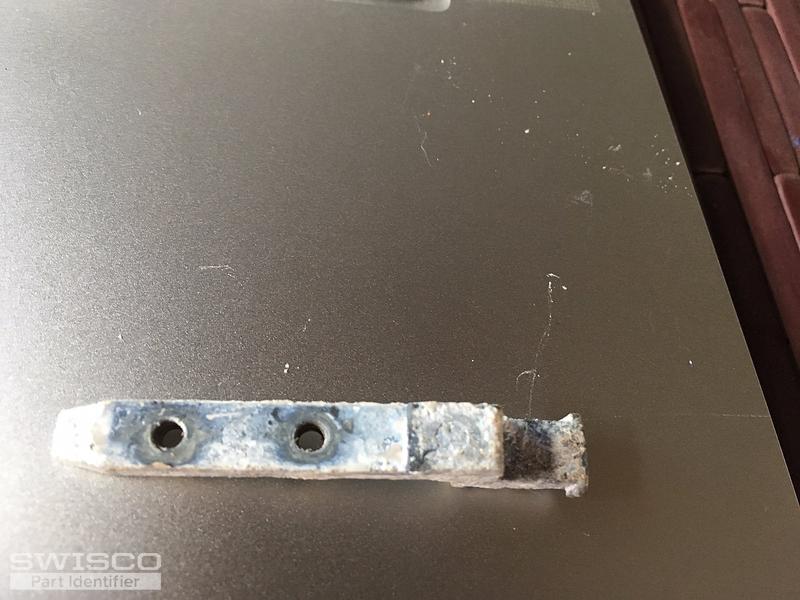

pivot bars-26-306 ?
balance upr hook clip-ill send more pix
upr window catch clip?- i did not see anything close-

Thanks RC
Thumbnail of the uploaded file named IMG_0570.JPG
Thumbnail of the uploaded file named IMG_0571.JPG
Thumbnail of the uploaded file named IMG_0572.JPG
Thumbnail of the uploaded file named IMG_0573.JPG
Thumbnail of the uploaded file named IMG_0574.JPG
Profile picture of Paul
Paul from SWISCO responded:
July 26, 2019

Let's start off with your pivot bar. I can not determine if the 26-306 will work without knowing the measurements of your part. Get back to us with hole center placement in relation to the front clip. From there, we can provide more answers. The clip you show stumbles me. I am not sure what is is right now. Could you tell us what function it serves on your window? Maybe that will give us more clues on identifying it.
A quick learner from Hawaii says:
July 27, 2019
Thank's for your help, in response to the pivot bar, all the measurements look correct except the 5/16 end measurement on the 26-306 vs 9/16 on the milliard pivot bar think it should work.

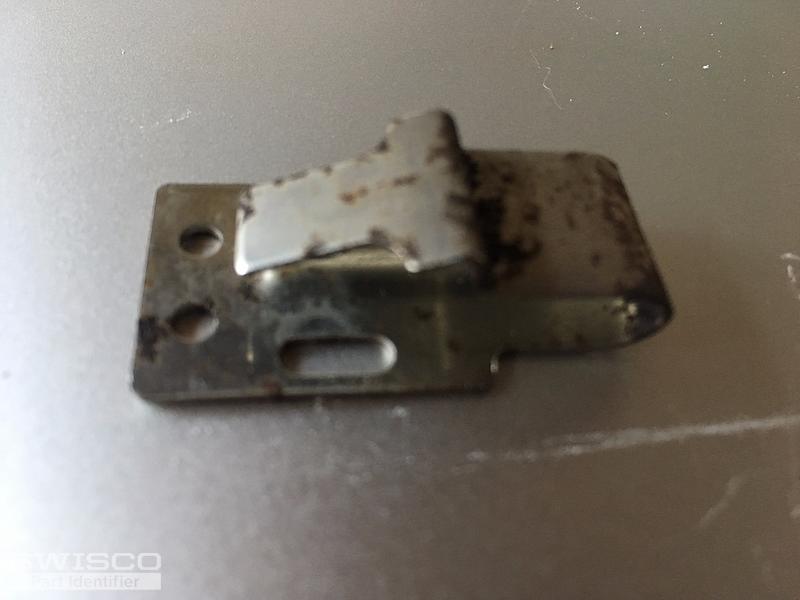

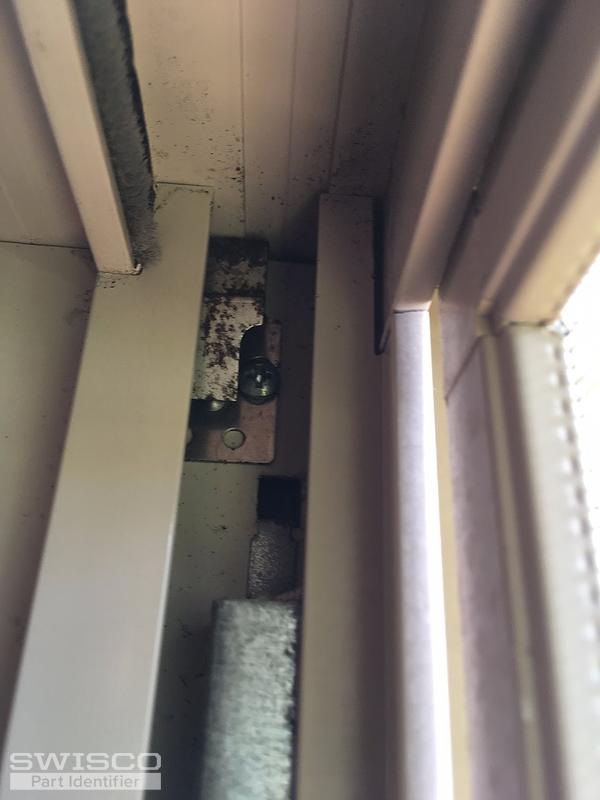

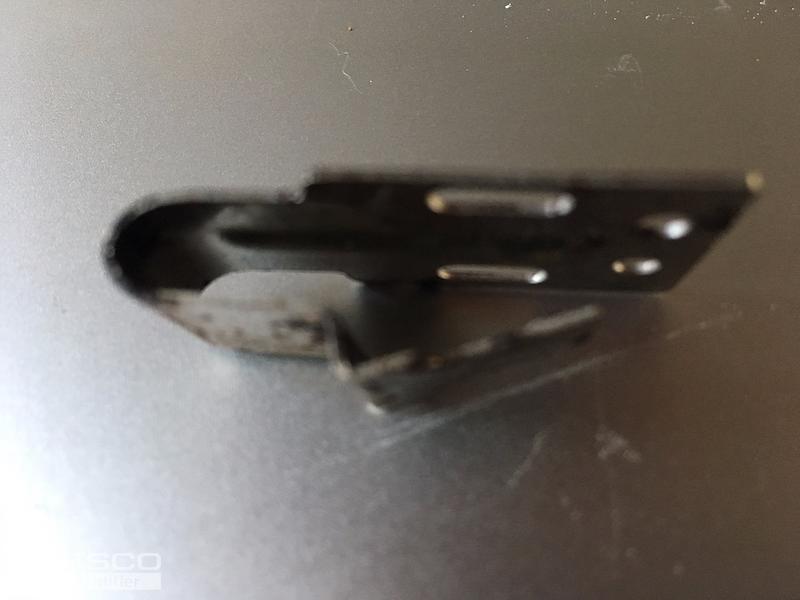

The clip is located on the upper corner window frame, it holds the upper window in place, one on each side.

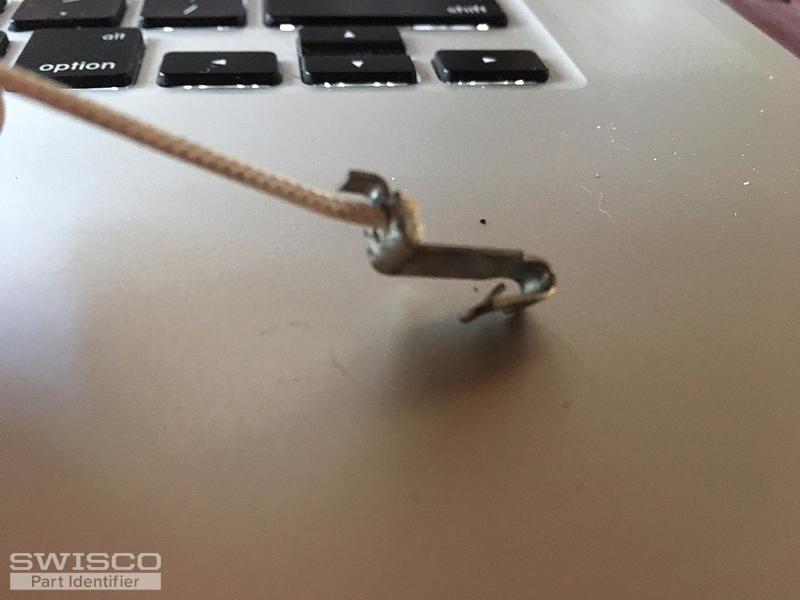

Also i ordered the s-795 channel balance for the same windows and noticed the the tension cord hook is different on the milliard parts that going to be a problem?was thinking of using the 62-106 it looks similar.

Thank you RC
Thumbnail of the uploaded file named IMG_0577.JPG
Thumbnail of the uploaded file named IMG_0578.JPG
Profile picture of Paul
Paul from SWISCO responded:
July 29, 2019

The top mounting clip on the cord of the balance would be our 15-198. If you just needed that, you could tie the old one off and tie the new one on. Just make sure that the cord is secured in a vice so that the clip doesn't snap back into the balance. We also recommend using gloves and protective eyewear.

If you just want an all new balance, let us know and we can work from there.

I believe you can use our 26-306 pivot bar.

Unfortunately, I still don't know what that clip is. I'm sorry we can't be of more help.
