Patio Door Replacement

Home Owner from Troy, MO

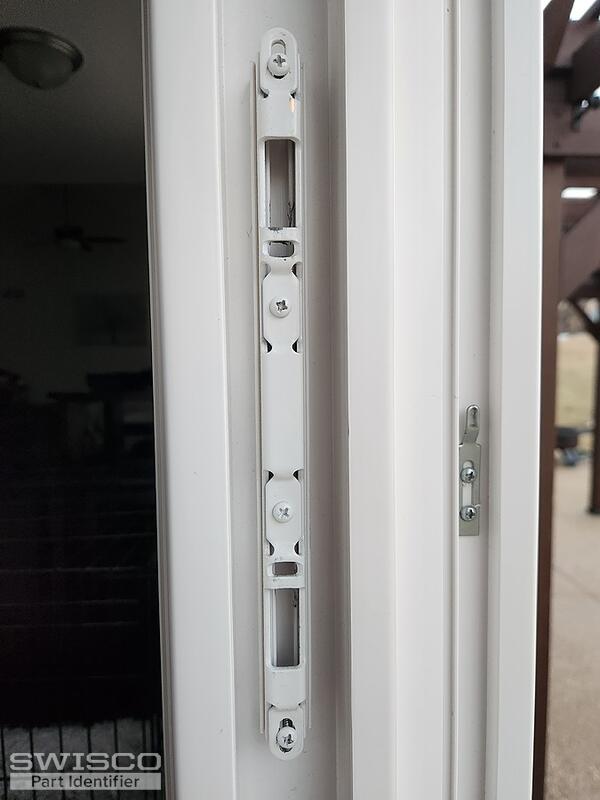

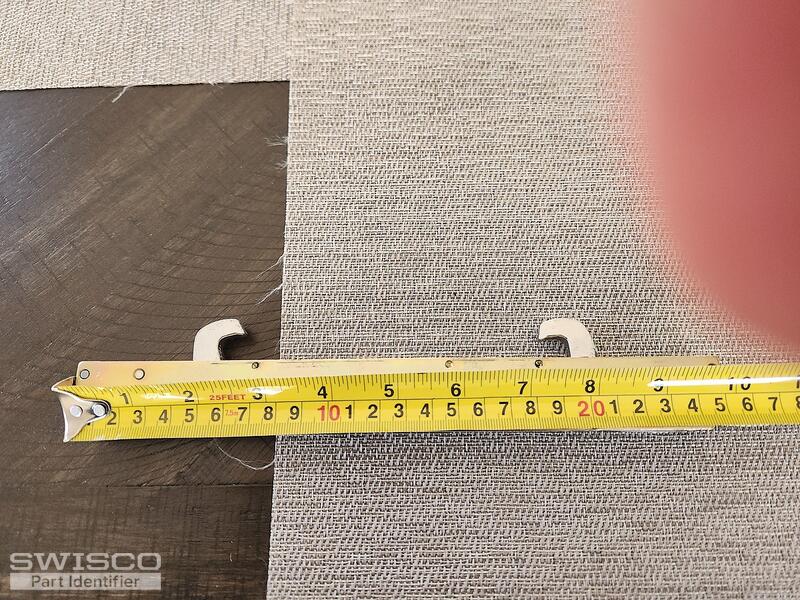

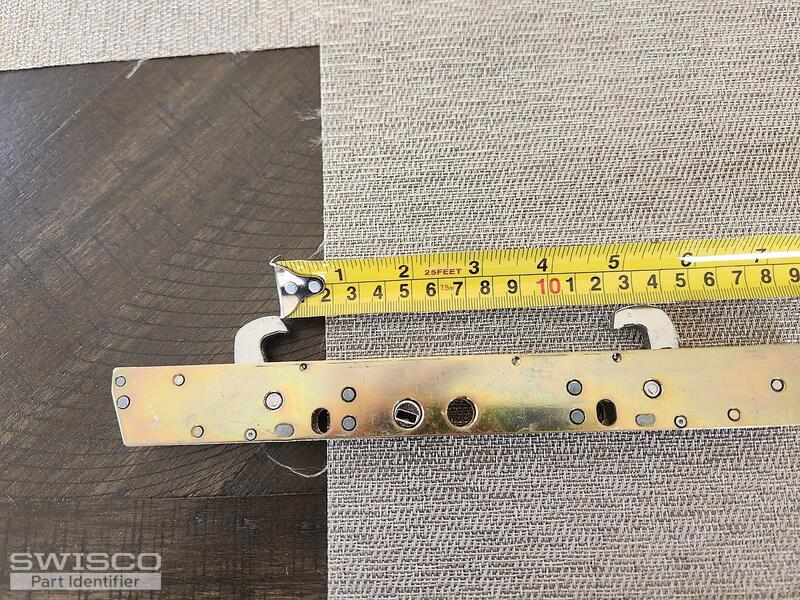

Looking to get a replacement multi-point mortise lock for my exterior patio door. Brand is unknown and the builder who supplied the door is not much help either unfortunately. If the mortise lock come with and entire door handle latch assembly, that would be fine also. The mortise lock doesn't lock into a hidden pocket; it latches/connects with a multi-point slot bracket that is screwed into the side of the door frame. please feel free to reach out with additional questions. Thanks in advance for any help and assistance you can provide.
5 user uploaded images
6 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Hey there,

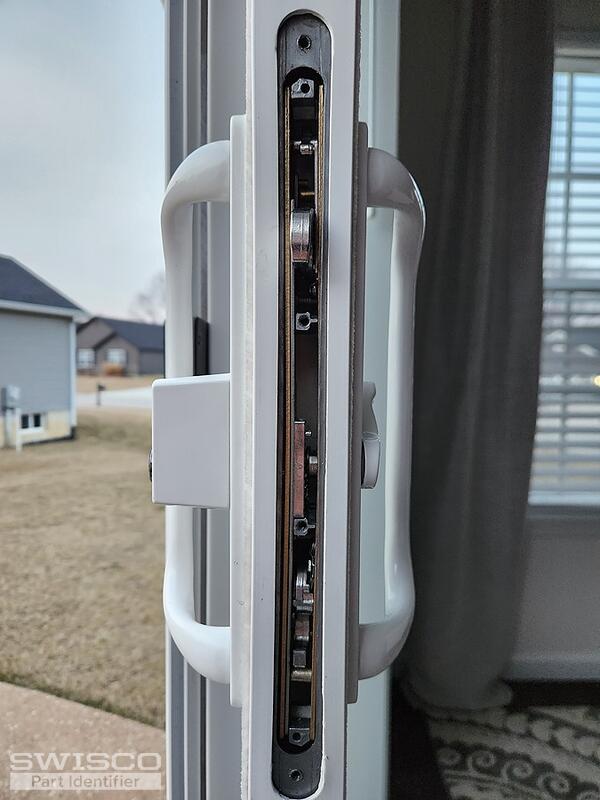

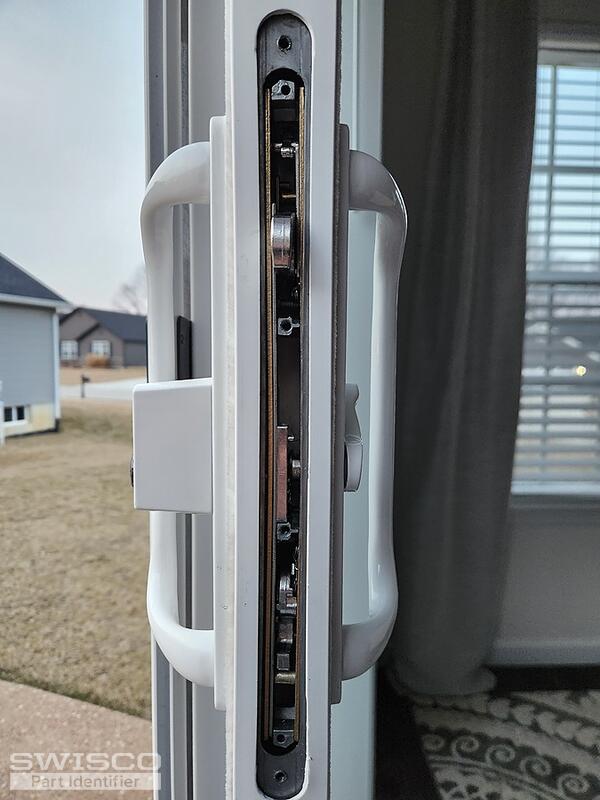

Thanks for writing in! There is a chance we may be able to supply you with the replacement mortise lock needed for your patio door. Although, I will need to see a photo of the space in the door where this mortise lock is installed.

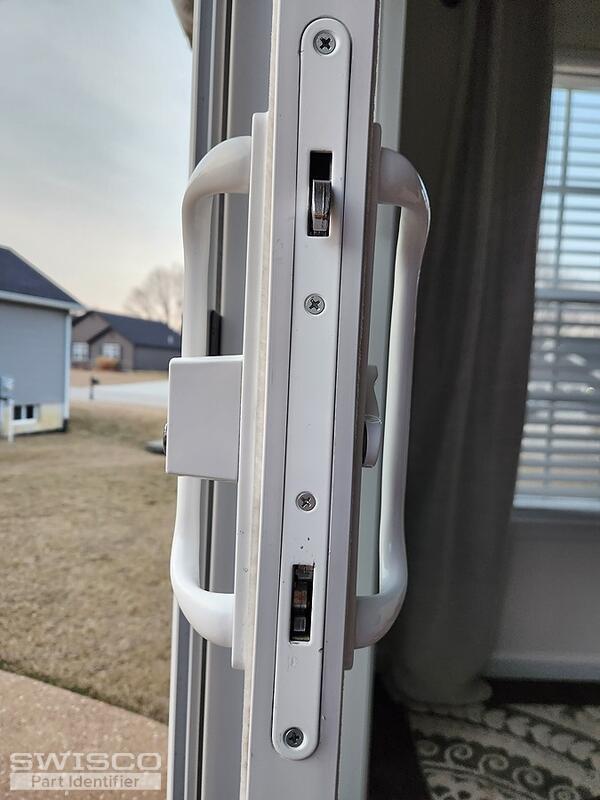

It appears that your lock may be missing a faceplate. If so, I'll need to see a photo of that faceplate since it is important to help identify the exact replacement lock you need.

Please let me know if you have any questions in the meantime.

Home Owner from Troy, MO
Hey Jasmine -

Thank you for reaching back out. Please find the additional attached pictures requested.

Thank You!
4 user uploaded images
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for the photos. Your patio door mortise lock resembles the 82-265 Multi-Point Mortise Lock. The compatible keeper is the 82-249, which you may need to replace as well. To confirm if these are the right replacements, carefully review and compare the dimensions.

The lock features an anti-slam button that stops the door from locking when not engaged. It helps to prevent the hooks from becoming damaged when closing the door.

Alternate image for 82-265
Alternate image for 82-265

Alternate image for 82-249
Alternate image for 82-249

Home Owner from Troy, MO
Thank you Jasmine -

I'll look into ordering these and try them out.

Thanks Again!
Jasmine
Jasmine from SWISCO
SWISCO
Expert

I'm happy to help! Please feel free to reach out with any other hardware repair projects.

Have a great day!
