need help

A quick learner says:
July 14, 2023
Hello,
I want to order several parts:

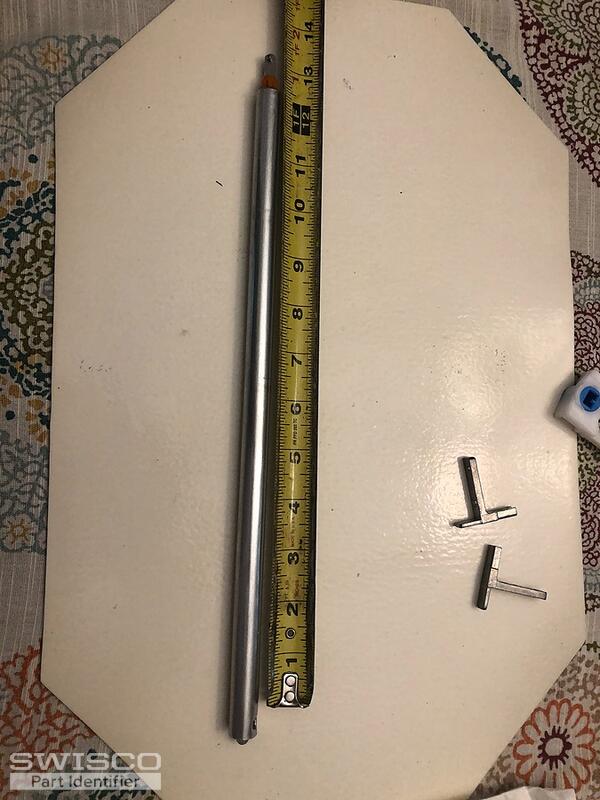

4 X 13" Blue tip Balance 1/2 Diameter, 13" long Original one was blue, purchased local one Orange.- Worked OK

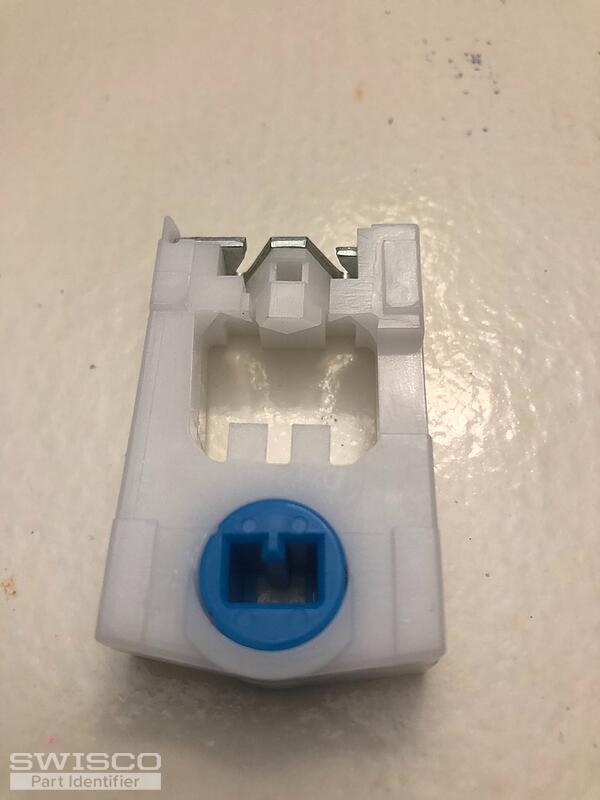

4 X Cam shoe 1 1/4 wide, 1/2" thick, 2" long

4 X Pivot Pin "U" shape, 5/16 or .300 wide, 3/16" deep. Wall is 1/16 wide. Has 2 - 3/16 holes for attachment screws.
Thumbnail of the uploaded file named IMG_0134.JPG
Thumbnail of the uploaded file named IMG_0136.JPG
Profile picture of Lauren
Lauren from SWISCO responded:
July 14, 2023

Hello, thank you for posting,

Please start by reviewing the S600-13 spiral balance that has a 9/16" diameter tube along with the 26-326 pivot bar to see how it compares to your originals.

Alternate image for 26-326
Alternate image for 26-326

For the pivot shoe, I believe you have the 15-015 that has a 17/32" thickness, but we also carry the 15-046 with a 1/2" thickness which was provided. Look over both to determine the best fit.

Please let me know if you have any additional questions!

Pivot Bar
Pivot Bar
26-326
$1.95
Pivot Shoe, 17/32" Thick
Pivot Shoe, 17/32" Thick
15-015
$1.55
Pivot Shoe, 1/2" Thick
Pivot Shoe, 1/2" Thick
15-046
$2.15
13" Series 600 Spiral Tilt Window Balance
13" Series 600 Spiral Tilt Window Balance
S600-13
$7.92
