need help

Quick Learner from san diego
non tilt balances

28" channel length
1/2" channel width
Balance fitting
1" hook side
1/2" top side
weight of sash
For example, if your stamp is "28 3" or "28 C", you'd choose the strength option "2830" to support a window weighing between 16 lbs. and 23 lbs for some standard balance series.
2710R B.S.R B.S.I printed or whatever you could read from the photo
actual window weight: 7.6 lbs

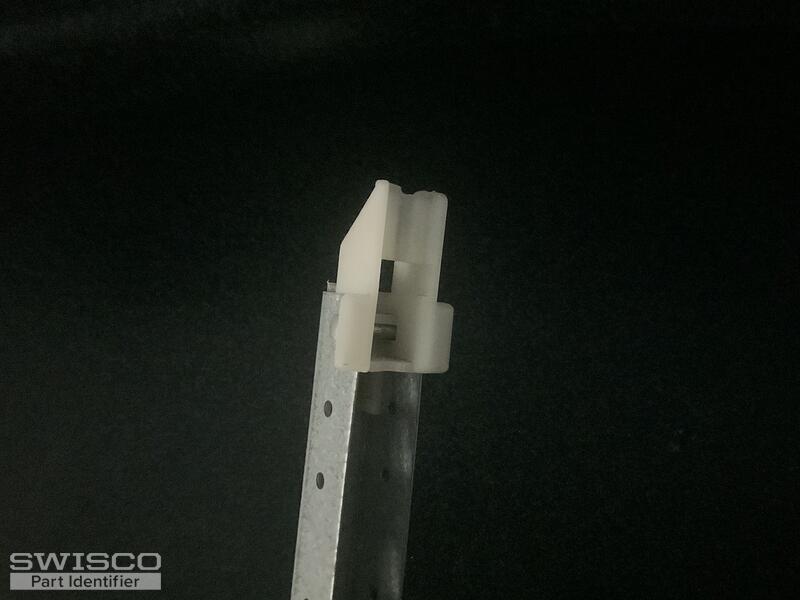

winged
plain channel

4 user uploaded images
3 Replies
Quick Learner from san diego
Looking for help identifying which parts I need to replace all of the components
Emily
Emily from SWISCO
SWISCO
Expert

Hello there!

Since the top and bottom fittings are winged, I recommend the S380-28 or S385-28 channel balances. The difference between these two parts is the depth of the bottom shoe as shown below. You can also select the 2710 stamp option for the replacements. A pair of balances with this stamp will support a window weighing 5 to 9 pounds.

Note that we also have the 15-029 which measures 7/8" deep. If your bottom shoe measures 7/8" deep, this must be a custom order.

Let me know if you have any questions!

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
