need help identifying parts

Question

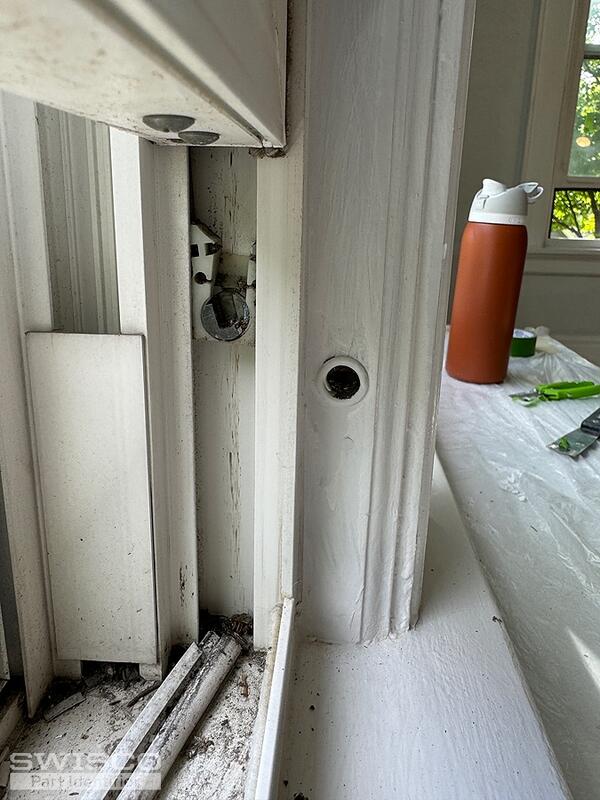

the medal part of the pivot show broke off, and the coil isn't connected to it either. What parts do I need and how do I replace and repair them?

Emily · Accepted Answer

Hey there!

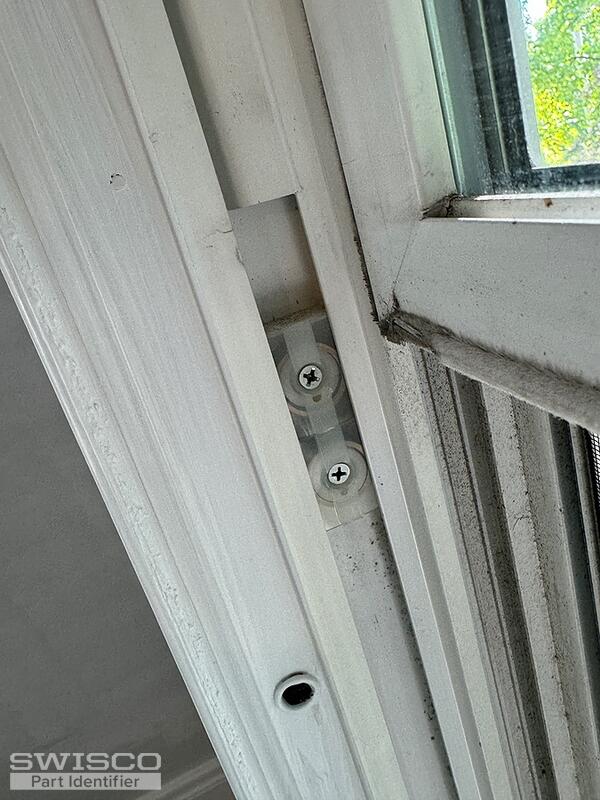

Thanks for reaching out to us. Your old pivot shoe is no longer available but we have the 15-177 which should work for you. The S152 are the compatible coil springs which screws to the side of the shoe like your old one. If you need new spring supports, see the 15-143 bushing, 15-144 bushing cap, and 15-145 barrel. These parts "sandwich" around each spring.

The video below will detail how to remove your hardware by making a cut out in the window track.
