need parts for window repair

A handy person from Bridgewater Township, NJ says:
Photo of broken window sash and working window is attached. label of manufacturer is attached.
Thumbnail of the uploaded file named IMG_20210208_115059.jpg
Thumbnail of the uploaded file named IMG_20210208_115108.jpg
Thumbnail of the uploaded file named IMG_20210208_115152.jpg

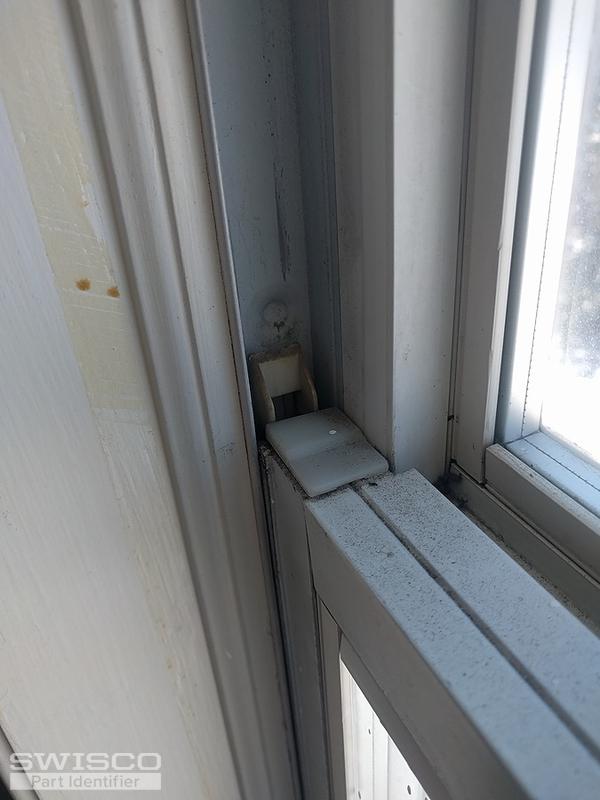

Thumbnail of the uploaded file named IMG_20210208_115201.jpg

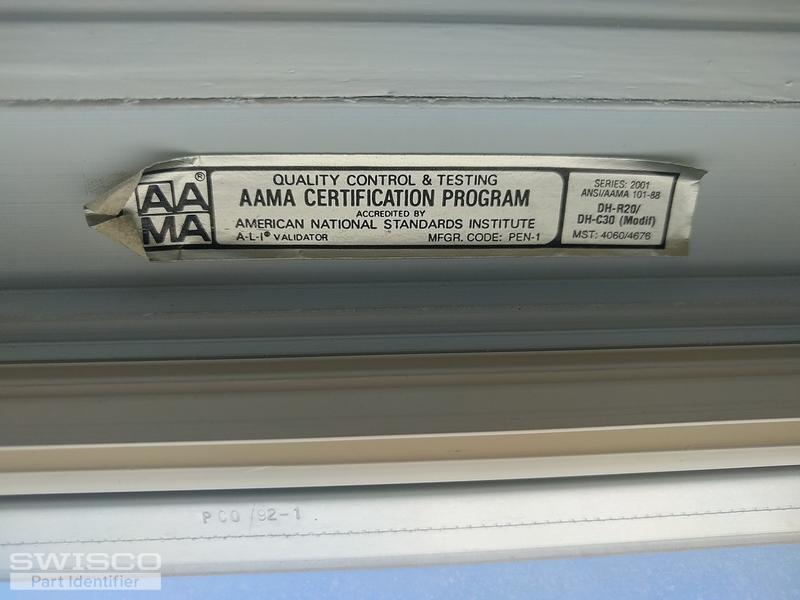

Thumbnail of the uploaded file named IMG_20210208_120955_01.jpg
Profile picture of Bob
Bob from SWISCO responded:

I am afraid that label isn't particularly helpful for identifying the parts you need. However, it looks like the channel balances shot past the window sash because the nylon pieces in the corners of the sash that hold them in place broke. Those parts are called Top Sash Guides. If you remove an undamaged one from the window and show it to me from the front and side (think mugshot pictures), I should be able to ID a replacement.

A handy person from Bridgewater Township, NJ says:
Here are the more photo you have requested. Please let me know part number to order. Do you have a option to pick up part from your location in New Jersey?
Length of rod is 29 inch X 1/2

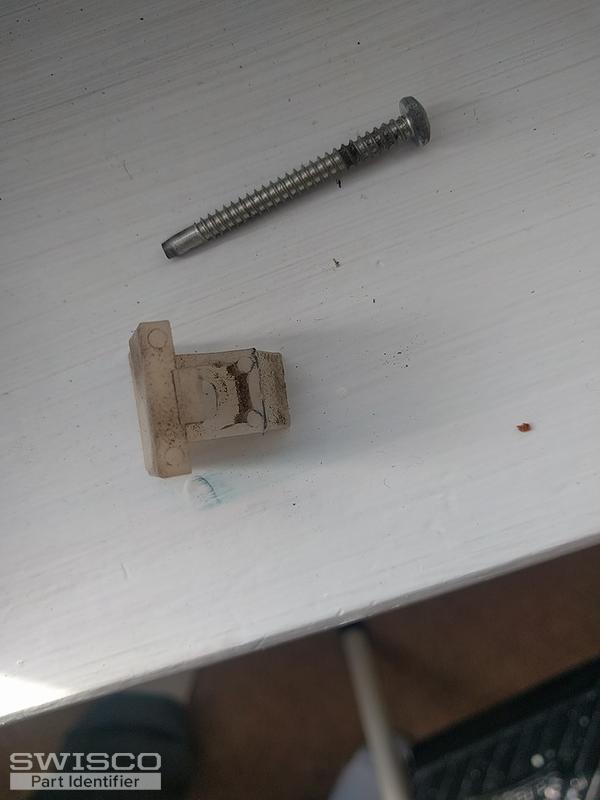

Thumbnail of the uploaded file named IMG_20210214_132944.jpg

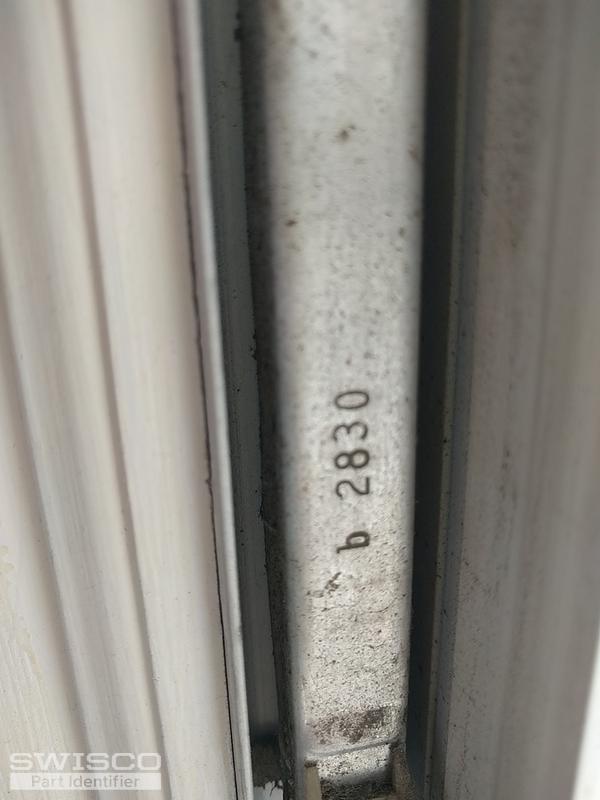

Thumbnail of the uploaded file named IMG_20210214_133723 (1).jpg

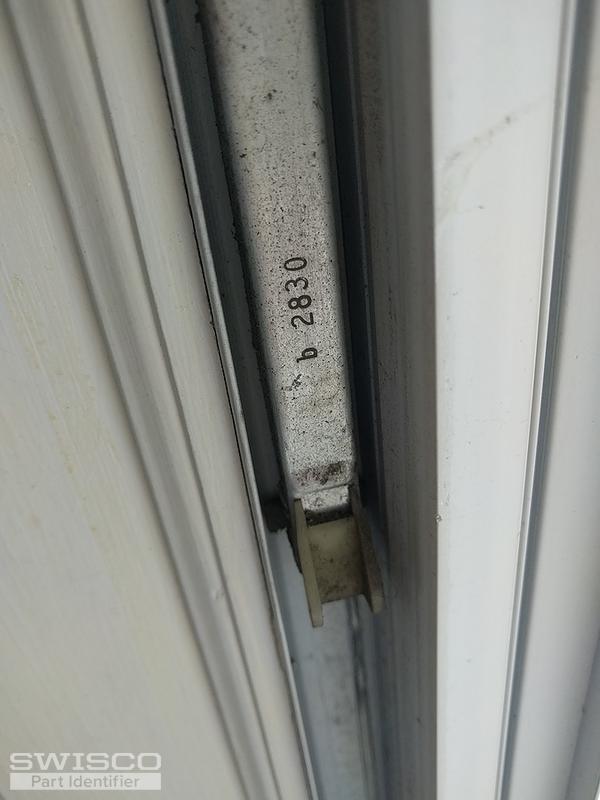

Thumbnail of the uploaded file named IMG_20210214_133816.jpg

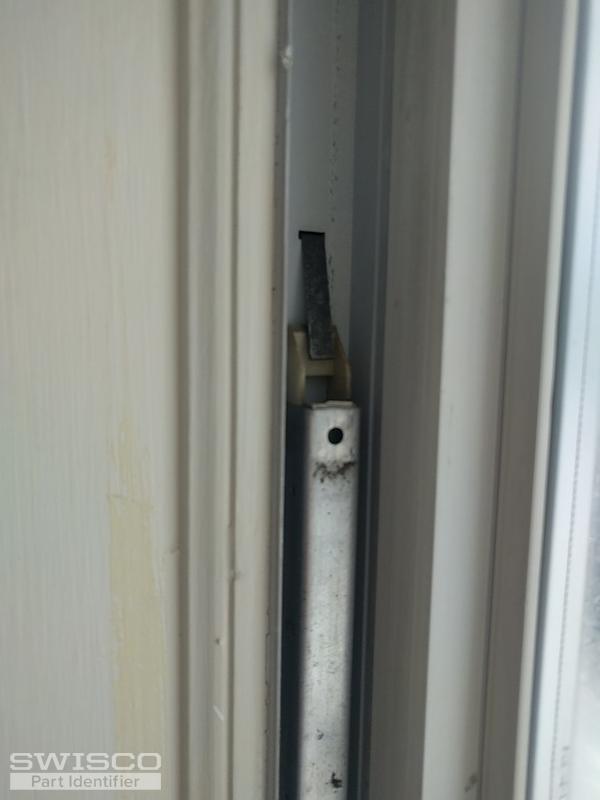

Thumbnail of the uploaded file named IMG_20210214_133821 (1).jpg

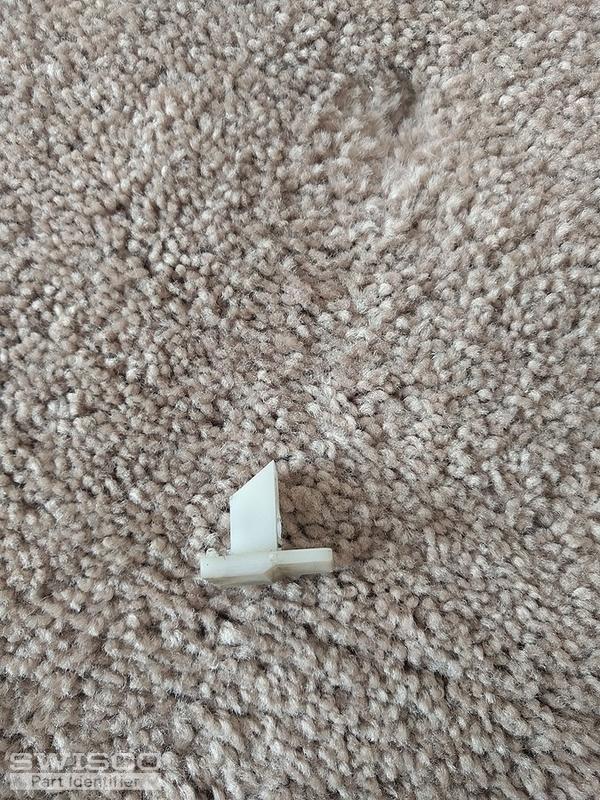

Thumbnail of the uploaded file named IMG_20210214_133843 (1).jpg
Profile picture of Bob
Bob from SWISCO responded:

The Top Sash Guide resembles our 18-061; but please look over the dimensions to confirm it matches up. Again, I don't think there's any reason to assume you need new channel balances as well, unless they're clearly broken; but if you do, I think this is either an S380-29 or S385-29. I can't say for sure without seeing clearer pictures of both the top and bottom fitting to see if they have wings, or 'side tabs'. So if you do indeed need new balances, please show me clearer pictures of the balance out of the window.

Finally, I am afraid we do not have a brick-and-mortar storefront to pick purchases up. However, we do have a variety of shipping options to consider at checkout. Let me know if you have any further questions.

Profile picture of Tom
Tom from SWISCO responded:

Thank you for the additional pictures.

It looks like you have either our Series 380 or Series 385 channel balances. The difference between these two series lies in the bottom shoe attachment.

Comparison of 15-004 and 15-005
Comparison of 15-004 and 15-005

The series 385 balance has the 15-004 shoe which is slightly larger from front to back, as illustrated.

If you measure your shoe as it is pictured here, you should be able to determine which one you need.

Please let us know if you have other questions.
