need window balance

Home Owner from Louisville ky

May 7, 2023 2:24 pm

I'm a return customer and have another broken balancer and shoe that needs to be replaced. I need both sides for the window. I will send photos and info for the window. Thanks!

8 Replies

Emily from SWISCO

May 9, 2023 9:37 am

Hey there!

Welcome back. We will be here to help whenever you can get those photos for us!

Home Owner from Louisville ky

May 9, 2023 10:00 am

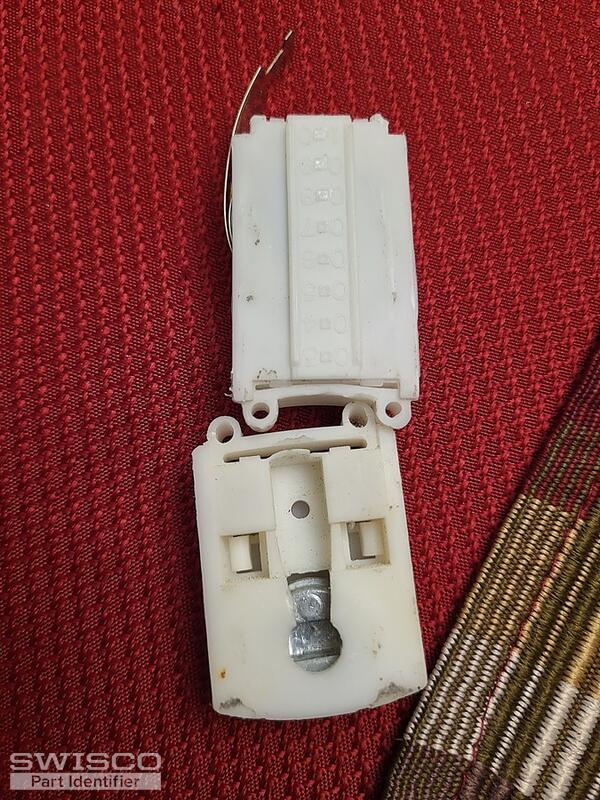

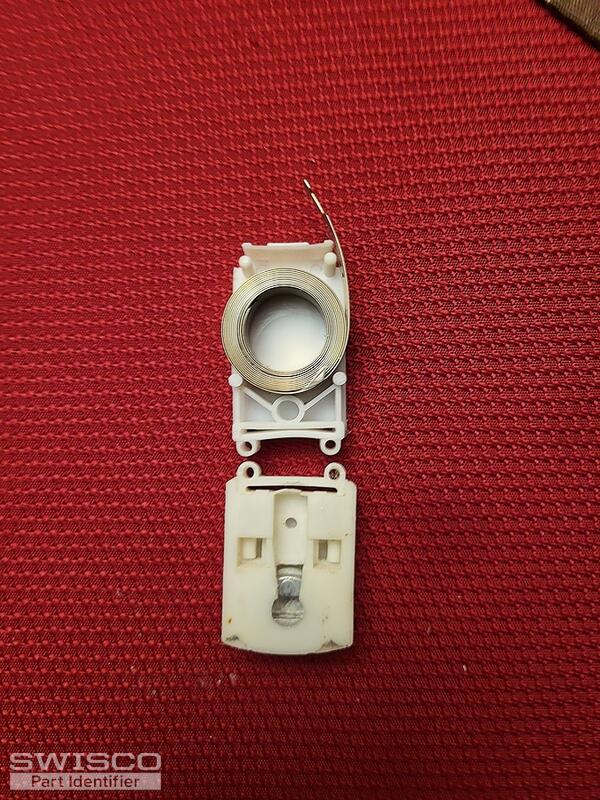

3 user uploaded images

Emily from SWISCO

May 9, 2023 2:32 pm

Thank you for the photos! We don't sell this pivot shoe but take a look at the 15-199. This is designed to work with the 1/2" wide Series 160 and 3/8" wide Series 165. Review the specifications and let me know if you have any questions.

Home Owner from Louisville ky

May 9, 2023 3:32 pm

as long as they can work or replace what I have.i don't have much choices with these windows. I need the coil and housing also basically the whole set up. Thanks!

Emily from SWISCO

May 9, 2023 4:03 pm

The Series 160 and Series 165 are compatible with quite a few coil housings. To help narrow down your options, can you write out the width of your coil spring band? It should be either 1/2" or 3/8". I also recommend checking the band for any stamped numbers.

If there aren't any, we will need to know the exact weight of the sash to determine the proper coil spring weights.

Home Owner from Louisville ky

May 9, 2023 6:20 pm

width is 1/2 the number stamped on the coil is 9 the weight of the window sash is 18.6

Emily from SWISCO

May 10, 2023 8:35 am

Thank you! Since the springs are 1/2" wide and stamped 9, I recommend the S160-9 9-pound spring. One of these on each side of the window will total 18 pounds of overall support. For a new coil housing, see the 15-150S.
