balance parts

Quick Learner from 95842
Jun 3, 2024 12:59 pm
window balance

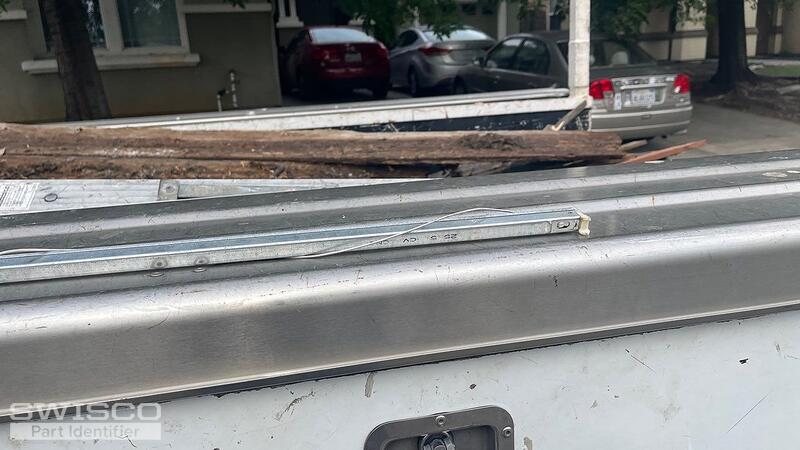

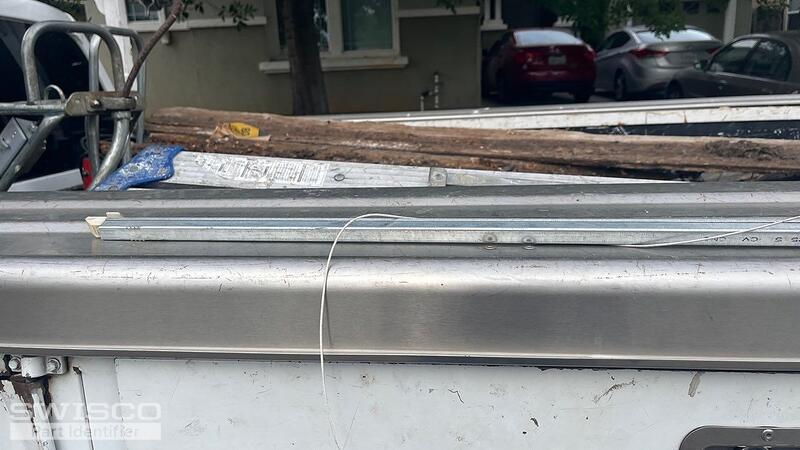

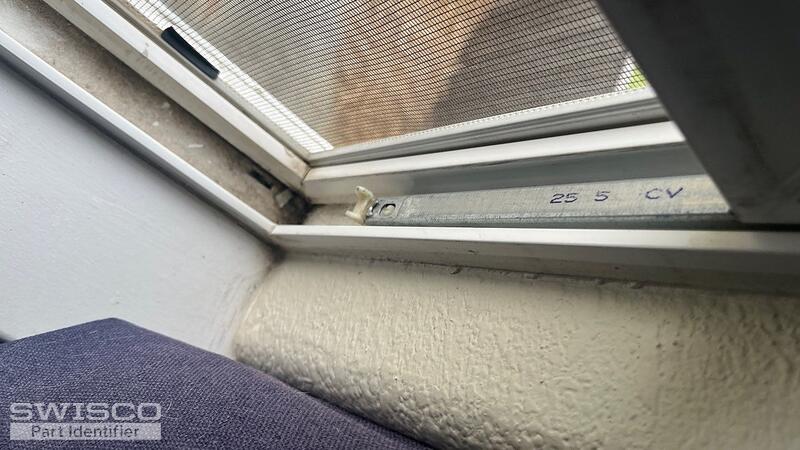

25 5 stamped channel 25 5 stamped channel broken bottom fitting winged top fitting
4 user uploaded images
3 Replies
Emily
Emily from SWISCO
Jun 5, 2024 11:33 am
SWISCO
EXPERT

Thank you for reaching out to us. We should be able to assist with this. However, the bottom shoe is too broken. May we see a photo of an undamaged version removed from the window? Can you also show us a photo of the inside of the metal channel where the inner spring connects to the pulley mechanism?

Quick Learner from 95842
Jun 5, 2024 1:43 pm
added more photos

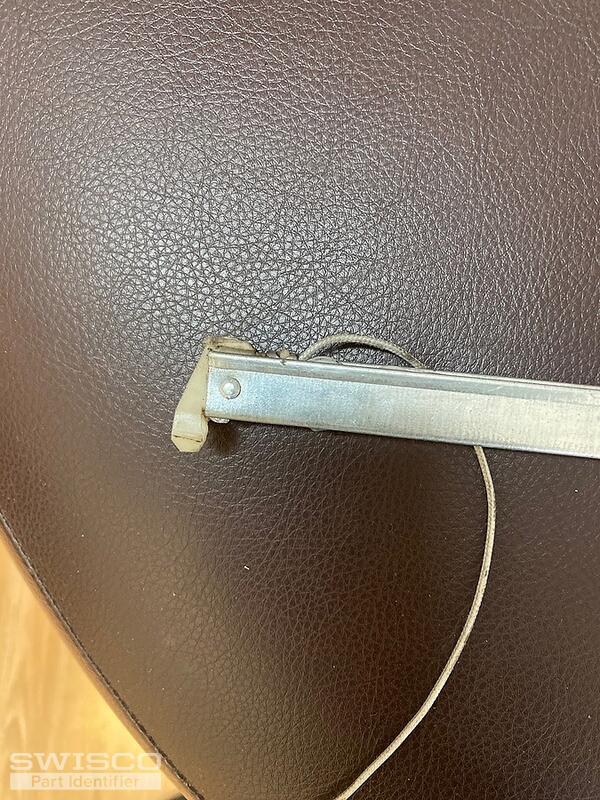

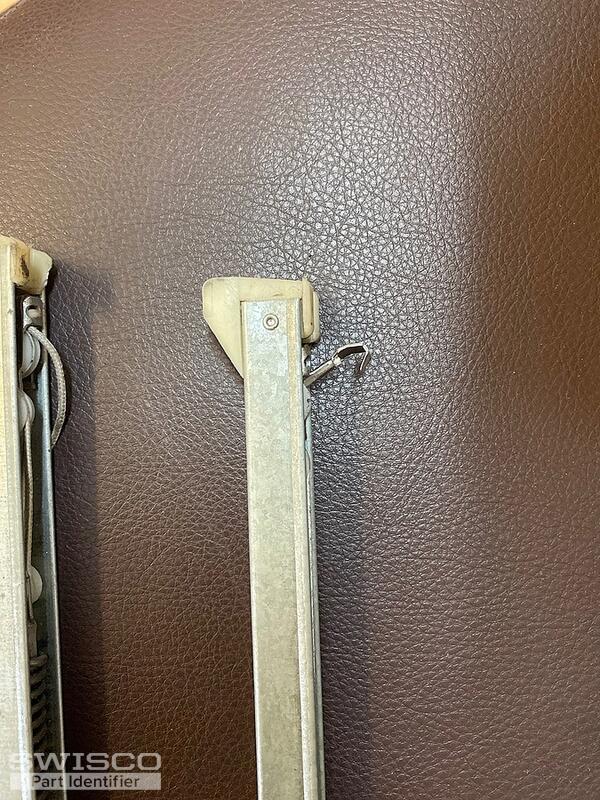

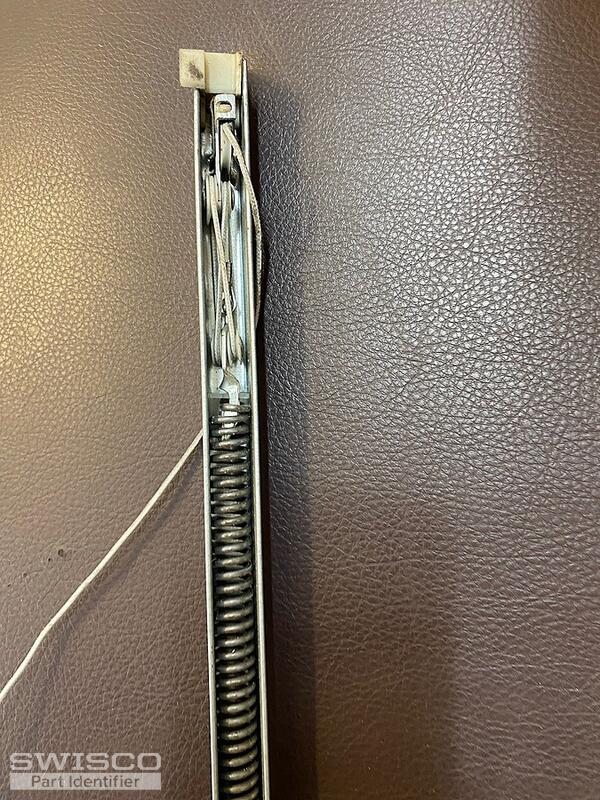

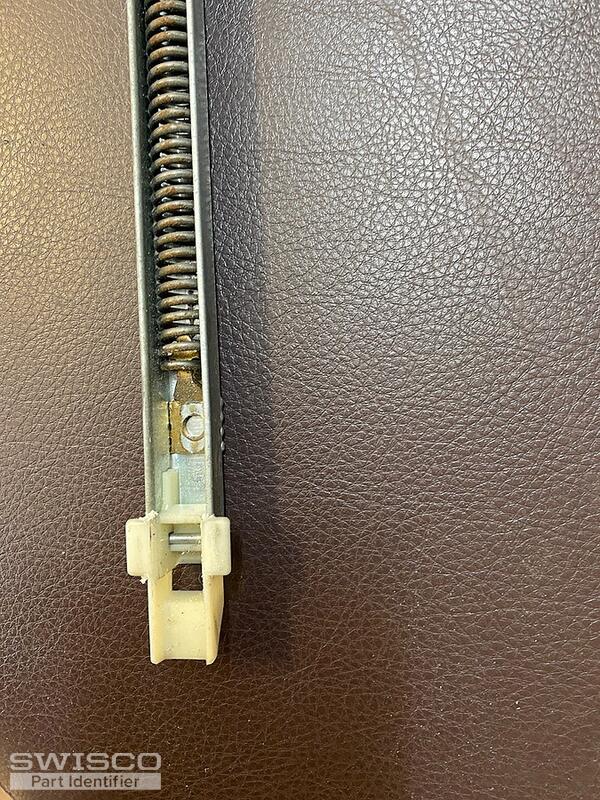

broken bottom shoe winged bottom shoe pulley system winged top fitting balance hook
5 user uploaded images
Emily
Emily from SWISCO
Jun 5, 2024 3:54 pm
SWISCO
EXPERT

Thank you very much! Based on what I see here, you can use the S380-26 or S385-26 channel balances. The best match will depend on the bottom shoe depth as shown below. You'll also want to select the 2550 stamp option based on your old stamp.

I'll be here if you have any questions!

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
