Question

need to identify correct pivot bar and shoe replacements.

I am a full time skilled handyman with a few prior replacements
of this nature.

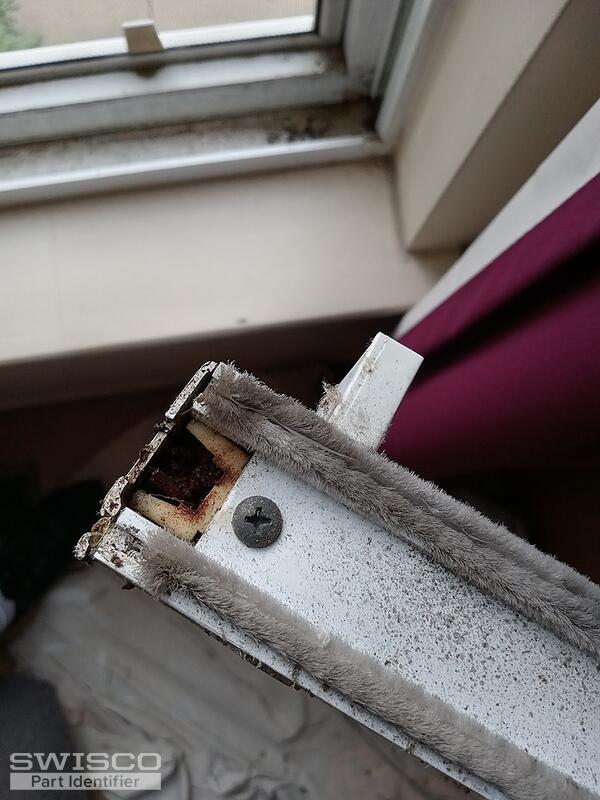

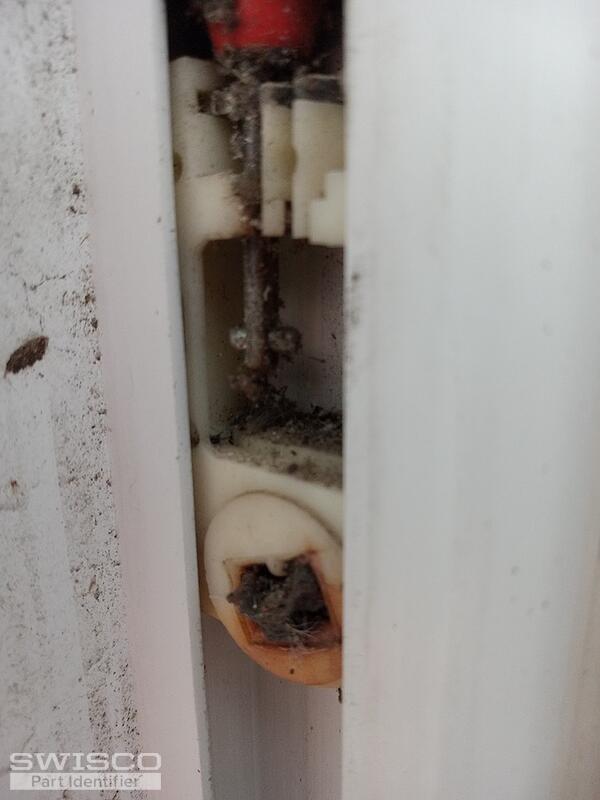

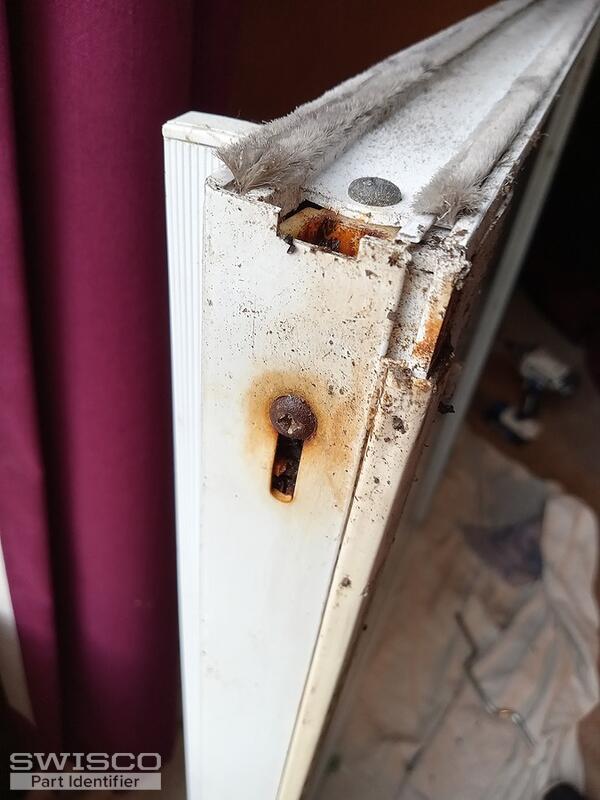

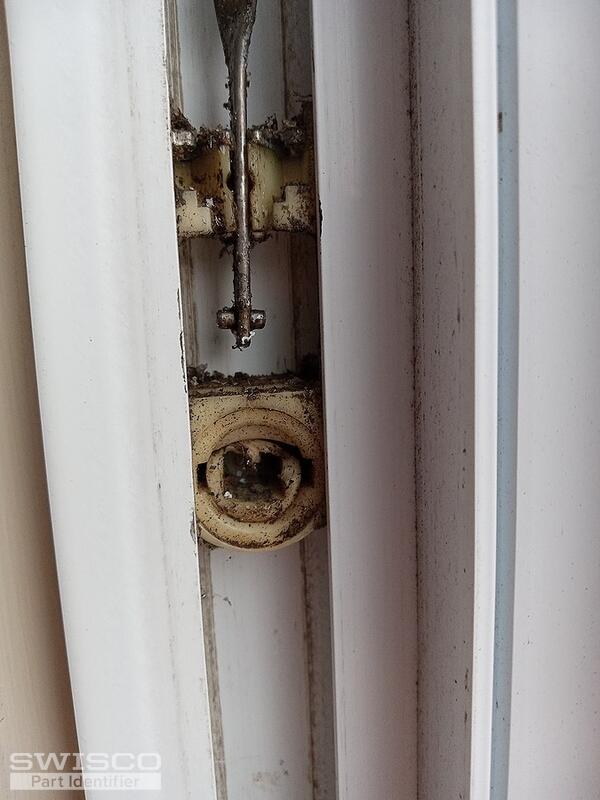

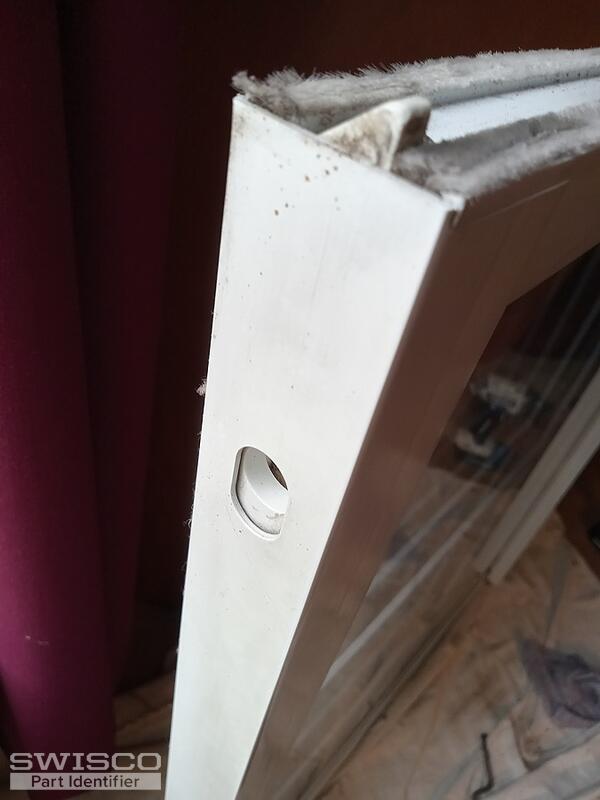

see attached photos
thanks

Casey · Accepted Answer

Hello,

Unfortunately, we can't confirm the correct replacement parts without seeing intact versions of the pivot bar and pivot shoe uninstalled. If all of your pivot bars are as rusted as the one in your photos, you could start by reviewing the dimensions of the 26-040 below to determine if the backset of the installation hole and u-channel could work for your application.

As for the pivot shoe, we would also need you to write out the exact width and thickness once it is uninstalled to narrow down your options. Thank you!

Alternate image for 26-040
