peachtree double hung non tilt (1990 vintage) need channel balances

Quick Learner from Montague NJ 07827

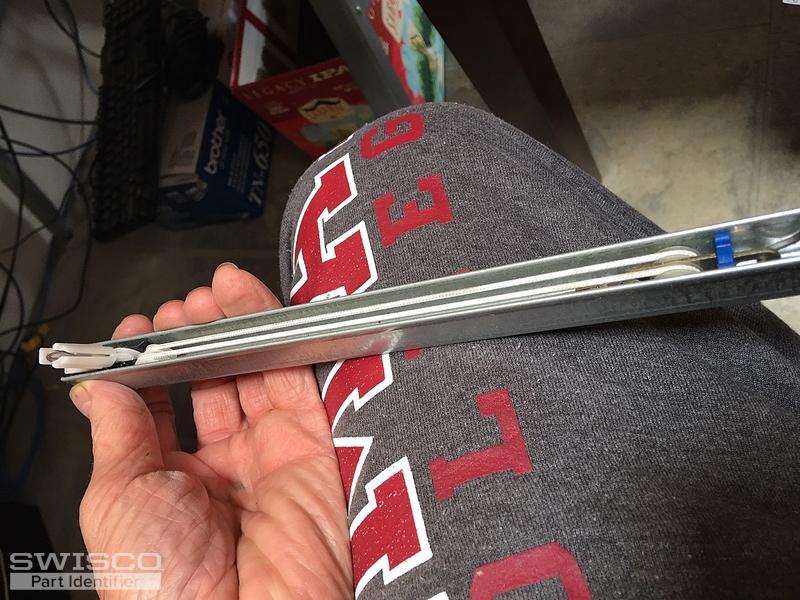

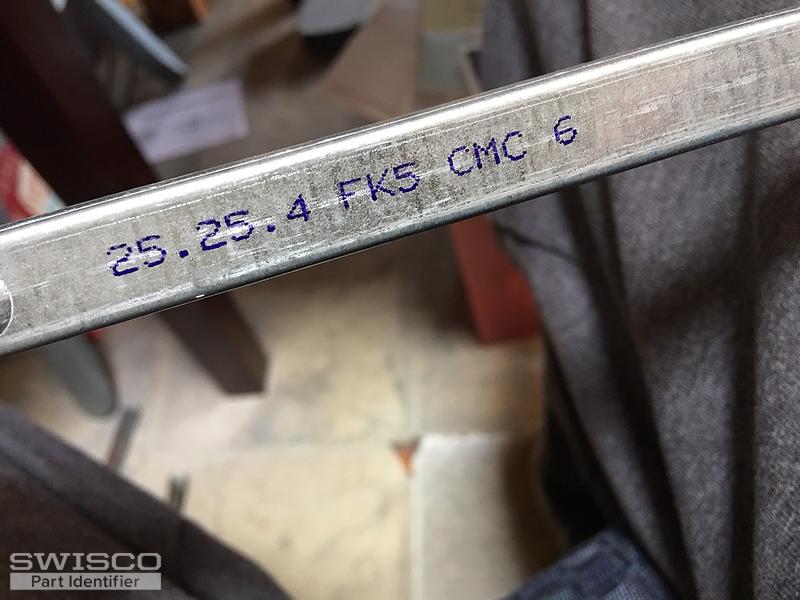

I need many replacement channel balances for my peachtree double-hung non-tilt 1989-built windows. Channel balances measure 26.25 inches (26&1/4) length and 9/16 wide (very close to 1/2 wide). Pictures show old balance and replacement balance which were the right size but not the best quality. Original channel balance stamped 3360 1F. Replacement balance stamped 25.25.4 FKS CMC 6. The old balance does not show the whole black plastic connector tip (aka balance plug). The replacement balance shows the connector tip (white). Any additional installation hardware included? Do you have sell balance cord forceps? thank you, Jim

5 user uploaded images
2 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for posting. This does indeed look like an S745-26 26-1/4" Peachtree balance. A stamp code of 25.25-4 is for a window sash in the weight range of 20 through 25 lbs.

We have a pretty comprehensive discussion about how to install these balances that you can read here.
