sash pivot bar

A contractor from Cambridge says:
September 6, 2017
Hello,

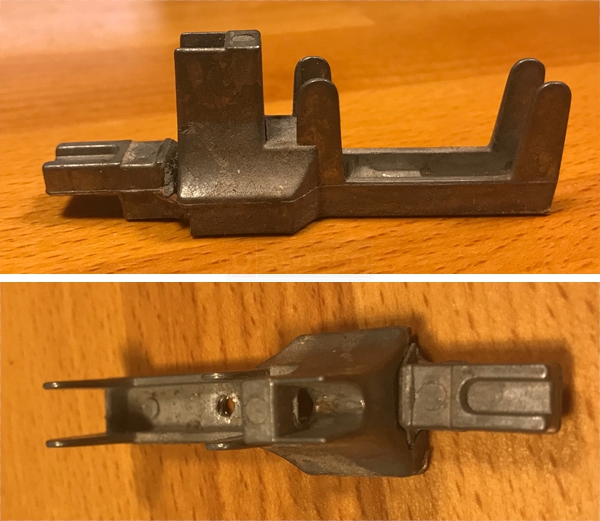

I'm having a hard time tracking down this style of sash pivot bar. Here are it's measurements:

- the tip extends out 11/16", and is 5/16" wide
- the widest part of the body is 11/16" wide
- the body is 2" long (not including the tip)
- so the total length is 2 11/6"

There are 2 holes, one on the vertical part of body, the other on the long flat part of the body.

Thanks!
Ed
Pivot bar
Profile picture of Paul
Paul from SWISCO responded:
September 12, 2017
Hey there! You can use our improved version of this pivot bar, 26-125. Let us know it that will work for you.
A contractor from Cambridge says:
September 12, 2017
all the measurements look the same as the one I'm looking to replace. Except...


-mine is 3/8" wide... where 26-125 is measure at 1/2" wide
-mine is 1 9/16"... where 26-125 is measured at 1 3/8"

do you think it will work?
Profile picture of Paul
Paul from SWISCO responded:
September 15, 2017
Personally, in my days doing service in the field, I have used the 26-125 pivot bar as a replacement and it worked great.
Lower Sash Pivot Bar, 2-3/4"
Lower Sash Pivot Bar, 2-3/4"
26-125
$3.35
