pivot bar inquiry

Quick Learner

Jul 12, 2024 4:19 pm

Seeking a new pivot bar with the end being a T shape

3 user uploaded images

13 Replies

+ Add a Comment

Emily from SWISCO

Jul 15, 2024 3:44 pm

EXPERT

Hi there!

Thanks for reaching out to us. I don't recognize this pivot bar at first glance. Please allow me to consult one of our senior experts. We will reach back out ASAP.

Paul from SWISCO

Jul 16, 2024 9:57 am

EXPERT

We have an offset tilt bar like yours, the 26-306, but the mounting hole is set back 2". I'm not sure your sash allows that. We also have a straight pivot bar, the 26-241, where the rear hole is set back 1-3/4". We don't believe the offset is critical in the operation of the window. Take a look at the specifications and see what you think.

Alternate image for 26-241

Alternate image for 26-306

Alternate view of 26-306

Quick Learner from maryland

Jul 16, 2024 6:25 pm

Hi Emily and Paul,

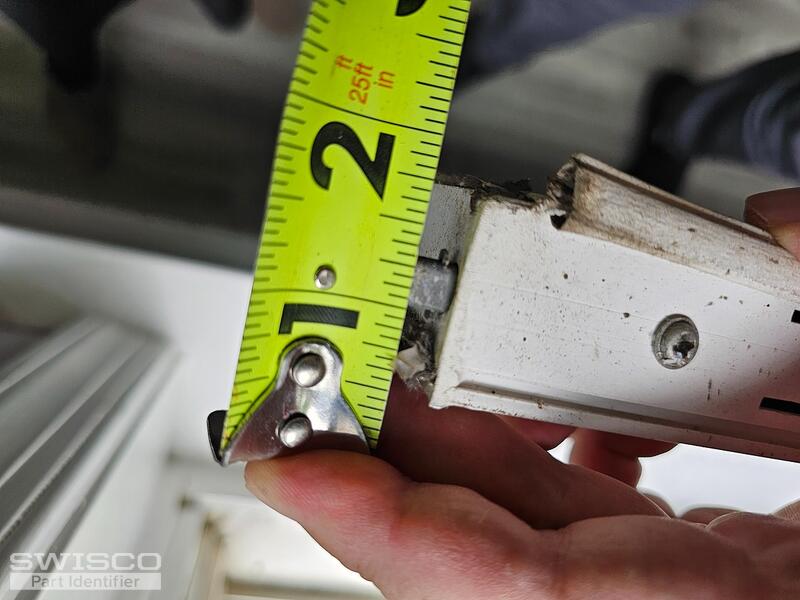

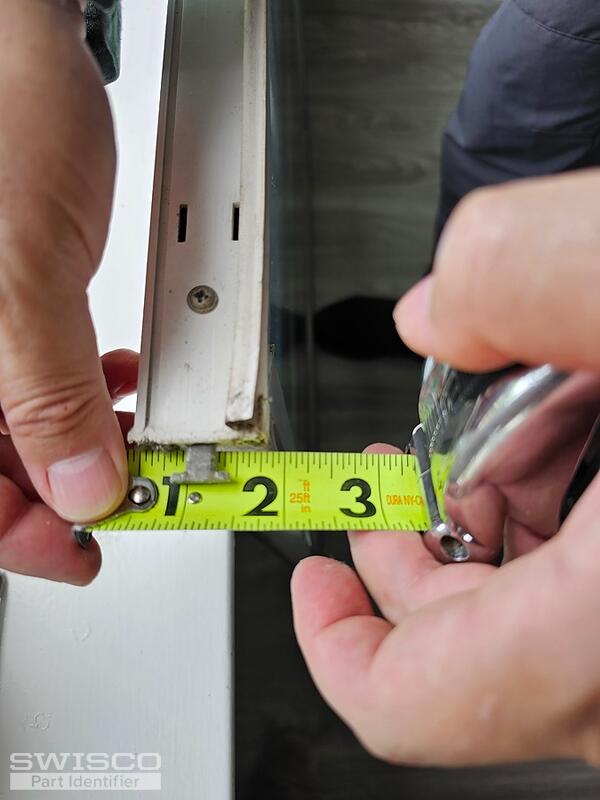

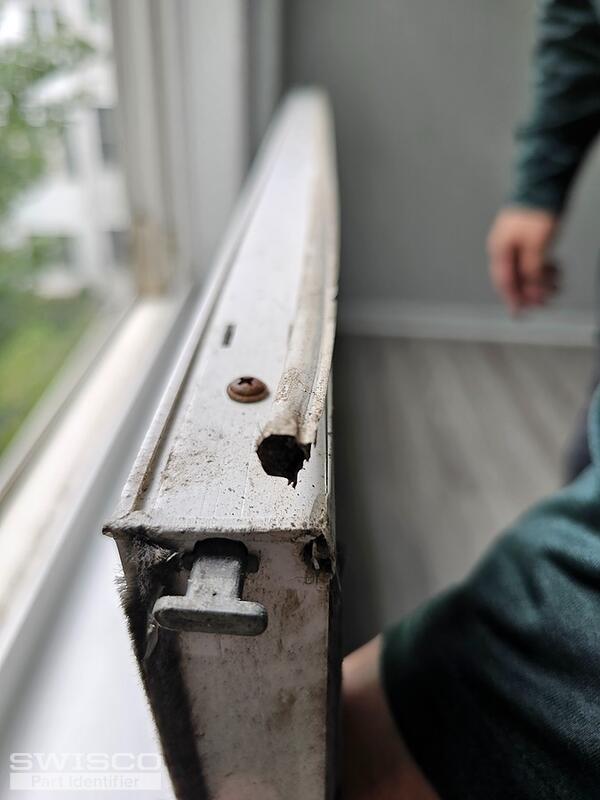

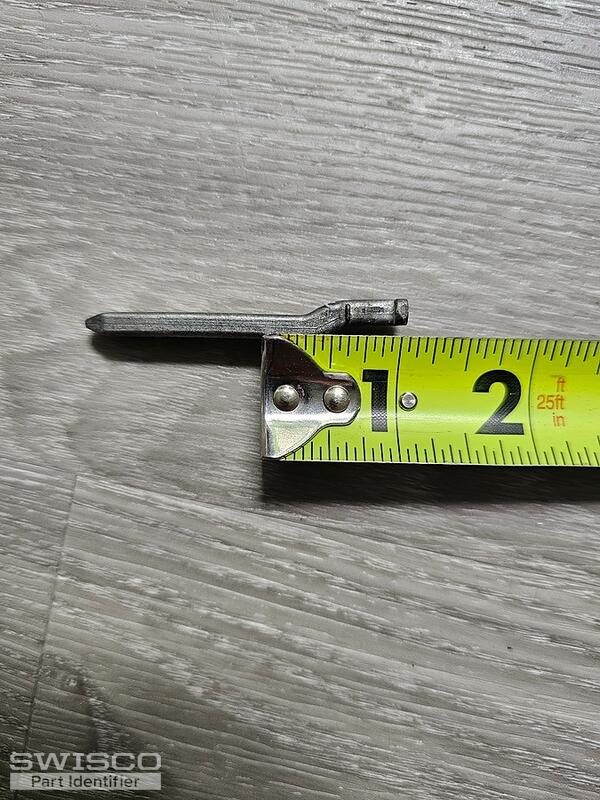

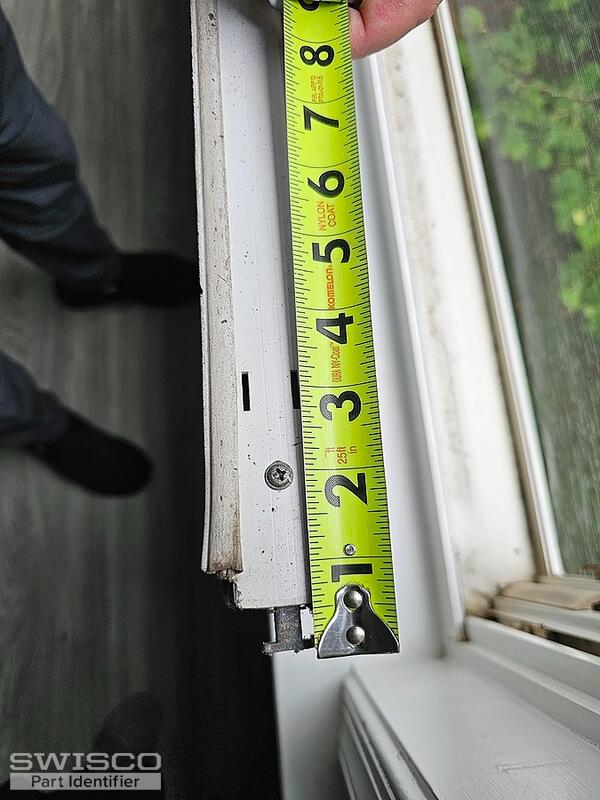

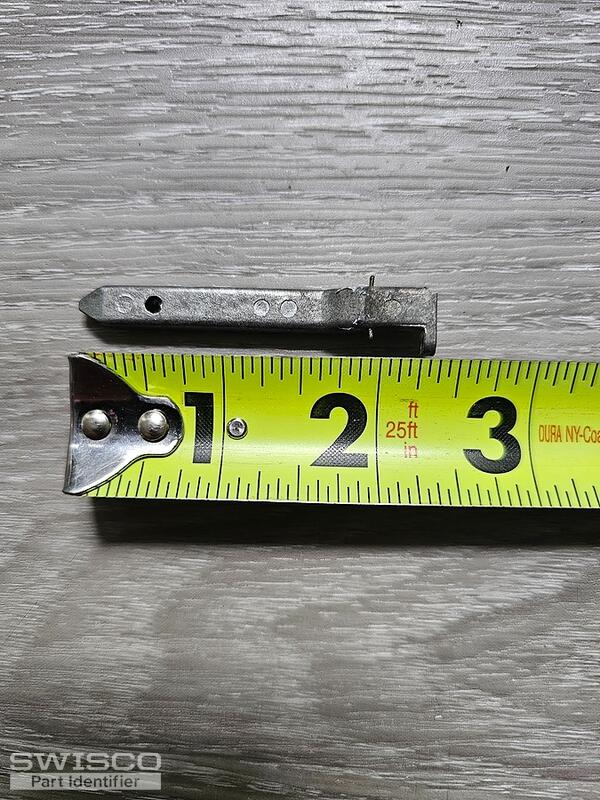

the three uploaded images that head is broken; please see I upload another four images that head was good and was on window.

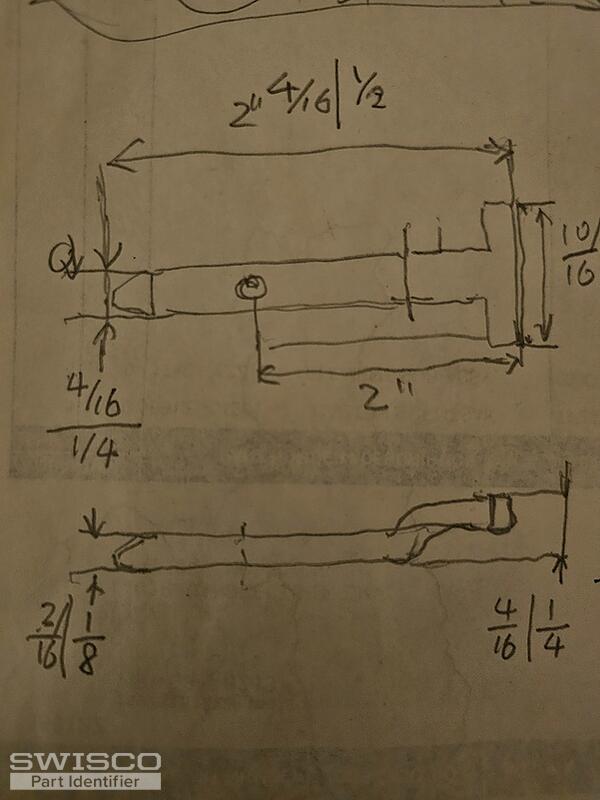

I also uploaded a picture that I am drawing measure size,
the pivot bar size is:
Length: 2" 1/2
Width: 1/4
height: 1/8
the T head is 5/8 width and 1/8 height.

yes, I'm preferring to consider purchase 26-241, the only concern is the L head is 3/8 width which it will works on my window or not?

I'm expecting your expert advice and looking forward to hearing you soon.

Jay

5 user uploaded images

Paul from SWISCO

Jul 17, 2024 10:39 am

EXPERT

Hmm! Would it be possible for us to see a photo of the pivot shoe?

Quick Learner from maryland

Jul 17, 2024 11:35 am

Hi Paul,

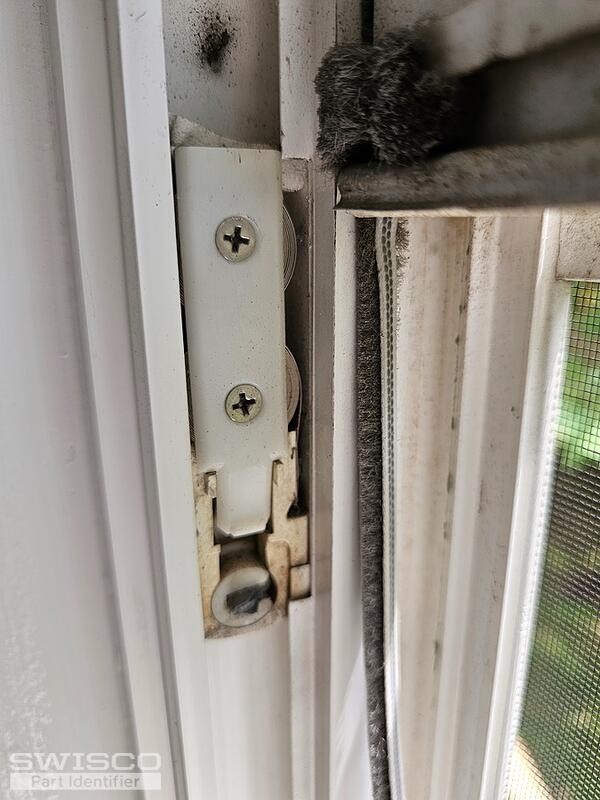

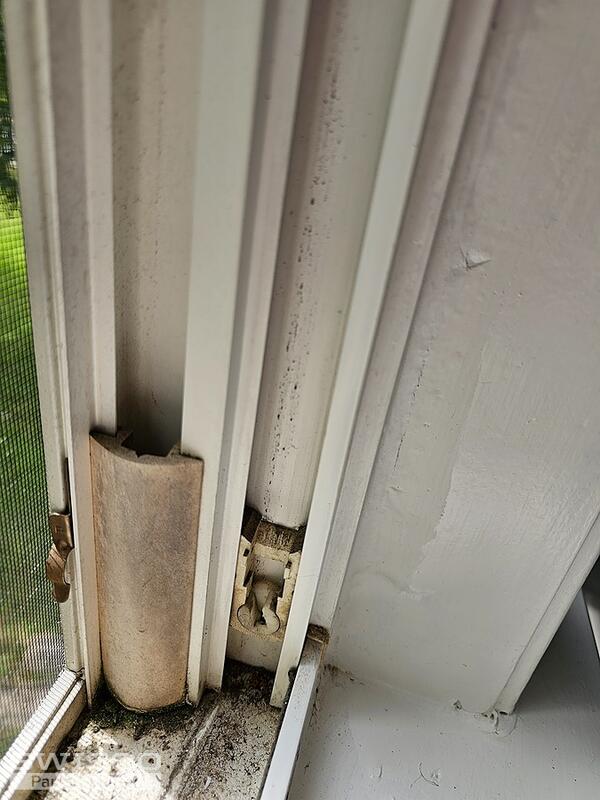

Please see attached pictures, I have only these two pictures, hope it works.

Jay

2 user uploaded images

Paul from SWISCO

Jul 17, 2024 1:33 pm

EXPERT

Thank you, Jay! The pivot shoe shown here appears to be the 15-180. This is compatible with a pivot bar like the 26-040. Take a look at the specifications and see if one of the installation holes matches up with one of yours.

Alternate image for 26-040

Quick Learner from maryland

Jul 17, 2024 2:14 pm

wow awesome! thank you Paul!

I'm keep looking for looks like exactly the same pivot bar, really don't know another one could be compatible with it, that's why you're expert and I'm a quick learner, lol.

just one more question: the original pivot bar has T head, but the one your suggestion is without head, doesn't this affect usage?

Jay

Paul from SWISCO

Jul 17, 2024 3:17 pm

EXPERT

This pivot bar should work for you since it's designed to be used with the 15-180 shoe. Re-drilling holes might be necessary if one of the installation hole placements doesn't match up. That may not be the case here looking at your illustration but you can compare the dimensions to be certain.

Quick Learner from maryland

Jul 17, 2024 4:41 pm

thank your excellent job, Paul!

just ordered and my ORDER NUMBER: 2374811.
hope this order is all smoothly!

you have a great day!

Paul from SWISCO

Jul 18, 2024 7:50 am

EXPERT

No problem! Please let us know how you make out with your repair and if you have any future hardware questions.

Quick Learner from maryland

Jul 18, 2024 8:15 am

Hi Paul,

Good morning. Of cause I will :)

Jay

Quick Learner from maryland

Jul 26, 2024 8:13 pm

Hi Paul,

I hope this message finds you well.

I wanted to take a moment to express my sincere gratitude for recommending the perfect replacement part which the 26-040 is the perfect replacement part to me. Your suggestion was spot-on and saved me a lot of time and effort.

I truly appreciate your assistance and expertise.

thank you for being so helpful! and you have a wonderful weekend!

Best regards.
Jay

Paul from SWISCO

Jul 29, 2024 8:00 am

EXPERT

I'm very happy we could help! You know where to find us if you need anything else!
