pivot replacement

Quick Learner from Gainsville, VA

Apr 6, 2023 6:27 pm

Dear Swisco Helpline,

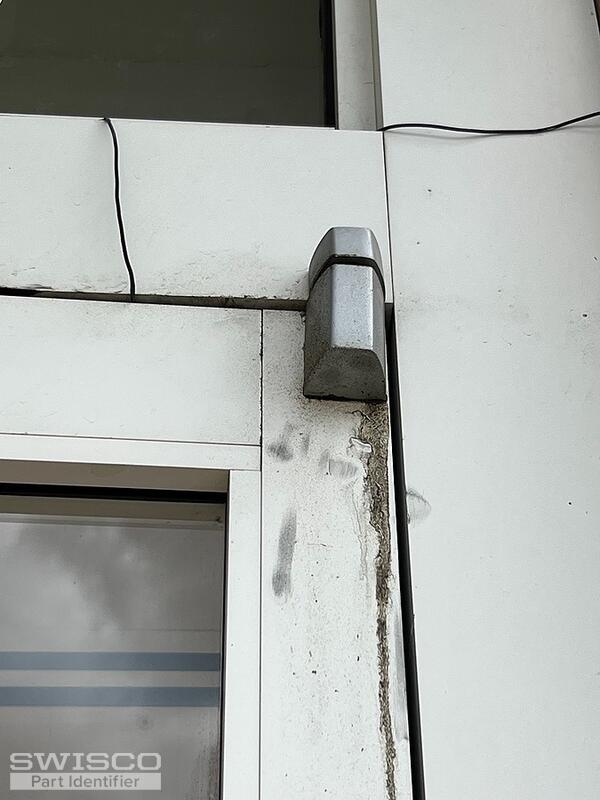

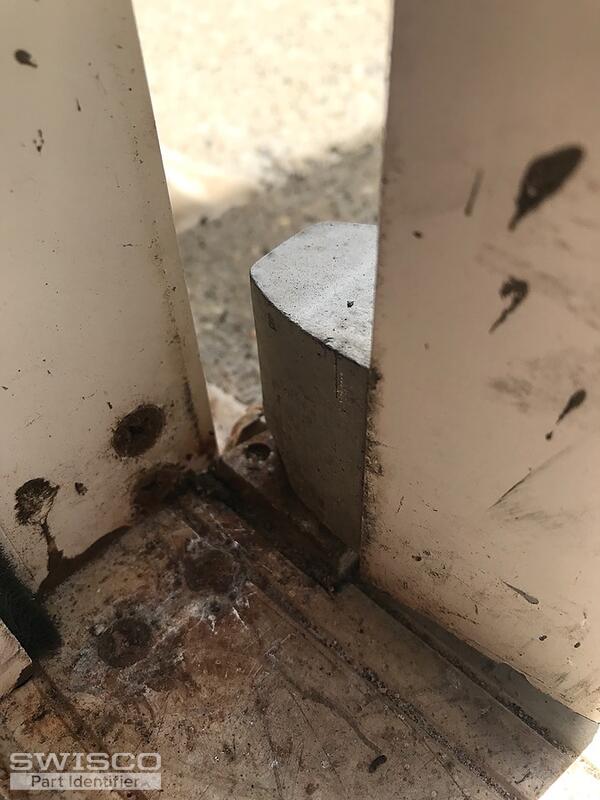

Our right door (coming in from outside) is tilted due to top pivot (also bottom) being rusted. We are trying to purchase replacement parts and I am not sure which one to purchase. The original parts: bottom is about 2.2" height, top 2.8" and middle 2.8". Would you please guide me? Thank you so much for your help :). Clara

4 user uploaded images

3 Replies

+ Add a Comment

Emily from SWISCO

Apr 7, 2023 1:09 pm

EXPERT

Hi there, Clara!

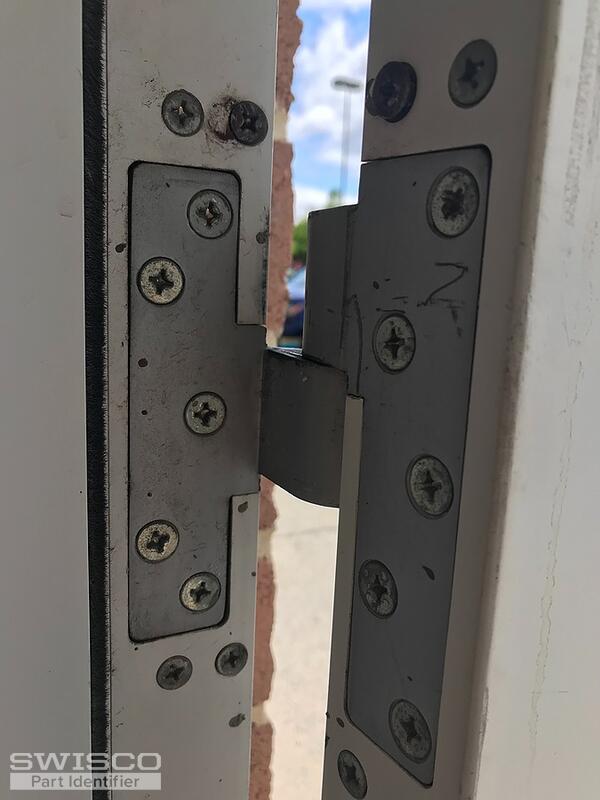

Thank you for reaching out to us. I'm afraid I can't ID the pivot you may need from these photos. Seeing the hole pattern, where they screw to the frame) would allow us to narrow down some options. In the meantime, you can browse our selection here.

Quick Learner from Gainsville, VA

May 4, 2023 4:35 pm

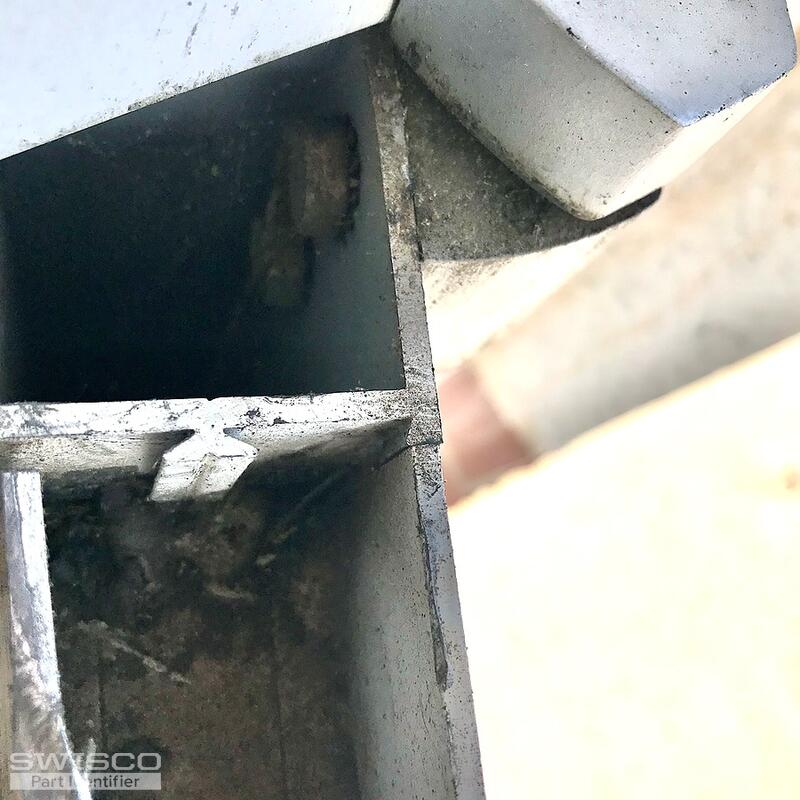

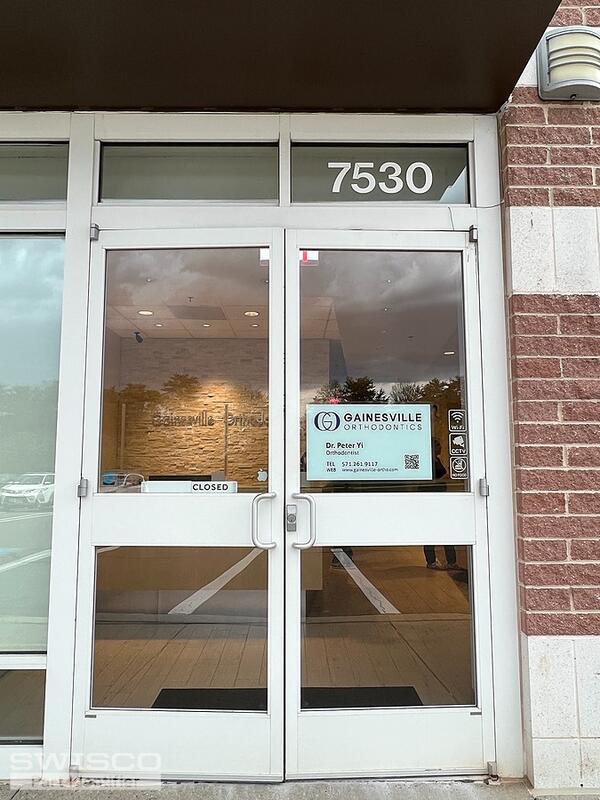

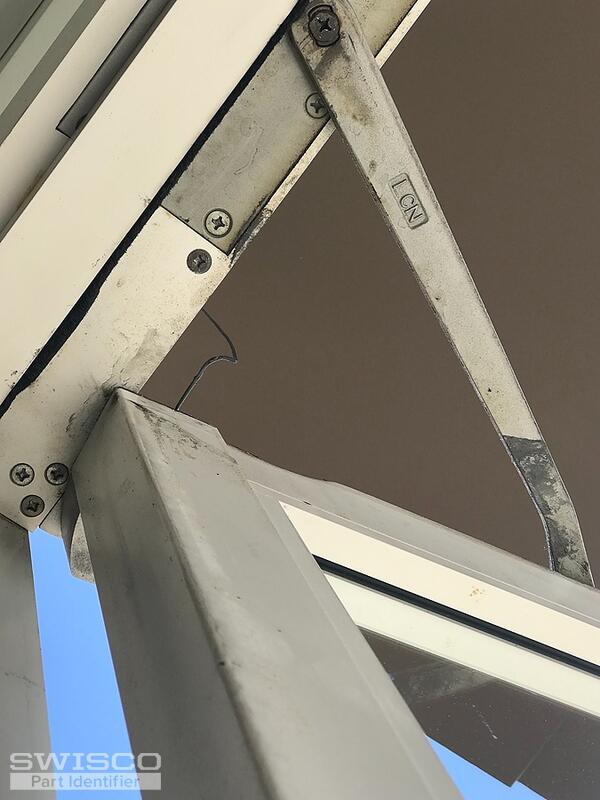

Hi Emily. Thank you for the response. I have included extra photos, I want to make sure I purchase the right parts. It is the right door facing from the outside.
Thank you!!!

4 user uploaded images

Dave Sr. from SWISCO

May 8, 2023 8:00 am

EXPERT

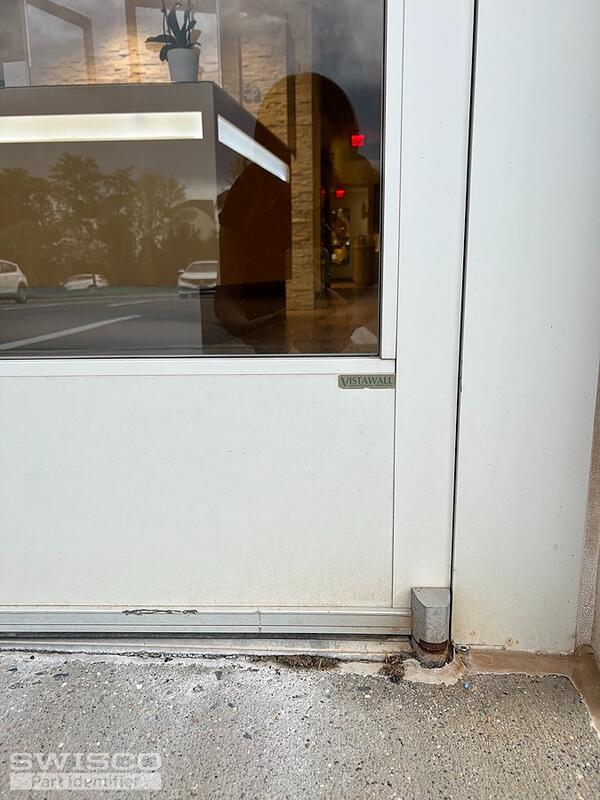

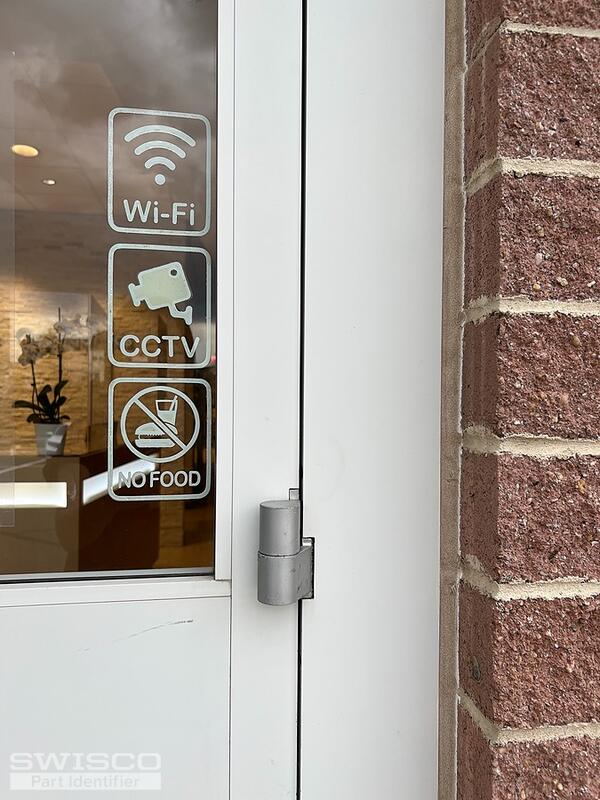

Thank you kindly for waiting while we looked into this! I recommend you have a look at the 79-127 pivot set along with the 79-129 intermediate pivot. These types of pivots were used on Vista Wall commercial doors. Looking at your photos, they do appear to match yours but review the specifications and see how they match up with yours.
