Product Code: 79-127

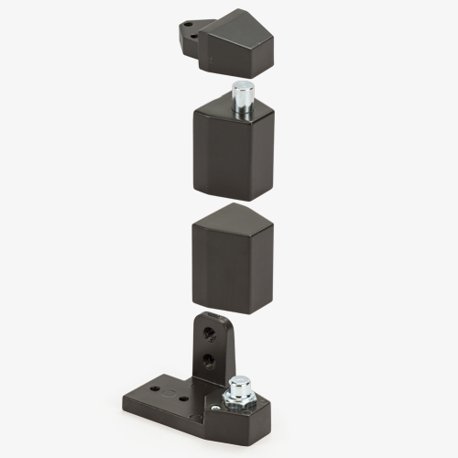

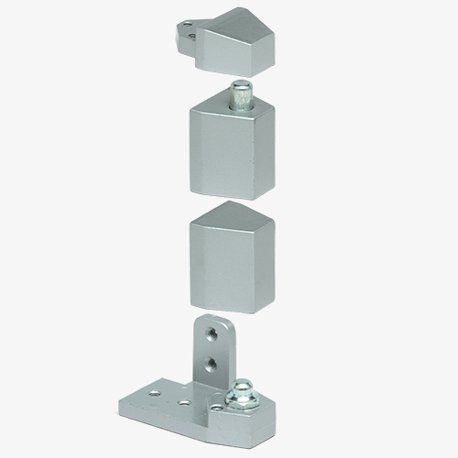

Left 1/8" Recessed Door Offset Pivot Set, Arch

Name: Left 1/8" Recessed Door Offset Pivot Set, Arch
SKU: 79-127
Price: 27.71 USD
Availability: InStock

$27.71

Left 1/8" Recessed Door Offset Pivot Set, Arch Image

Product Description

Swinging door replacement hardware for Arcadia, Arch Aluminum, Tubelite and Vistawall commercial doors. This offset pivot set is used to replace the lower and upper pivots in a left hand 1/8" recessed HR door. Use with aluminum commercial doors and frames; for doors weighing up to 125 lbs. Features 1/8" vertical adjustment; an oilite bronze bushing in top frame portion; case hardened, spring loaded pin in top door portion; case hardened stud in floor/jamb portion; full race ball bearing in bottom door portion. Includes fasteners. To adjust the lower pivot you will need a 5/8" open end wrench. Finish/color is a baked satin aluminum paint.

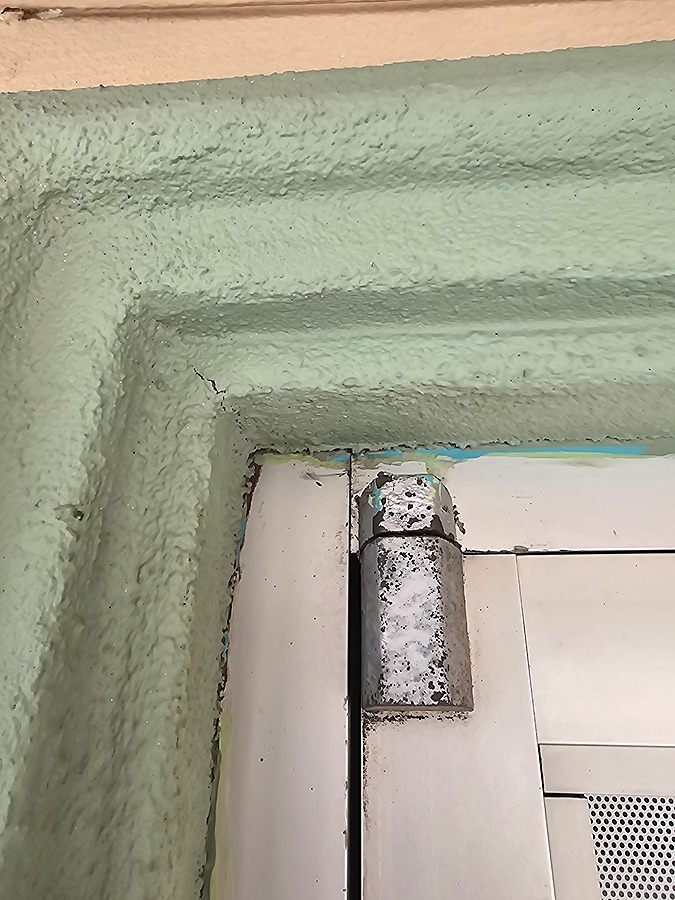

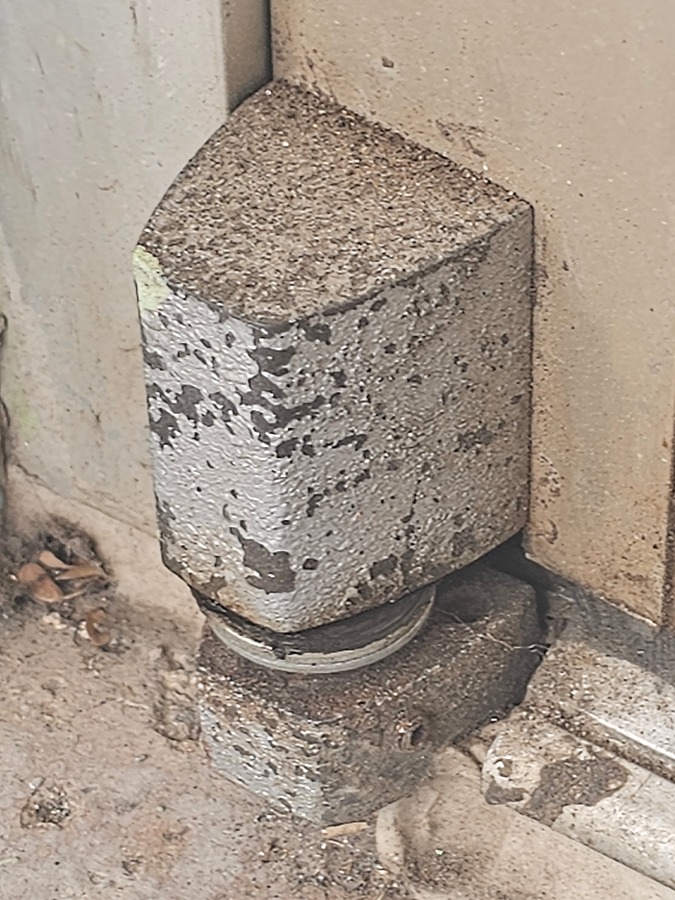

Storefront pivot hinge

3/4" offset right hand pivot hinge for a Vistawall commercial storefront door

Vistawall glass storefront door

I need to replace the hinges and wanted to confirm your 79-127. The door appears to have a 1/8" recess from the door frame as shown in 4077 picture. I just want to make sure I am ordering the right part. If I am wrong, what part do you recommend?

I would like a part number for new hinge

thanks

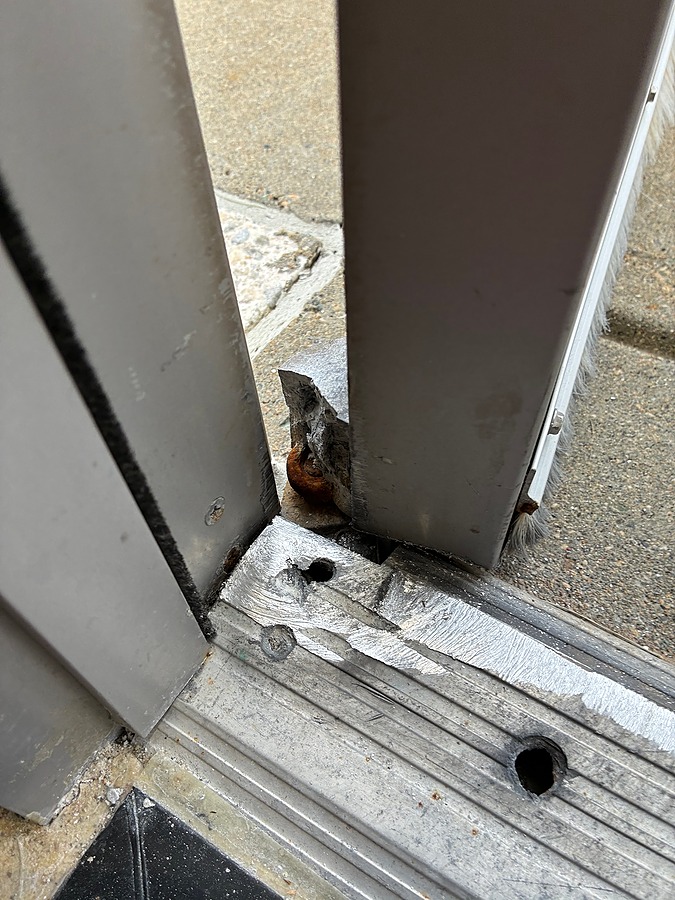

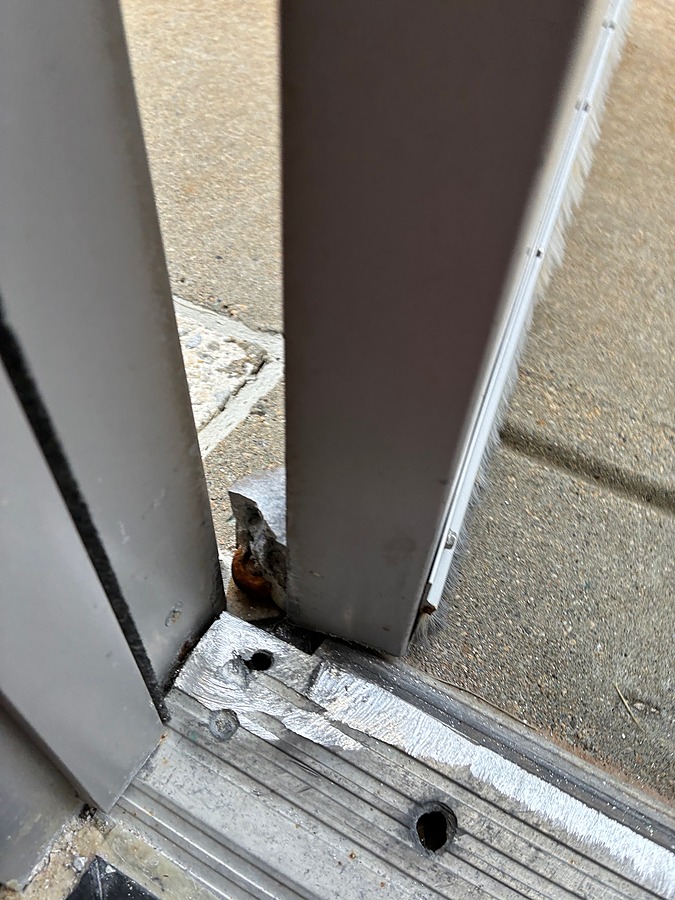

Door Hinges

Hello, I need to replace the hinges on my door. Can you please tell me what hinges I need? My door is 12 years old +/- Thank you, Greg

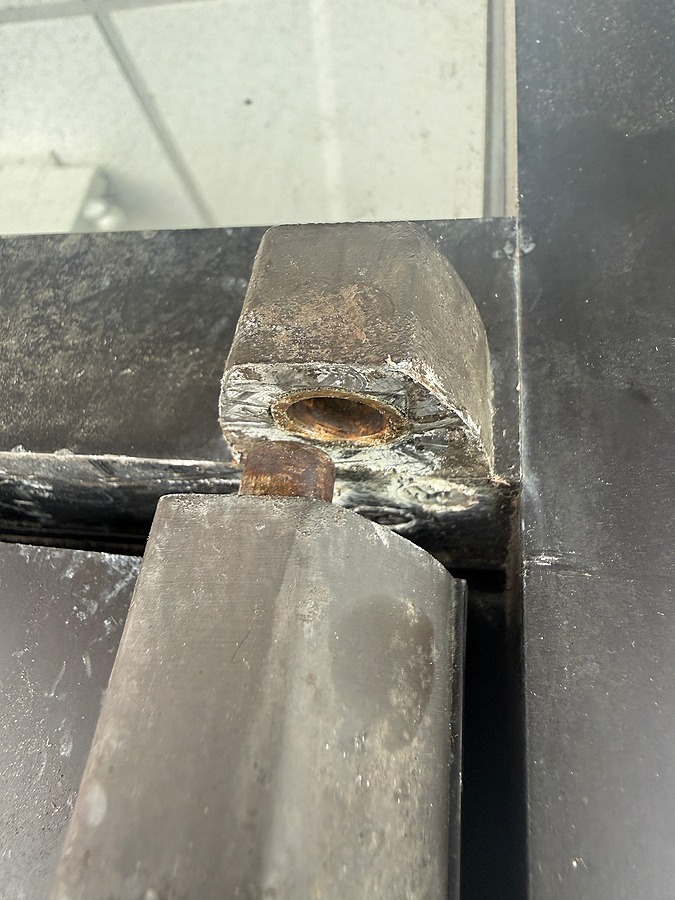

Commercial door pivot

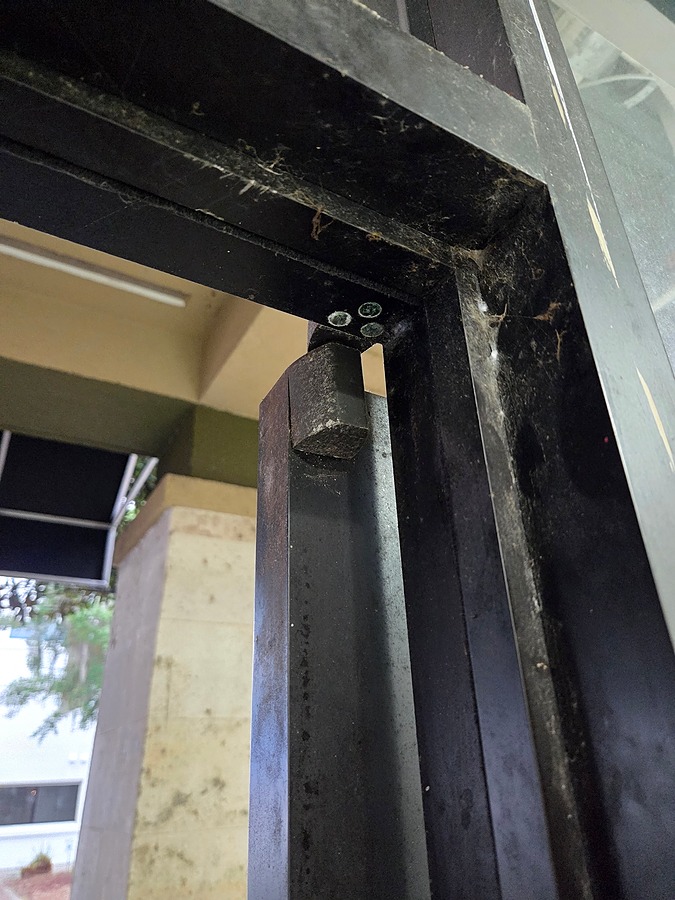

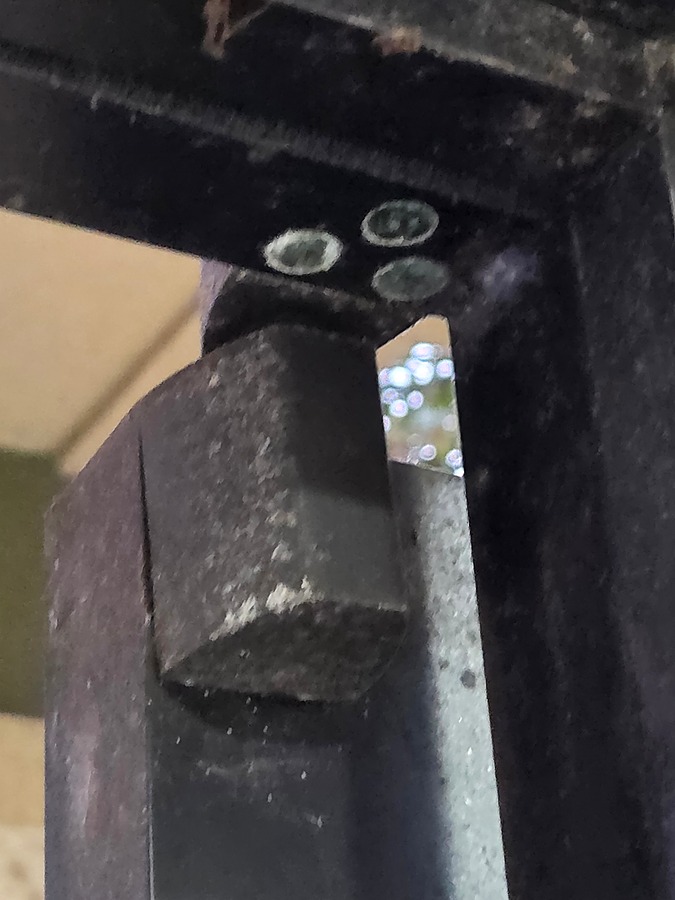

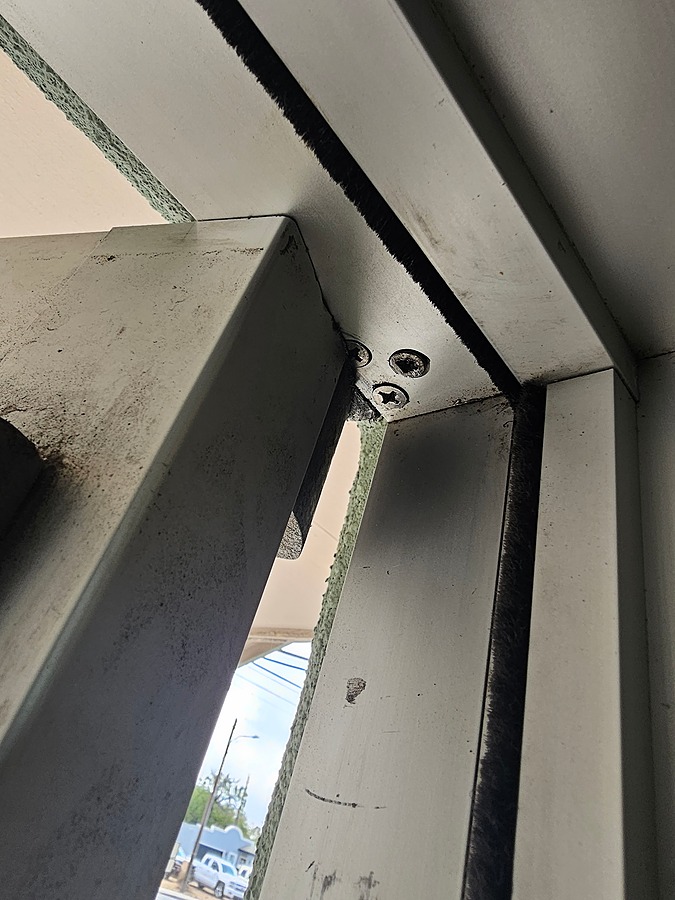

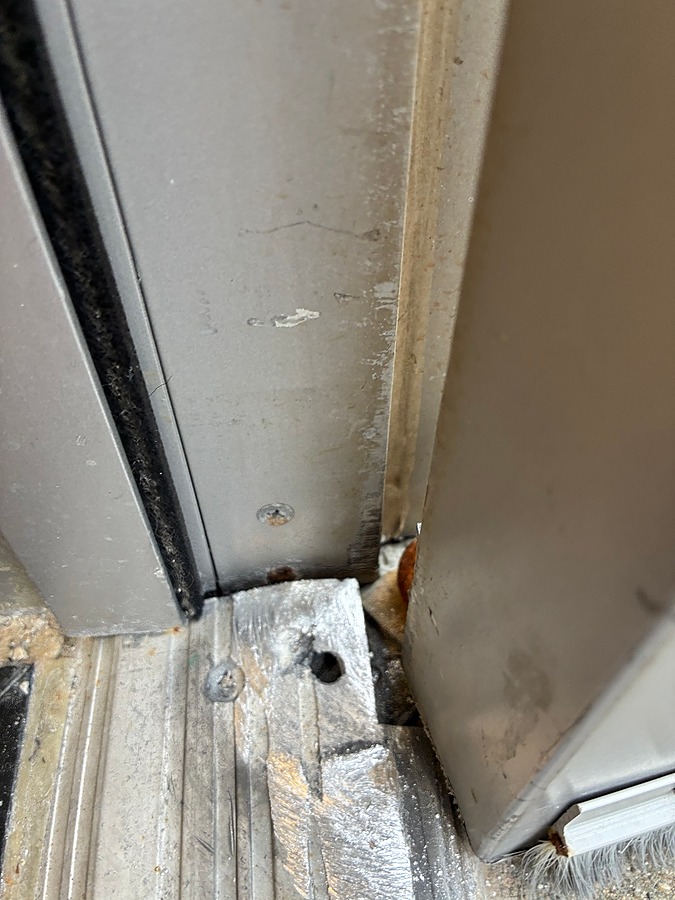

Need a replacement upper pivot for commercial door. Pivot pin diameter is 5/16 inch. Pivot is secured to the upper frame via three phillips screws spaced at 3/4 inch. Unfortunately the lower hinge pivot cannot be revealed because the door frame was installed over the lower threshold which prevents ... (cont.)
