Replacement 25-5 balance

Contractor from san jose ca
hi this is a residential single hung window.

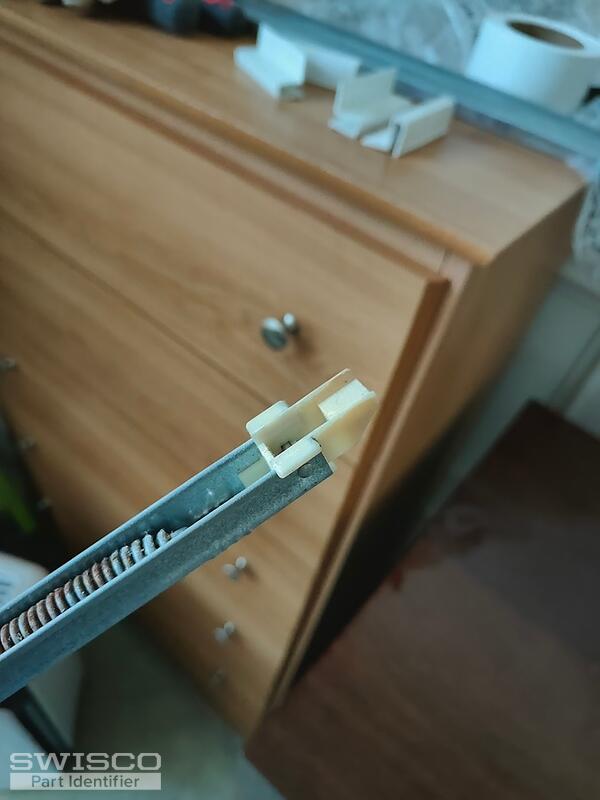

window balance has a stamp of 25-5 GX CMC 11 on it.

the locations of two slot on window jamb looks like very close to each other.

need 4 piece for 2 windows.
4 user uploaded images
5 Replies
Paul
Paul from SWISCO
SWISCO
Expert

Hello,

It sounds like you may be referring to the take out clip, such as the16-002. Review the specifications below to confirm they match your part.

Alternate image for 16-002
Alternate image for 16-002

The window balance resembles the S385-26. You'll need to confirm the 1-3/32" deep bottom fitting matches yours. The spring stamp strength options would be (2550) for a sash weighing between 25-28 lbs. Take a look and let us know if you need anything else.

Close up view of the S385 balance top.
Close up view of the S385 balance top.

Close up view of the S385 balance shoe.
Close up view of the S385 balance shoe.

Contractor from san jose ca
HI Paul

Thanks for getting back to me!

I need the balance itself.

The balance measures about 25inches (only the metal part), so does the S385-25 have the same length?. Could you please help identity?
as to the bottom depth i'll measure and get back to you tomorrow.

Thanks!
Contractor from san jose ca
sorry i measured it again, it is 26in long.

and the bottom depth looks like 1-2/32", so i think it should be the same as 1-3/32"?
Paul
Paul from SWISCO
SWISCO
Expert

The bottom fitting can wear down a bit over time but you should be good to go with the S385-26 as long as the shoe measures over 1" deep.
