replacement balance
Quick Learner from Brooksville Florida
Feb 26, 2019 11:29 am

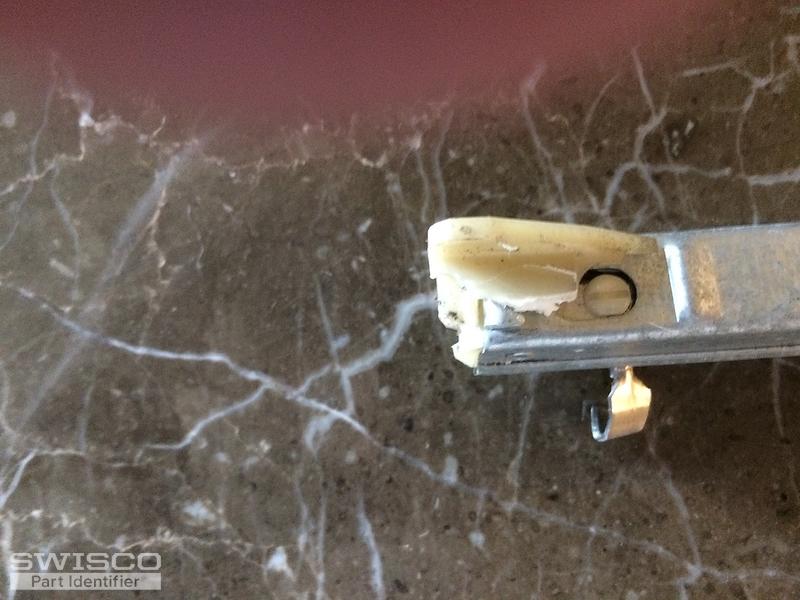

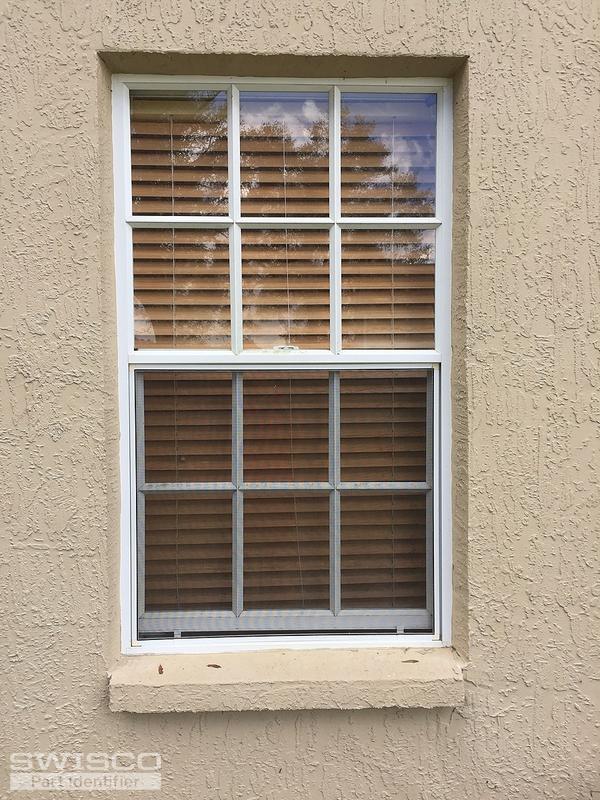

Need help with a channel balance. Photos attached. There is not a stamp so I don't know what the weight is. Please advise.
5 user uploaded images
2 Replies
Tom from SWISCO
Feb 28, 2019 1:50 pm
Thanks for posting! This looks a lot like our Series 395 channel balance, which comes with a 19-005 top and 15-001 bottom fitting. As long as those match then it should work well as a replacement.
If you don't have a stamp, then I'm afraid you have no choice but to weigh your sash to confirm the best option. Make sure you're as precise as possible, you don't want to estimate. Also, when measuring for the length, make sure to only measure the metal channel. Don't include the nylon fittings in the length at all.
