replacement channel balance

Home Owner from walnut creek ca
20"

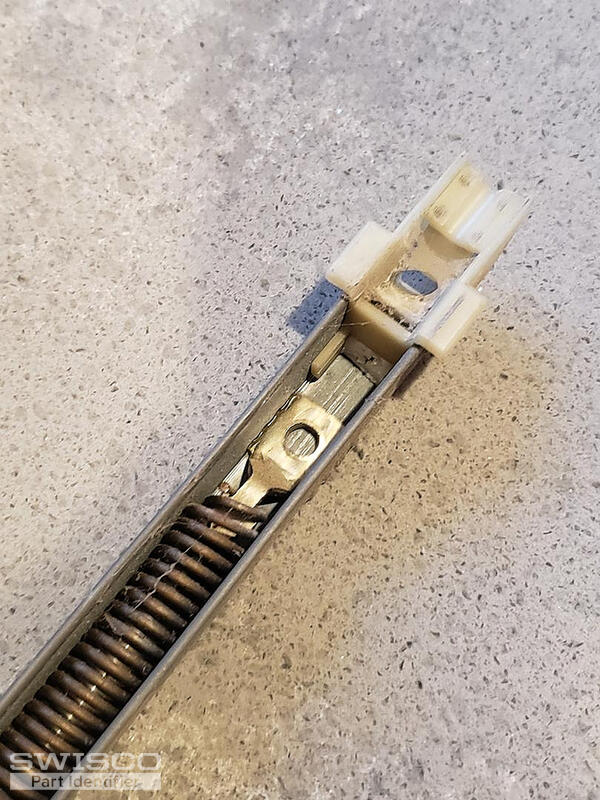

serial markings on old channel 19 3 JK Caldwell
4 user uploaded images
3 Replies
Home Owner from walnut creek ca

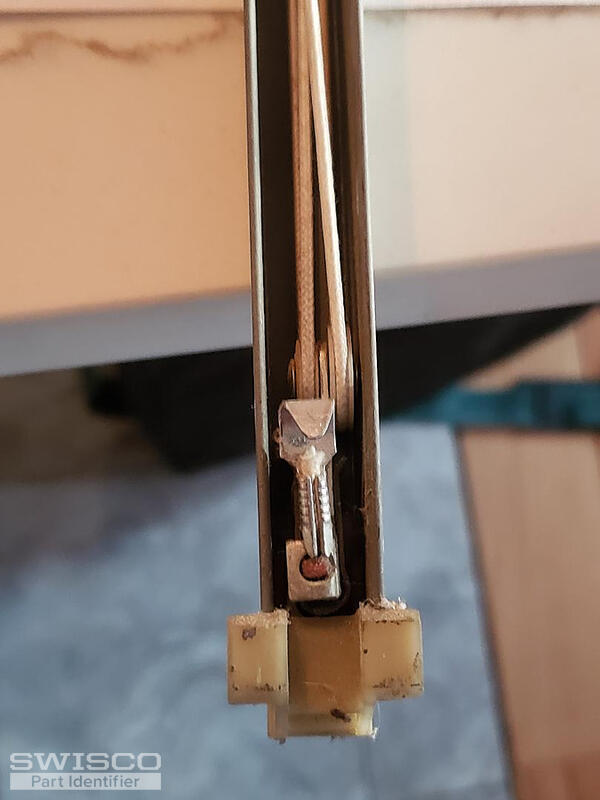

here is an additional picture from order just sent
20 "
part name says 19 3 JK Caldwell
1 user uploaded image
Casey
Casey from SWISCO
SWISCO
Expert

With this combination of attachments, you could have either an S380-20 or S385-20 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 1930 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.


Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
