replacement channels

A home owner from hudson, florida says:
August 25, 2019
the overall dimentions of the window is 51.5" wide 60" high
the channel's only stamp is (28c)
not sure on the weight load

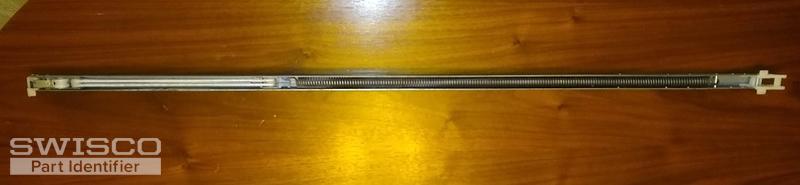

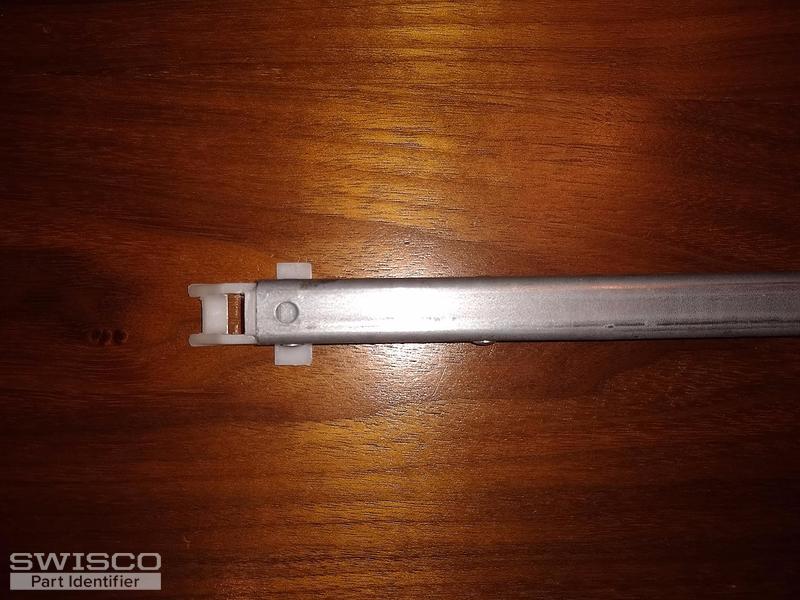

Thumbnail of the uploaded file named IMG_20190825_082925859.jpg
Thumbnail of the uploaded file named IMG_20190825_082951667.jpg
Thumbnail of the uploaded file named IMG_20190825_083002895.jpg
Thumbnail of the uploaded file named IMG_20190825_083016447.jpg
Thumbnail of the uploaded file named IMG_20190825_083034352.jpg
Profile picture of Casey
Casey from SWISCO responded:
August 30, 2019

Thanks for posting!

It looks like you'll need the S380-29. Just be sure your balance measures 29" and the bottom shoe has a depth of 1". As long as everything checks out, go for the S380-29 with the 2830 option that corresponds with your 28C stamp.
29" Series 380 Channel Balance
29" Series 380 Channel Balance
S380-29
$11.10
