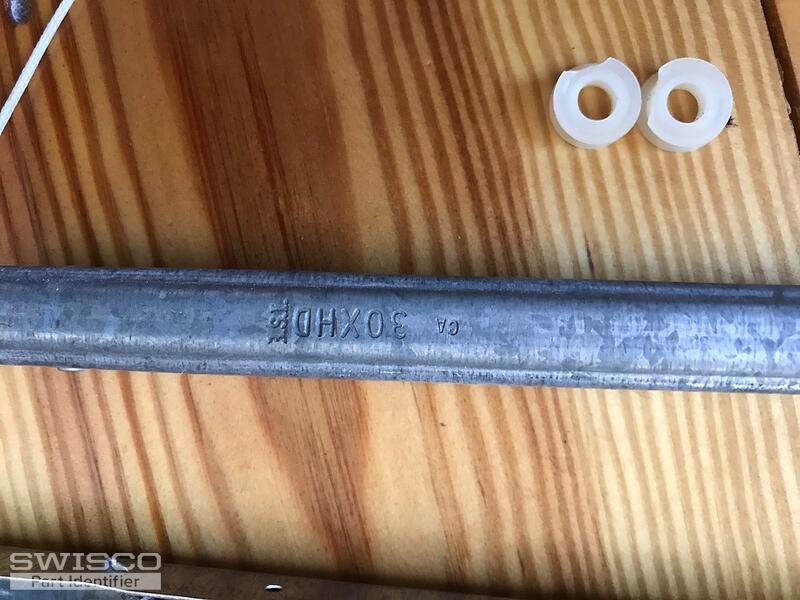

replacement for 30R Crossbow window balance

Start a new Discussion

Home Owner from 01452

Apr 23, 2024 6:27 pm

The windows weigh about 30 Lbs

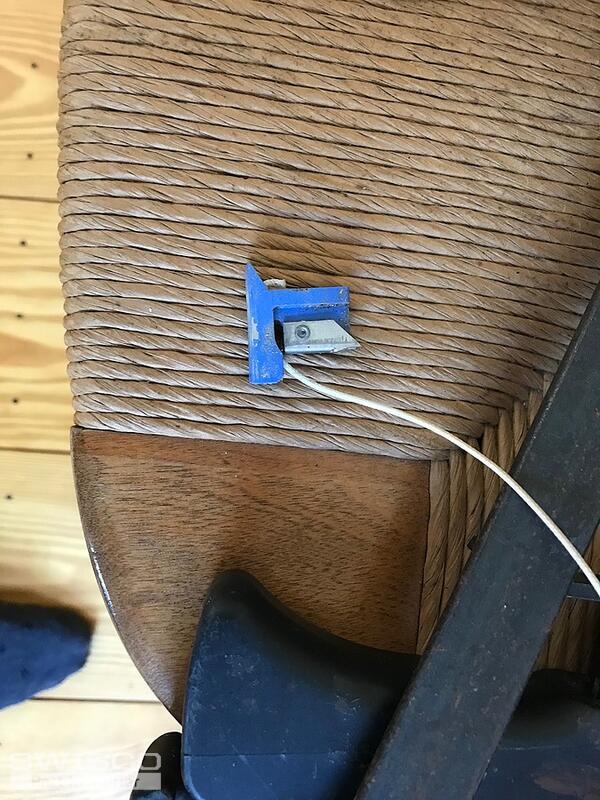

The Blue base is approx 1 1/4

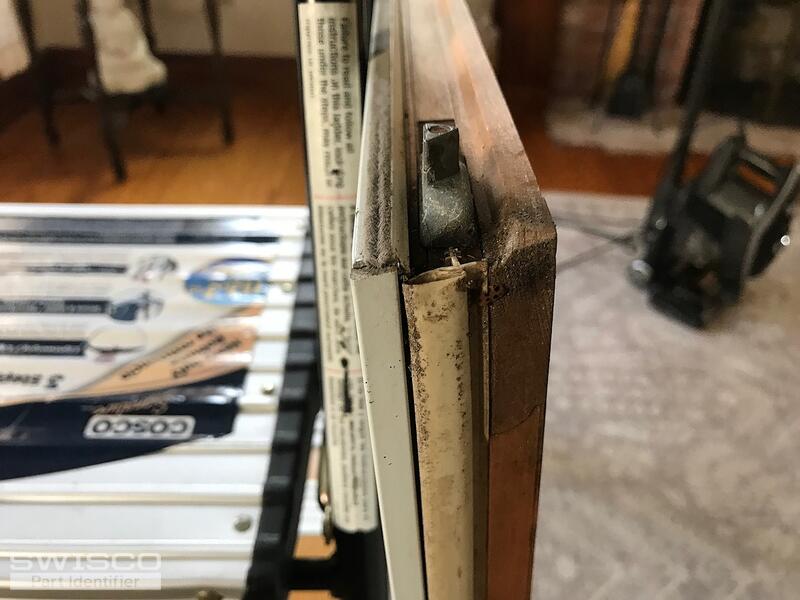

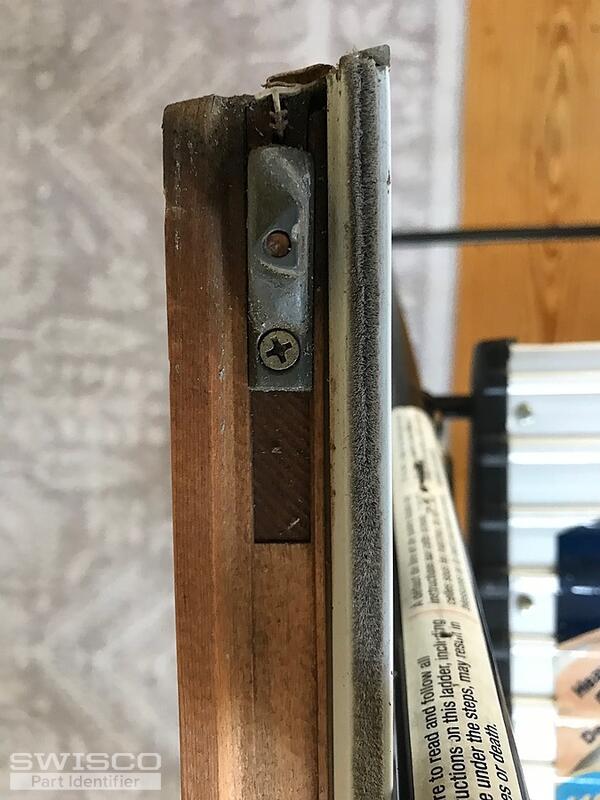

will I also need new window pins?

Thanks

5 user uploaded images

4 Replies

Tom from SWISCO

Apr 24, 2024 2:45 pm

Hello! Your balance appears to be a good match for our Series 751. I think this may be just the part you're looking for, but look it over and see what you think.

You should be perfectly fine reusing your old pins. Your specific style actually isn't even made anymore, so the longer you can use them, the better. There are alternatives, but they take a little handiwork to install.

Home Owner from 01452

Apr 24, 2024 6:28 pm

Thanks for the quick response.

couple questions
Most of the windows that need replacing are the interior so they'll require the long S-clip ?

Does the S751-31 comes with the lock shoe 15-014 and the long s-clip installed, if I order it that way?

The windows weigh about thirty pounds so I should order the 30-TG?

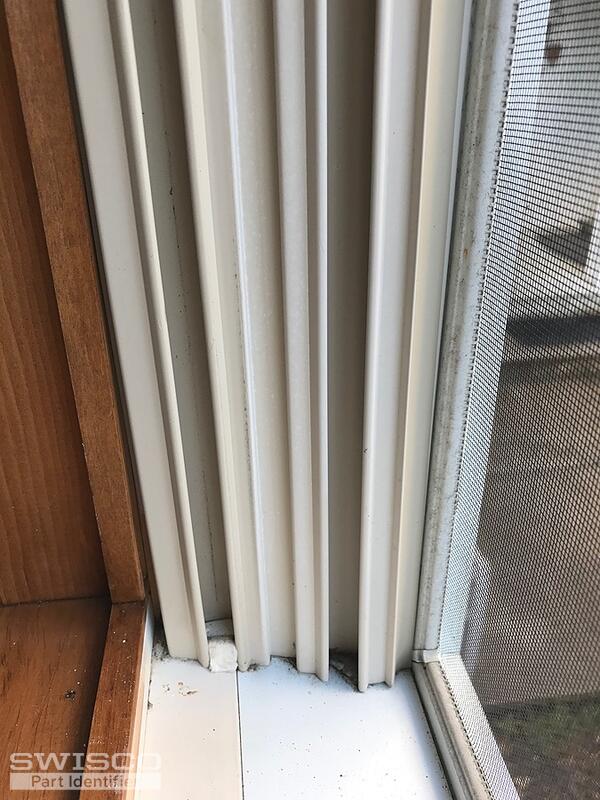

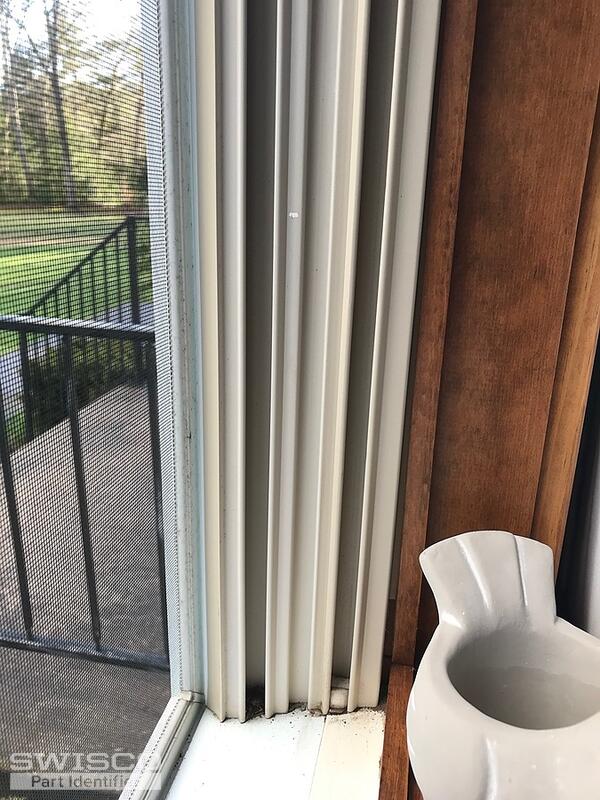

Some of the jamb liners are damaged at the top, do you carry jamb liners ?
I've included picture of the liners.

I think the reason many of these balancers are broken is because the windows were too heavy for the them, so will the 30-TG help fix that problem ?

Thank you,

2 user uploaded images

Tom from SWISCO

Apr 25, 2024 11:50 am

Hey there, I'll try to address your questions one at a time.

Regardless of whether you're replacing balances on the lower or upper sash, you should measure your S clips to ensure that you're getting the right size. The 19-029 is 1" long and the 19-030 is 2" long.
The S751-31 comes with the 15-014 pre-attached, but not the s-clips; those are sold separately, so don't forget to add them to your cart before you check out.
For a 13 pound sash, the 30TG stamp option should be perfect. Two balances with this stamp carry 29 thorugh 36 pounds.
We unfortunately do not sell jamb liners of any kind. If yours are damaged to the point of being unusable, you will want to contact the original manufacturer of the window to see if they can still supply the size you need.
As long as your sash falls within the stated weight range for the 30TG stamp, then it will be perfectly sufficient.

Please let me know if you had any other questions.
