replacement hardware in two vertical sliding windows

Question

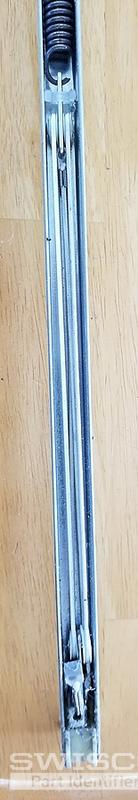

I'm looking for some replacement hardware in two vertical sliding windows (Gienow Vinyl Windows) in my house. The hardware is the same for each window, just different size. Attached please find pictures of the hardware.

Item Number.jpg :

86 32-4 KA5 CMC 2

33" length of metal

34" with plastic pieces at ends

Window is 35"h x 33.25"w and weighs 27 lbs

The item number for the second window I have is:

86 26-5 LA5 CMC 1

27" length of metal

28" with plastic pieces at ends

Window is 29"h x 39.25"w and weighs 27 lbs

Bob · Accepted Answer

Thanks for posting. It looks like you need either an S351-27 or S390-27 with a stamp option of 2650, as well as either a S351-33 or S390-33, with a 3240 stamp option. The only difference between the Series 351 and Series 390 is the depth of the bottom nylon shoe, or the 'heel-to-toe' measurement, so compare both with your old hardware to see which matches best.
