Contractor from Michigan

Sep 27, 2024 9:58 am

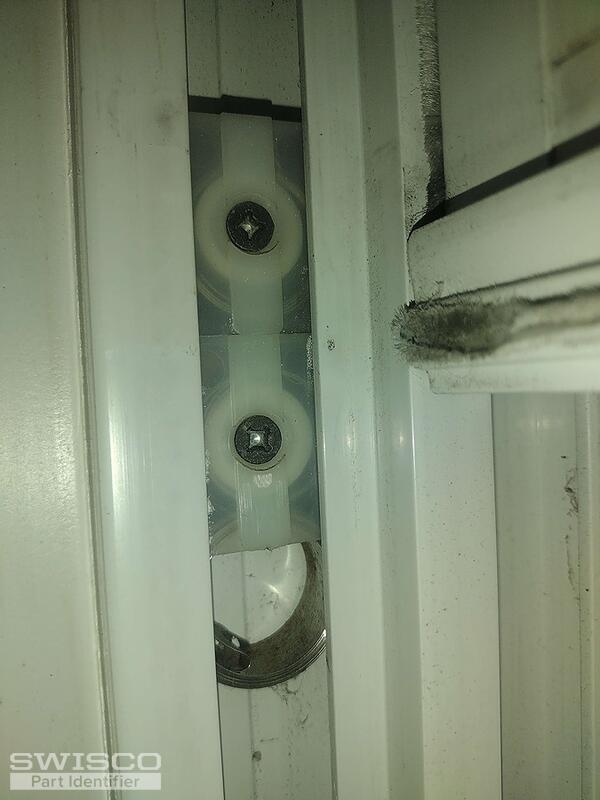

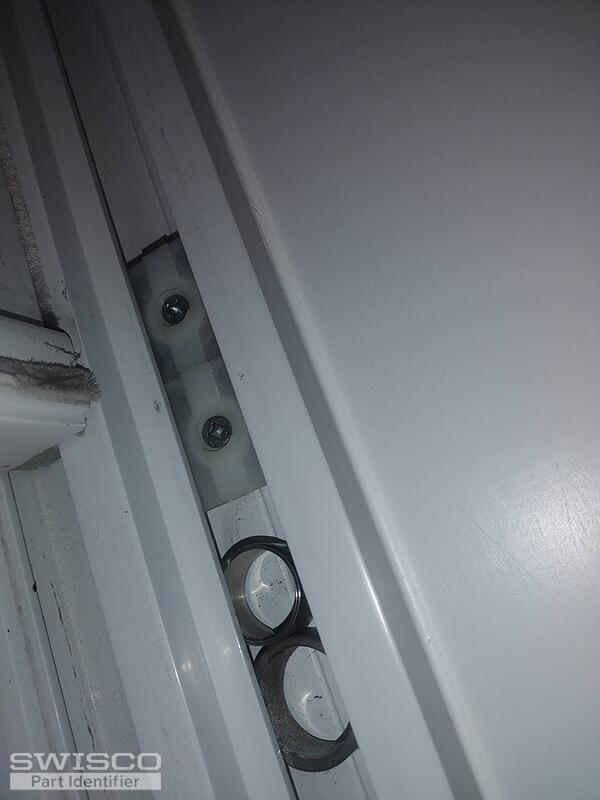

We could find no markings on the window, it will not stay up.
Attached are photos, we have a couple more if needed.
Trying to find replacement parts to repair one bedroom window.
Sorry there is not a lot of information, appreciate you looking at this for us.

5 user uploaded images

4 Replies

Casey from SWISCO

Oct 1, 2024 10:06 am

Hello,

We'd be happy to help but we'll need to see photos of your coil balance pivot shoe and an intact version of your pivot bar fully removed from the window to compare to our inventory. We've related a few videos on this page to help you through the process. Thank you!

Contractor from Michigan

Oct 1, 2024 11:08 am

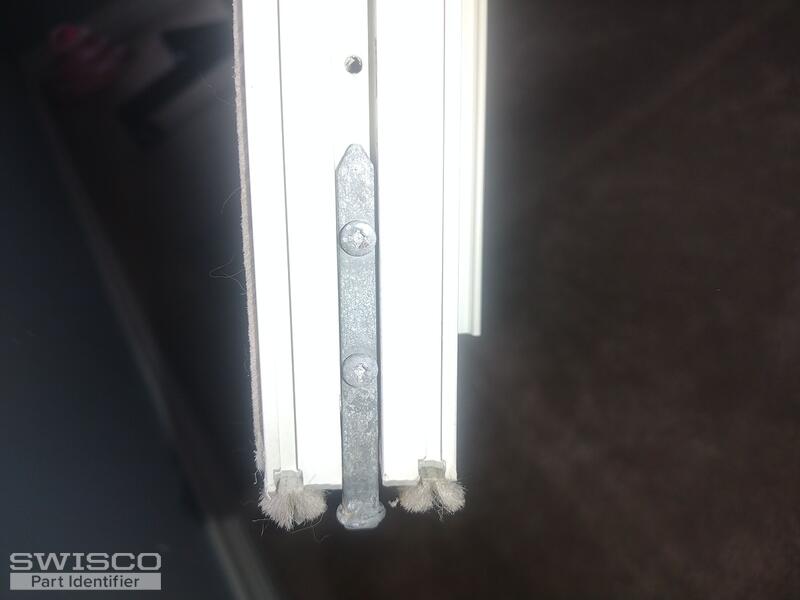

I have one more photo with the full pivot bar, have to get back to the property to get the others for you but thought id get this over. Thanks

1 user uploaded image

Casey from SWISCO

Oct 1, 2024 11:28 am

Thanks for getting back to us. I'd recommend starting by comparing the dimensions of the 26-030 and 26-266 to your part.

Alternate view of 26-030

Detail of 26-030

End view of the 26-226 pivot bar

As for the balance, we can't be sure with the parts still installed but the 15-177 would be a good place to start. Compare the style and dimensions below to your shoe removed from the window. If it's a match, see the S152 coil springs and relate support hardware used with this pivot shoe.

Alternate image for 15-177
